LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2239-R040-00PN0Z0A35HXLAMP CMU LED WHITE PRO9 |
4,066 | 0.00 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 1.08A | 85°C | 33.7V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2239-R040-00PN0Z0A30HXLAMP CMU LED WHITE PRO9 |
1,415 | 0.00 |
|
Datasheet |
XLamp® CMU2239 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 1.08A | 85°C | 33.7V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
SDW05F1C-K2/L1-BALED COB ZC40 COOL WHT SQU 5600K |
2,143 | 19.72 |
|
- |
ZC40 Z-Power COB | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5600K | - | Square | 5030lm (Typ) | 1A | 25°C | 37V | 136 lm/W | 1.28A | 70 | 120° | - | 28.00mm L x 28.00mm W | 2.30mm | - | Flat |
|
|
CXB3070-0000-00PN0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
1,879 | 0.00 |
|
- |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 1.9A | 85°C | 36V | - | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXB3070-0000-00PN0U0A27GLED COB XLAMP WARM WHT SQU 2700K |
4,149 | 0.00 |
|
- |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 1.9A | 85°C | 36V | - | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXB3070-0000-00PN0U0A50GLED COB XLAMP COOL WHT SQU 5000K |
2,107 | 0.00 |
|
- |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | - | 1.9A | 85°C | 36V | - | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|

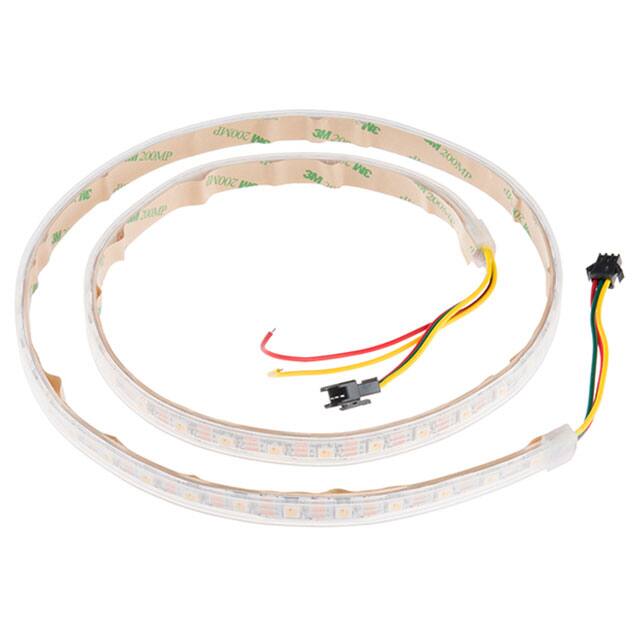

COM-13898LED MOD WM WHT LNR LGT STRIP |
1,090 | 0.00 |
|
Datasheet |
- | - | Active | LED Module | White, Warm | - | - | Linear Light Strip | - | - | - | - | - | - | - | 120° | - | - | - | - | - |
|
|
SI-B8T923B20WWLED MOD V SER GEN3 LNR 4000K |
2,127 | 19.71 |
|
Datasheet |
V Gen3 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 16000lm (14670lm ~ 17600lm) | 2.02A | 65°C | 45V | 176 lm/W | 2.02A | 80 | 118° | - | 1120.00mm L x 39.80mm W | 3.70mm | - | Flat |
|
|
LE A P2W 01-SYTX-23LED MOD OSRAM OSTAR AMBER RECT |
2,369 | 0.00 |
|
- |
OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 2700lm (Typ) | 12A | 25°C | 3.35V | 67 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
|
A007-EGBF27508SEOUL VIOSYS, 11MW, 150MA, 1UP O |
4,464 | 0.00 |
|
Datasheet |
LUXdrive™ | Bulk | Active | LED Engine | UltraViolet | - | 275nm | Starboard | 11mW | 100mA | 25°C | 5.6V | - | 200mA | - | 125° | - | 19.81mm L x 19.56mm W | 2.79mm | - | Flat |
|
CMA2550-0000-000N0H0AL7BLED COB XLAMP WARM WHT SQU 3000K |
2,211 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 6850lm (Typ) | 1.4A | 85°C | 34V | 144 lm/W | 3.3A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0A27HLED COB XLAMP WARM WHT SQU 2700K |
4,667 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4805lm (Typ) | 1.4A | 85°C | 34V | 101 lm/W | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
3,701 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5075lm (Typ) | 1.4A | 85°C | 34V | 107 lm/W | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
3,505 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5427lm (Typ) | 1.4A | 85°C | 34V | 114 lm/W | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0AL5ALED COB XLAMP NEUT WHT SQU 4000K |
1,421 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5576lm (Typ) | 1.4A | 85°C | 34V | 117 lm/W | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
3,591 | 16.66 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5075lm (Typ) | 1.4A | 85°C | 34V | 107 lm/W | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0Z0A50GLED COB XLAMP COOL WHT SQU 5000K |
4,691 | 0.00 |
|
- |
XLamp® CMA2550 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | - | 1.4A | 85°C | 34V | - | 3.3A | 95 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMA2550-0000-000N0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
3,682 | 0.00 |
|
Datasheet |
XLamp® CMA2550 | Bulk | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 5792lm (Typ) | 1.4A | 85°C | 34V | 122 lm/W | 2.16A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA3050-0000-000N0UW40E5LED COB XLAMP NEUT WHT SQ 4000K |
3,340 | 16.68 |
|
Datasheet |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5408lm (5225lm ~ 5590lm) | 1.4A | 85°C | 37V | 104 lm/W | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3050-0000-000N0UX20E3LED COB XLAMP COOL WHT SQ 5000K |
4,652 | 16.68 |
|
Datasheet |
XLamp® CXA3050 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
