LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3070-0000-000N0HAB0E3LED COB XLAMP COOL WHT SQ 5000K |
2,375 | 0.00 |
|
Datasheet |
XLamp® CXA3070 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 8750lm (8500lm ~ 9000lm) | 1.925A | 85°C | 38.5V | 118 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0HZ40E5LED COB XLAMP NEUT WHT SQ 4000K |
3,058 | 22.30 |
|
Datasheet |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.925A | 85°C | 38.5V | 111 lm/W | 2.8A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3070-0000-000N0UY20E3LED COB XLAMP COOL WHT SQ 5000K |
3,165 | 22.30 |
|
Datasheet |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 6670lm (6430lm ~ 6910lm) | 1.925A | 85°C | 38.5V | 90 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXA1850-0000-000N00W20E1LED COB XLAMP COOL WHT SQ 6500K |
1,650 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E2LED COB XLAMP COOL WHT SQ 5700K |
1,758 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E3LED COB XLAMP COOL WHT SQ 5000K |
2,841 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N00W20E5LED COB XLAMP NEUT WHT SQ 4000K |
3,932 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E1LED COB XLAMP COOL WHT SQ 6500K |
2,135 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E2LED COB XLAMP COOL WHT SQ 5700K |
1,879 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E3LED COB XLAMP COOL WHT SQ 5000K |
1,990 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|
|
CXA1850-0000-000N0HW20E5LED COB XLAMP NEUT WHT SQ 4000K |
3,313 | 0.00 |
|
Datasheet |
XLamp® CXA1850 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 5043lm (4860lm ~ 5225lm) | 1.4A | 85°C | 35V | 103 lm/W | 2.1A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.55mm | 12.00mm Dia | Flat |
|

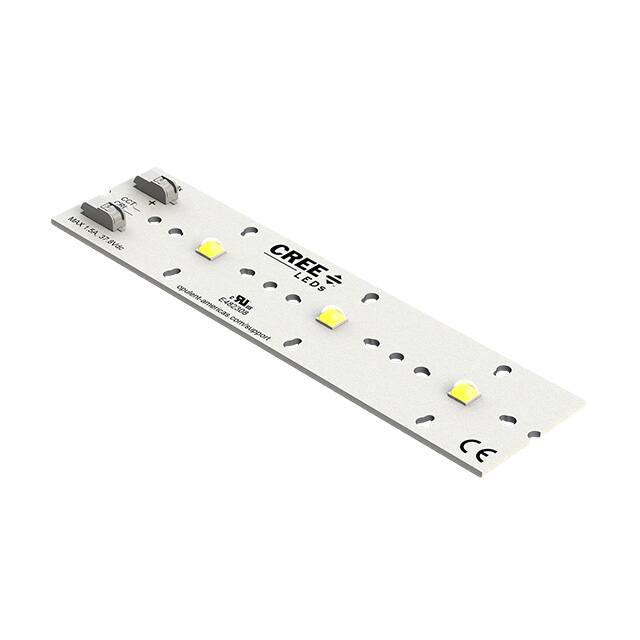

LSH1-03C22-4070-00LED MOD XHP50.2 WH LNR STR 4000K |
1,597 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-5070-00LED MOD XHP50.2 WH LNR STR 5000K |
1,046 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-5770-00LED MOD XHP50.2 LNR STRP 5700K |
3,441 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3360lm (Typ) | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 70 | - | - | 132.08mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-03C22-4080-00LED MOD XHP50.2 WH LNR STR 4000K |
1,066 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
|
LSH1-03C22-5080-00LED MOD XHP50.2 WH LNR STR 5000K |
2,007 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
|
LSH1-03C22-5780-00LED MOD XHP50.2 LNR STRP 5700K |
1,837 | 16.54 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3360lm | 700mA | 85°C | 33.6V | 143 lm/W | 1.5A | 80 | - | - | 132.08mm L x 32.99mm W | 1.52mm | - | Domed |
|
BXRC-27G1KH0-D-82VERO 29D WARM WHITE LED ARRAY |
2,167 | 0.00 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 9270lm (Typ) | 1.7A | 25°C | 36.4V | 150 lm/W | 5.5A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30H10K0-D-83VERO 29D WARM WHITE LED ARRAY |
4,321 | 0.00 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 8415lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-57E10K1-B-83VERO 29B COOL WHITE LED ARRAY |
2,108 | 0.00 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 13012lm (Typ) | 1.4A | 25°C | 50.2V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
