LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2258-R040-000P0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
4,147 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CXA3590-0000-000N00BD0E1LED COB XLAMP COOL WHT SQ 6500K |
3,626 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N00BD0E2LED COB XLAMP COOL WHT SQ 5700K |
4,688 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N00BD0E3LED COB XLAMP COOL WHT SQ 5000K |
3,563 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0HBB0E3LED COB XLAMP COOL WHT SQ 5000K |
2,751 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0HBB0E5LED COB XLAMP NEUT WHT SQ 4000K |
2,067 | 25.93 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CLU048-1212C4-403H5K2LED COB CLU048 NEUT WHT SQ 4000K |
2,152 | 28.93 |
|
Datasheet |
CLU048 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4732lm (Typ) | 1.08A | 85°C | 34.6V | 127 lm/W | 2.76A | 90 | - | - | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
A006-CG2H83035LED ENG LUXSTRP LNR STRP 3000K |
1,082 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | - | - | 25°C | - | - | 350mA | 80 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG2H84035LED ENG LUXSTRP LNR STRP 4000K |
2,210 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | - | - | 25°C | - | - | 350mA | 80 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG2H75070LED ENG LUXSTRP LNR STRP 5000K |
2,805 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Cool | 5000K | - | Linear Light Strip | - | - | 25°C | - | - | 700mA | 70 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG2H84070LED ENG LUXSTRP LNR STRP 4000K |
2,396 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Neutral | 4000K | - | Linear Light Strip | - | - | 25°C | - | - | 700mA | 80 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG2H75035LED ENG LUXSTRP LNR STRP 5000K |
2,563 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Cool | 5000K | - | Linear Light Strip | - | - | 25°C | - | - | 350mA | 70 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG2H83070LED ENG LUXSTRP LNR STRP 3000K |
4,630 | 25.98 |
|
- |
LuxStrip™ | Tray | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip | - | - | 25°C | - | - | 700mA | 80 (Typ) | - | - | 304.80mm L x 24.10mm W | 5.80mm | - | Flat |
|
|
A006-CG3076535LUXSTRIP II - XPG2 6500K, 75 CRI |
2,461 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A006-CG3076570LUXSTRIP II - XPG2 6500K, 75 CRI |
1,413 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LPH1-02C24-5780-00LED MODULE 5700K LINEAR |
2,686 | 31.69 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

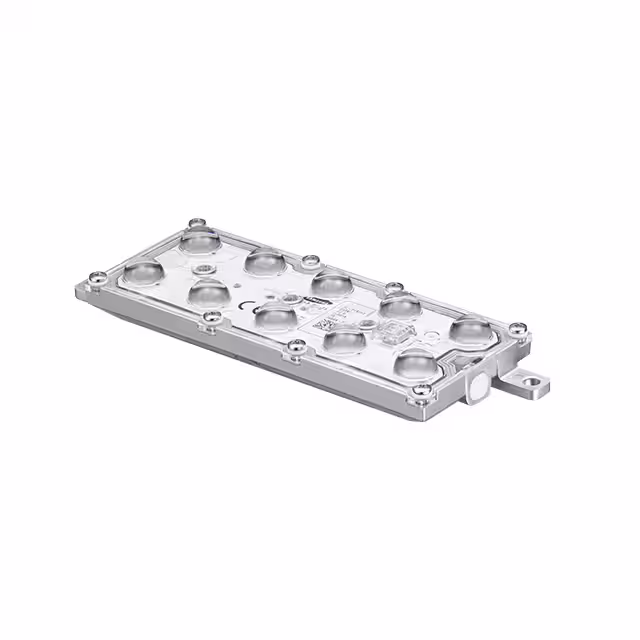

SL-P7T2F32MBKILED MOD NEUT WHT RECT 4000K |
4,191 | 26.50 |
|
Datasheet |
- | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 2100lm (Typ) | 700mA | 65°C | 30V | 100 lm/W | 700mA | 70 | - | - | 150.00mm L x 50.00mm W | 16.00mm | - | Domed |
|
|
SL-P7T2F385BKILED MOD NEUT WHT RECT 4000K |
3,896 | 26.50 |
|
Datasheet |
- | Tray | Not For New Designs | LED Module | White, Neutral | 4000K | - | Rectangle | 2100lm (Typ) | 700mA | 65°C | 30V | 100 lm/W | 700mA | 70 | 85° | - | 150.00mm L x 50.00mm W | 17.50mm | - | Domed |
|
|
SL-P7V2F32MBKILED MOD WARM WHT RECT 3000K |
1,906 | 26.50 |
|
Datasheet |
- | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2100lm (Typ) | 700mA | 65°C | 30V | 100 lm/W | 700mA | 70 | - | - | 150.00mm L x 50.00mm W | 16.00mm | - | Domed |
|
|
SL-P7V2F385BKILED MOD WARM WHT RECT 3000K |
4,846 | 26.50 |
|
Datasheet |
- | Tray | Not For New Designs | LED Module | White, Warm | 3000K | - | Rectangle | 2100lm (Typ) | 700mA | 65°C | 30V | 100 lm/W | 700mA | 70 | 85° | - | 150.00mm L x 50.00mm W | 17.50mm | - | Domed |
