LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

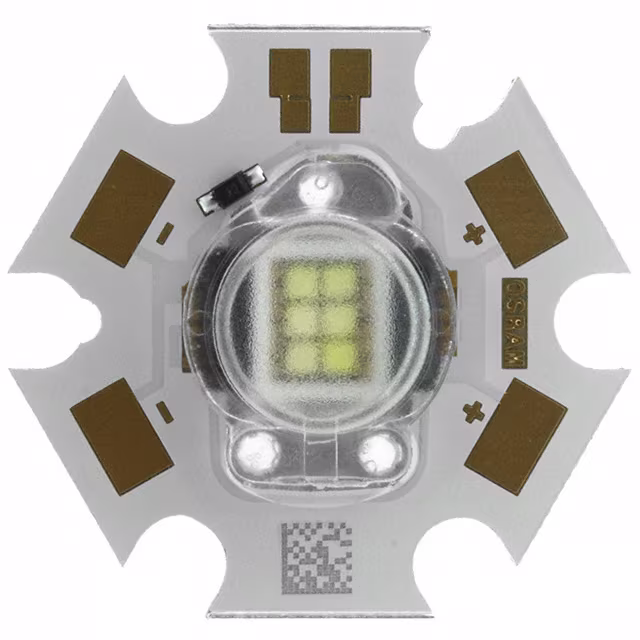

LE UW E3B-PZQZ-4C8FLED MOD OSTAR WHT STARBRD 6500K |
2,873 | 0.00 |
|
Datasheet |
Ostar | Tray | Obsolete | LED Module | White, Cool | 6500K | - | Starboard | 865lm (610lm ~ 1120lm) | 700mA | 25°C | 20.8V | 59 lm/W | 1A | - | 130° | - | 19.90mm Dia | 5.25mm | 2.00mm Dia | Flat |
|
BXRC-57E10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
4,775 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 14403lm (Typ) | 1.3A | 85°C | 66.7V | 169 lm/W | 4.75A | 80 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-50G10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
2,257 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 12962lm (Typ) | 1.3A | 85°C | 66.7V | 153 lm/W | 4.75A | 90 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-50C10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
3,958 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17321lm (Typ) | 1.3A | 85°C | 66.7V | 183 lm/W | 4.75A | 70 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-40C10K1-C-84-SEVERO SE 29C NEUTRAL WHITE LED AR |
4,023 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Round | 17227lm (Typ) | 1.3A | 25°C | 66.7V | 199 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.50mm | 29.10mm Dia | Flat |
|
|
BXRC-57C10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
3,240 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 16850lm (Typ) | 1.3A | 85°C | 66.7V | 178 lm/W | 4.75A | 70 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-65E10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
3,131 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 16191lm (Typ) | 1.3A | 85°C | 66.7V | 171 lm/W | 4.75A | 80 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-65C10K1-C-84-SEVERO SE 29C COOL WHITE LED ARRAY |
4,938 | 0.00 |
|
Datasheet |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 16850lm (Typ) | 1.3A | 85°C | 66.7V | 178 lm/W | 4.75A | 70 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
CXM-32-27-95-54-AC00-F2-3LED COB CXM-32 WARM WHT SQ 2700K |
2,295 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11950lm (Typ) | 2.64A | 85°C | 52.5V | 86 lm/W | 3.96A | 95 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-30-95-54-AC00-F2-3LED COB CXM-32 WM WHT SQ 3000K |
3,662 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 13520lm (Typ) | 2.64A | 85°C | 52.5V | 98 lm/W | 3.96A | 95 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-40-90-54-AC00-F2-3LED COB CXM-32 NEUT WHT SQ 4000K |
2,427 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 15830lm (Typ) | 2.64A | 85°C | 52.5V | 114 lm/W | 3.96A | 90 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-50-70-54-AC00-F2-3LED COB CXM-32 COOL WHT SQ 5000K |
4,150 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 19385lm (Typ) | 2.64A | 85°C | 52.5V | 140 lm/W | 3.96A | 70 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-50-80-54-AC00-F2-3LED COB CXM-32 COOL WHT SQ 5000K |
4,470 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 18820lm (Typ) | 2.64A | 85°C | 52.5V | 136 lm/W | 3.96A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-65-70-54-AC00-F2-3LED COB CXM-32 COOL WHT SQ 6500K |
4,899 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 19305lm (Typ) | 2.64A | 85°C | 52.5V | 139 lm/W | 3.96A | 70 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXM-32-65-80-54-AC00-F2-3LED COB CXM-32 COOL WHT SQ 6500K |
2,085 | 27.51 |
|
Datasheet |
CXM-32 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 18740lm (Typ) | 2.64A | 85°C | 52.5V | 135 lm/W | 3.96A | 80 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
CXM-27-30-80-54-AA30-F4-3LED COB CXM-27 GEN3 WH SQ 3000K |
2,729 | 20.84 |
|
Datasheet |
CXM-27 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12400lm (Typ) | 1.6A | 85°C | 51V | 152 lm/W | 3.2A | 80 | 120° | - | 31.50mm L x 31.50mm W | - | 26.50mm Dia | Flat |
|
CHM-27-27-95-36-AA00-F2-2LED COB CHM27 WARM WHT SQU 2700K |
2,392 | 27.71 |
|
Datasheet |
CHM-27 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 7140lm (Typ) | 2.7A | 85°C | 35V | 76 lm/W | 4A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
|
CHM-27-30-95-36-AA00-F2-2LED COB CHM27 WARM WHT SQU 3000K |
2,771 | 27.71 |
|
Datasheet |
CHM-27 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8085lm (Typ) | 2.7A | 85°C | 35V | 86 lm/W | 4A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
|
CXA3590-0000-000N00AB27FLED COB XLAMP WARM WHT SQU 2700K |
1,680 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N00AD30FLED COB XLAMP WARM WHT SQU 3000K |
3,090 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
