LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-17E10K0-C-74LED COB GEN7 DECOR WHT RND 1750K |
1,894 | 31.03 |
|
Datasheet |
Gen 7 Décor Series™ | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 10200lm (Typ) | 1.71A | 25°C | 69.4V | 86 lm/W | 3.42A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-25E10K0-C-74LED COB GEN7 DECOR WHT RND 2500K |
4,365 | 31.03 |
|
Datasheet |
Gen 7 Décor Series™ | Tray | Active | Chip On Board (COB) | White, Warm | 2500K 4-Step MacAdam Ellipse | - | Round | 16487lm (Typ) | 1.71A | 25°C | 69.4V | 139 lm/W | 3.42A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-27E10K0-C-72LED COB VERO 29 WM WHT RND 2700K |
3,144 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 16392lm (Typ) | 1.71A | 25°C | 69.4V | 153 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-27G10K0-C-72LED COB VERO 29 WM WHT RND 2700K |
1,624 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 13641lm (Typ) | 1.71A | 25°C | 69.4V | 128 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30A10K1-C-73LED COB DECOR WM WHT RND 3000K |
1,689 | 31.03 |
|
Datasheet |
Décor Series™ Class A Vero® 29 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12810lm (Typ) | 1.71A | 85°C | 68.4V | 110 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-C-72LED COB VERO 29 WM WHT RND 3000K |
2,573 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 18946lm (Typ) | 1.71A | 25°C | 69.4V | 160 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30G10K0-C-72LED COB VERO 29 WM WHT RND 3000K |
2,800 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 15768lm (Typ) | 1.71A | 25°C | 69.4V | 133 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35A10K1-C-73LED COB DECOR WM WH ROUND 3500K |
1,280 | 31.03 |
|
Datasheet |
Décor Series™ Class A Vero® 29 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13771lm (Typ) | 1.71A | 85°C | 68.4V | 118 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35E10K0-C-72LED COB VERO 29 WM WHT RND 3500K |
1,002 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 19557lm (Typ) | 1.71A | 25°C | 69.4V | 165 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35G10K0-C-72LED COB VERO 29 WM WHT RND 3500K |
4,171 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Round | 16257lm (Typ) | 1.71A | 25°C | 69.4V | 137 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-40A10K1-C-73LED COB DECOR WHT ROUND 4000K |
4,849 | 31.03 |
|
Datasheet |
Décor Series™ Class A Vero® 29 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 14731lm (Typ) | 1.71A | 85°C | 68.4V | 126 lm/W | 3.42A | 93 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-40E10K0-C-72LED COB VERO 29 WHT RND 4000K |
2,734 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 19680lm (Typ) | 1.71A | 25°C | 69.4V | 166 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-40G10K0-C-72LED COB VERO 29 WHT RND 4000K |
2,123 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 16868lm (Typ) | 1.71A | 25°C | 69.4V | 142 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-56G10K1-C-74LED COB GEN7 DECOR WHT RND 5600K |
1,412 | 31.03 |
|
Datasheet |
Gen 7 Décor Series™ | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 17554lm (Typ) | 1.71A | 25°C | 69.4V | 148 lm/W | 3.42A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|

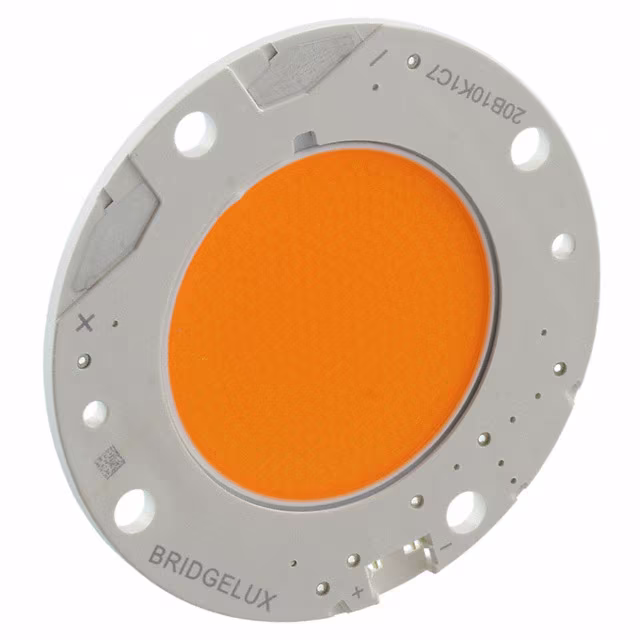

BXRC-20B10K1-C-73LED COB VERO 29 WM WHT RND 2000K |
3,690 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 17724lm (Typ) | 1.71A | 25°C | 69.4V | 149 lm/W | 3.42A | 65 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-50C10K1-C-73LED COB VERO 29 WHT RND 5000K |
1,218 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 21635lm (Typ) | 1.71A | 25°C | 69.4V | 182 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-50E10K1-C-73LED COB VERO 29 WHT RND 5000K |
2,017 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 20291lm (Typ) | 1.71A | 25°C | 69.4V | 171 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-50G10K1-C-73LED COB VERO 29 WHT RND 5000K |
1,435 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 17235lm (Typ) | 1.71A | 25°C | 69.4V | 145 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-57C10K1-C-73LED COB VERO 29 WHT RND 5700K |
4,123 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 20902lm (Typ) | 1.71A | 25°C | 69.4V | 176 lm/W | 3.42A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-57E10K1-C-73LED COB VERO 29 WHT RND 5700K |
3,311 | 31.03 |
|
Datasheet |
Gen 7 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 20056lm (Typ) | 1.71A | 25°C | 69.4V | 169 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
