LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU2287-0000-00PP0Z0A40HXLAMP CMU LED WHITE PRO9 |
1,034 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 12914lm (Typ) | 1.62A | 85°C | 50.5V | 158 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0Z0A27HXLAMP CMU LED WHITE PRO9 |
3,546 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 12421lm (Typ) | 1.62A | 85°C | 50.5V | 152 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-00PP0Z0A35HXLAMP CMU LED WHITE PRO9 |
1,629 | 0.00 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 13092lm (Typ) | 1.62A | 85°C | 50.5V | 160 lm/W | 4.32A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CXB2540-0000-000N0HW427HLED COB XLAMP WARM WHT SQU 2700K |
4,508 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 5408lm (5225lm ~ 5590lm) | 1.1A | 85°C | 34.8V | 141 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0HX235HLED COB XLAMP WARM WHT SQU 3500K |
4,653 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.1A | 85°C | 34.8V | 152 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0HX240HLED COB XLAMP NEUT WHT SQU 4000K |
4,741 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.1A | 85°C | 34.8V | 152 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0UV227HLED COB XLAMP WARM WHT SQU 2700K |
4,748 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4388lm (4230lm ~ 4545lm) | 1.1A | 85°C | 34.8V | 114 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0UV430HLED COB XLAMP WARM WHT SQU 3000K |
4,518 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 34.8V | 123 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0UW235HLED COB XLAMP WARM WHT SQU 3500K |
3,345 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 34.8V | 132 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0UW240HLED COB XLAMP NEUT WHT SQU 4000K |
2,173 | 24.79 |
|
Datasheet |
XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 34.8V | 132 lm/W | 2.1A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CMU2258-R040-00PP0Z0A40HXLAMP CMU LED WHITE PRO9 |
3,829 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-00PP0Z0A35HXLAMP CMU LED WHITE PRO9 |
3,626 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-00PP0Z0A30HXLAMP CMU LED WHITE PRO9 |
1,643 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2258-R040-00PP0Z0A27HXLAMP CMU LED WHITE PRO9 |
4,338 | 0.00 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 1.08A | 85°C | 50.5V | - | 2.88A | 95 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

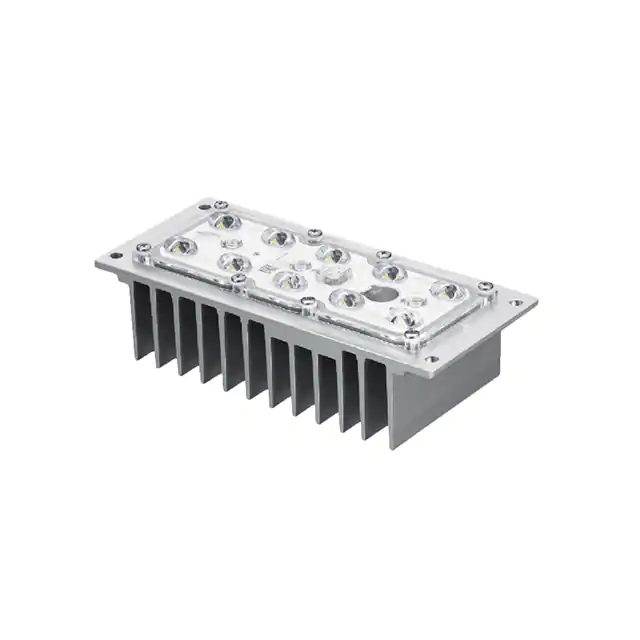

SL-PGR2W53LBGLLED MOD T-TYPE GEN2 RECT 5000K |
3,764 | 30.43 |
|
Datasheet |
T-Type Gen2 | Tray | Not For New Designs | LED Module | White, Cool | 5000K | - | Rectangle | 2500lm (Typ) | 700mA | 58°C | 30V | 119 lm/W | 1A | 75 | - | - | 126.40mm L x 50.00mm W | 1.20mm | - | Domed |
|
|
SL-PGR2W53MBGLLED MOD T-TYPE GEN2 RECT 5000K |
4,803 | 30.43 |
|
Datasheet |
T-Type Gen2 | Tray | Not For New Designs | LED Module | White, Cool | 5000K | - | Rectangle | 2500lm (Typ) | 700mA | 58°C | 30V | 119 lm/W | 1A | 75 | - | - | 126.40mm L x 50.00mm W | 1.20mm | - | Domed |
|
|
SL-PGR2W57MBGLLED MOD T-TYPE GEN2 RECT 5000K |
3,727 | 30.43 |
|
Datasheet |
T-Type Gen2 | Tray | Not For New Designs | LED Module | White, Cool | 5000K | - | Rectangle | 2500lm (Typ) | 700mA | 58°C | 30V | 119 lm/W | 1A | 75 | - | - | 126.40mm L x 50.00mm W | 1.20mm | - | Domed |
|

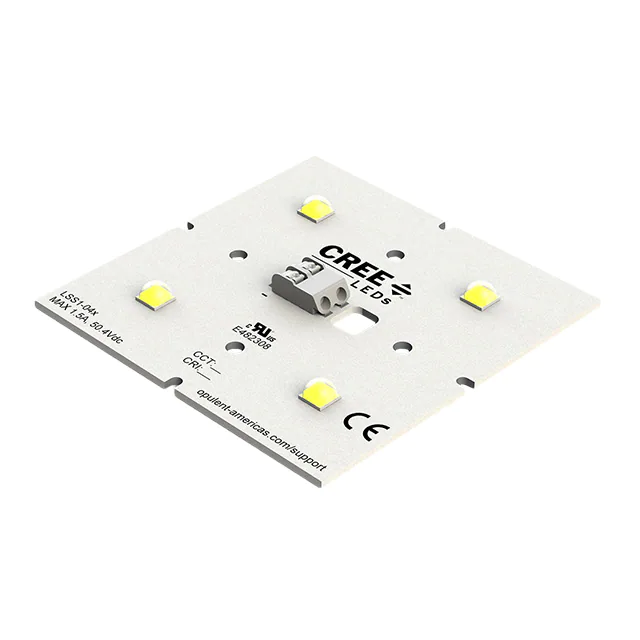

LSS1-04C22-5770-00LED MOD XHP50.2 CL WHT SQ 5700K |
3,224 | 22.23 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Square | 4480lm (Typ) | 700mA | 85°C | 44.8V | 143 lm/W | 1.5A | 70 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|
|
LSS1-04C22-5780-00LED MOD XHP50.2 CL WHT SQ 5700K |
3,942 | 22.23 |
|
Datasheet |
XHP50.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Square | 4480lm | 700mA | 85°C | 44.8V | 143 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - | Domed |
|
CMA3090-0000-000Q0Z0A40HLED COB XLAMP SQUARE |
1,037 | 32.00 |
|
Datasheet |
XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | - | - | - | Square | - | 1.8A | 85°C | 45V | - | 3.6A | - | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
