LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000NT0BD57FLED COB XLAMP COOL WHT SQU 5700K |
3,448 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0BD65FLED COB XLAMP COOL WHT SQU 6500K |
4,163 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NTHAD40FLED COB XLAMP NEUT WHT SQU 4000K |
1,468 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NTHBB50FLED COB XLAMP COOL WHT SQU 5000K |
1,853 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AB27FLED COB XLAMP WARM WHT SQU 2700K |
3,862 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 72V | 101 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AD30FLED COB XLAMP WARM WHT SQU 3000K |
4,753 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AD35FLED COB XLAMP WARM WHT SQU 3500K |
3,177 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0BB40FLED COB XLAMP NEUT WHT SQU 4000K |
4,629 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0BD50FLED COB XLAMP COOL WHT SQU 5000K |
4,612 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0BD57FLED COB XLAMP COOL WHT SQU 5700K |
4,176 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0BD65FLED COB XLAMP COOL WHT SQU 6500K |
2,044 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 70 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHAD40FLED COB XLAMP NEUT WHT SQU 4000K |
4,691 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHBB50FLED COB XLAMP COOL WHT SQU 5000K |
4,324 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHBB57FLED COB XLAMP COOL WHT SQU 5700K |
2,548 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHBB65FLED COB XLAMP COOL WHT SQU 6500K |
2,770 | 32.67 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
LZC-70GW00-0230LED MOD LZC WM WH STARBRD 3000K |
1,207 | 0.00 |
|
Datasheet |
LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1400lm (1085lm ~ 1696lm) | 700mA | 25°C | 38.8V | 52 lm/W | 1.2A | 95 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|

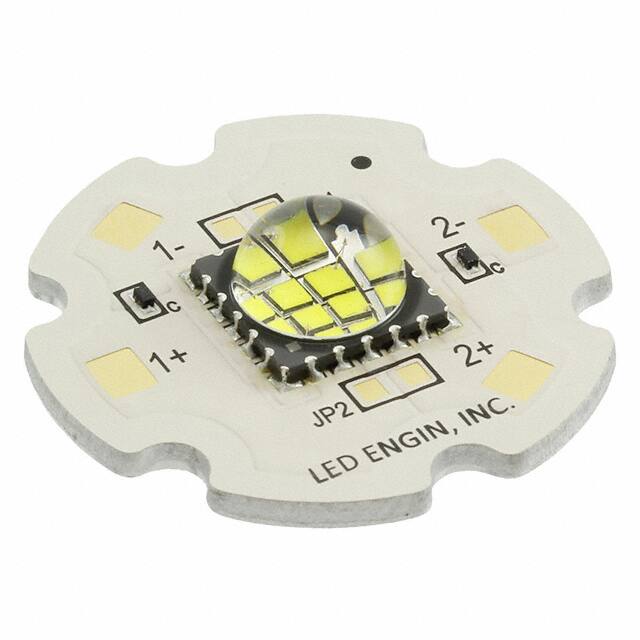

LZC-C0GW00-0230LED MOD LZC WM WH STARBRD 3000K |
4,722 | 0.00 |
|
Datasheet |
LZC | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 1400lm (1085lm ~ 1696lm) | 2 x 700mA | 25°C | 19.4V | 52 lm/W | - | 95 | 110° | - | 28.30mm Dia | 6.90mm | 8.20mm Dia | Domed |
|
|
CXA2590-0000-000R0HZ40E5LED COB XLAMP NEUT WHT SQ 4000K |
2,992 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 72V | 95 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YW427FLED COB XLAMP WARM WHT SQU 2700K |
3,796 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 5408lm (5225lm ~ 5590lm) | 1.2A | 85°C | 72V | 63 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA3590-0000-000R00AD27GLED COB XLAMP WARM WHT SQU 2700K |
1,002 | 0.00 |
|
Datasheet |
XLamp® CXA3590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
