LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA3590-0000-000NT0AD30GLED COB XLAMP WARM WHT SQ 3000K |
1,788 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NT0AD35GLED COB XLAMP WARM WHT SQU 3500K |
3,395 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NTHAD40GLED COB XLAMP NEUT WHT SQU 4000K |
2,611 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000NTHBB50GLED COB XLAMP COOL WHT SQU 5000K |
1,871 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 2.4A | 85°C | 36V | 113 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AB27GLED COB XLAMP WARM WHT SQU 2700K |
4,522 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 72V | 101 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AD30GLED COB XLAMP WARM WHT SQ 3000K |
3,997 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RT0AD35GLED COB XLAMP WARM WHT SQU 3500K |
1,422 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHAD40GLED COB XLAMP NEUT WHT SQU 4000K |
2,116 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTHBB50GLED COB XLAMP COOL WHT SQU 5000K |
1,318 | 34.34 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.2A | 85°C | 72V | 113 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

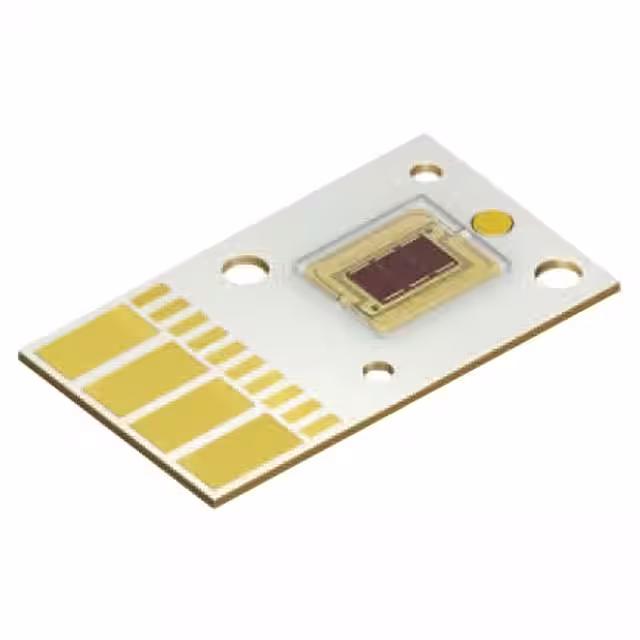

LE A P3W 01-TXUX-23LED MOD OSRAM OSTAR AMBER RECT |
3,241 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 4000lm (Typ) | 36A | 25°C | 3.35V | 33 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|
PT-39-B-L21-EPELED MOD PT-39 BLUE RECT |
3,254 | 40.92 |
|
Datasheet |
PT-39 | Tray | Not For New Designs | LED Module | Blue | - | 462nm | Rectangle | - | 9.8A | 40°C | 3.9V | - | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
CXB3070-0000-000N0UAB35HLED COB XLAMP WARM WHT SQU 3500K |
1,544 | 34.43 |
|
Datasheet |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.9A | 85°C | 36V | 128 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXB3070-0000-000N0UAD50GLED COB XLAMP COOL WHT SQU 5000K |
4,959 | 34.43 |
|
Datasheet |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.9A | 85°C | 36V | 135 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXB3070-0000-000N0UZ430HLED COB XLAMP WARM WHT SQU 3000K |
3,165 | 34.43 |
|
Datasheet |
XLamp® CXB3070 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.9A | 85°C | 36V | 112 lm/W | 2.8A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YW427GLED COB XLAMP WARM WHT SQU 2700K |
3,950 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5408lm (5225lm ~ 5590lm) | 1.2A | 85°C | 72V | 63 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
PT-39-G-L21-MPFLED MOD PT-39 GREEN RECT |
1,252 | 41.02 |
|
Datasheet |
PT-39 | Tray | Not For New Designs | LED Module | Green | - | 525nm | Rectangle | 1515lm (1250lm ~ 1780lm) | 9.8A | 40°C | 5.2V | 30 lm/W | 9.8A | - | - | With Connector | 26.50mm L x 16.00mm W | 6.30mm | 1.87mm L x 2.09mm W | Flat |
|
|
CXA3070-0000-000NT0BB40HLED COB XLAMP NEUT WHT SQU 4000K |
1,412 | 34.56 |
|
Datasheet |
XLamp® CXA3070 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9750lm (9500lm ~ 10000lm) | 1.9A | 85°C | 36.2V | 142 lm/W | 2.8A | 70 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CXA3590-0000-000N0UAB65FLED COB XLAMP COOL WHT SQU 6500K |
2,302 | 41.50 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0UAD0E1LED COB XLAMP COOL WHT SQ 6500K |
2,277 | 41.50 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000N0UAD0E2LED COB XLAMP COOL WHT SQ 5700K |
3,480 | 41.50 |
|
Datasheet |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
