LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2590-0000-000R00Z235HLED COB XLAMP WARM WHT SQU 3500K |
4,722 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 7668lm (7390lm ~ 7945lm) | 1.2A | 85°C | 69V | 93 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HZ440HLED COB XLAMP NEUT WHT SQU 4000K |
3,372 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 8223lm (7945lm ~ 8500lm) | 1.2A | 85°C | 69V | 99 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
LPS1-04C24-5070-00LED MOD XHP70.2 COOL WH SQ 5000K |
1,696 | 0.00 |
|
Datasheet |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 70 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|
|
LPS1-04C24-5080-00LED MOD XHP70.2 COOL WH SQ 5000K |
1,364 | 0.00 |
|
Datasheet |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 7320lm (Typ) | 1.05A | 85°C | 44.8V | 156 lm/W | 2.4A | 80 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|
AB-FO024AM-19712-XA1LED COB AMBER LNR STRIP |
4,733 | 0.00 |
|
Datasheet |
- | Bulk | Active | Chip On Board (COB) | Amber | - | 593nm (590nm ~ 595nm) | Linear Light Strip, Flexible | 636lm (Typ) | 500mA | - | 24V | 53 lm/W | - | - | 150° | IP65 | - | 2.20mm | - | Domed |
|

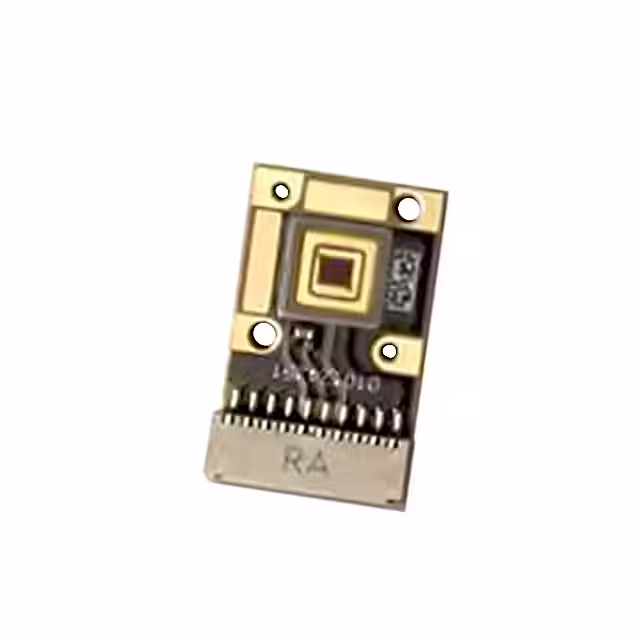

PT-54-RAX-L35-MPJLED MOD PT-54 AMBER RECT |
2,574 | 49.70 |
|
Datasheet |
PT-54 | Tray | Active | LED Module | Amber | - | 613nm | Rectangle | 1288lm (1055lm ~ 1520lm) | 13.5A | 40°C | 3V | 32 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
CXB3590-0000-000N0HCB27HLED COB XLAMP WARM WHT SQU 2700K |
1,670 | 41.79 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HCB30HLED COB XLAMP WARM WHT SQU 3000K |
3,628 | 41.79 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HCD40HLED COB XLAMP NEUT WHT SQU 4000K |
4,133 | 45.28 |
|
Datasheet |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CLU05Q-3618E1-402M2X2LED COB CLU05Q NEUT WHT SQ 4000K |
4,780 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 27708lm (Typ) | 1.62A | 85°C | 101.4V | 158 lm/W | 4.14A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-352H6X3LED COB CLU05Q WARM WHT SQ 3500K |
2,500 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 23965lm | 1.62A | 85°C | 101.4V | 136 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-402H5X3LED COB CLU05Q NEUT WHT SQ 4000K |
1,162 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 25582lm (Typ) | 1.62A | 85°C | 101.4V | 146 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-652M2X2LED COB CLU05Q COOL WHT SQ 6500K |
1,308 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 2-Step MacAdam Ellipse | - | Square | 27462lm | 1.62A | 85°C | 101.4V | 156 lm/W | 4.14A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-303L7X4LED COB CLU05Q WM WHT SQ 3000K |
2,058 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 29342lm (Typ) | 1.62A | 85°C | 101.4V | 167 lm/W | 4.14A | 70 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-502M2X2LED COB CLU05Q COOL WHT SQ 5000K |
1,365 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 28024lm | 1.62A | 85°C | 101.4V | 160 lm/W | 4.14A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-272H6X3LED COB CLU05Q WARM WHT SQ 2700K |
3,651 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 21225lm | 1.62A | 85°C | 101.4V | 121 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-572M2X2LED COB CLU05Q COOL WHT SQ 5700K |
1,161 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 2-Step MacAdam Ellipse | - | Square | 27743lm | 1.62A | 85°C | 101.4V | 158 lm/W | 4.14A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-272H5X3LED COB CLU05Q WARM WHT SQ 2700K |
1,850 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 21.892lm (Typ) | 1.62A | 85°C | 101.4V | 125 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-302H6X3LED COB CLU05Q WARM WHT SQ 3000K |
4,771 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 22859lm | 1.62A | 85°C | 101.4V | 130 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-3618E1-572H5X3LED COB CLU05Q COOL WHT SQ 5700K |
1,305 | 0.00 |
|
Datasheet |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 2-Step MacAdam Ellipse | - | Square | 25617lm | 1.62A | 85°C | 101.4V | 146 lm/W | 4.14A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
