LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CVM-27-31-95-36-AA00-F2-3LED COB CVM-27 WM WHT SQ 3050K |
4,522 | 55.50 |
|
Datasheet |
CVM-27 | Tray | Active | Chip On Board (COB) | White, Warm | 3050K | - | Square | 11500lm (Typ) | 4.2A | 100°C | 36V | 76 lm/W | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
|
CVM-27-56-95-36-AA00-F2-3LED COB CVM-27 COOL WH SQ 5600K |
1,095 | 55.50 |
|
Datasheet |
CVM-27 | Tray | Active | Chip On Board (COB) | White, Cool | 5600K | - | Square | 12500lm (Typ) | 4.2A | 100°C | 36V | 83 lm/W | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|
SBR-70-B-R75-KF300LED MOD SBR-70 BLUE STARBOARD |
2,907 | 55.50 |
|
Datasheet |
SBR-70 | Tray | Active | LED Module | Blue | - | 445nm | Starboard | 200lm (Typ) | 10.5A | 25°C | 3.8V | 5 lm/W | 10.5A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
SBR-90-R-R75-HK100LED MOD SBR-90 RED STARBOARD |
2,250 | 55.54 |
|
Datasheet |
SBR-90 | Tray | Active | LED Module | Red | - | 621nm (615nm ~ 627nm) | Starboard | 860lm (Typ) | 13.5A | 25°C | 2.7V | 24 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
|
SBR-90-R-R75-HM100LED MOD SBR-90 RED STARBOARD |
1,532 | 55.54 |
|
Datasheet |
SBR-90 | Tray | Active | LED Module | Red | - | 620nm | Starboard | 1350lm (Typ) | 13.5A | 25°C | 2.7V | 37 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
LZP-D0GW00-0028LED MOD LUXIGEN WH STARBRD 2850K |
3,908 | 0.00 |
|
Datasheet |
LuxiGen™ LZP | Tray | Obsolete | LED Module | White, Warm | 2850K 3-Step MacAdam Ellipse | - | Starboard | 2775lm (2350lm ~ 3200lm) | 4 x 700mA | 25°C | 19.4V | 51 lm/W | 1A | 98 | 110° | - | 28.30mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
CBT-90-B-L11-G100LED MOD CBT-90 BLUE RECT |
1,945 | 55.75 |
|
Datasheet |
CBT-90 | Tray | Active | LED Module | Blue | - | 458nm (445nm ~ 470nm) | Rectangle | - | 13.5A | 40°C | 3.5V | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
AB-GES-L56124W304T3LED ENG AB-GES WH LNR STRP 3000K |
1,003 | 42.49 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2000lm (Typ) | - | 25°C | 120VAC | - | - | 90 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
AB-GES-L56124W504T3LED ENG AB-GES WH LNR STRP 5000K |
2,181 | 42.49 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2100lm (Typ) | - | 25°C | 120VAC | - | - | 90 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|

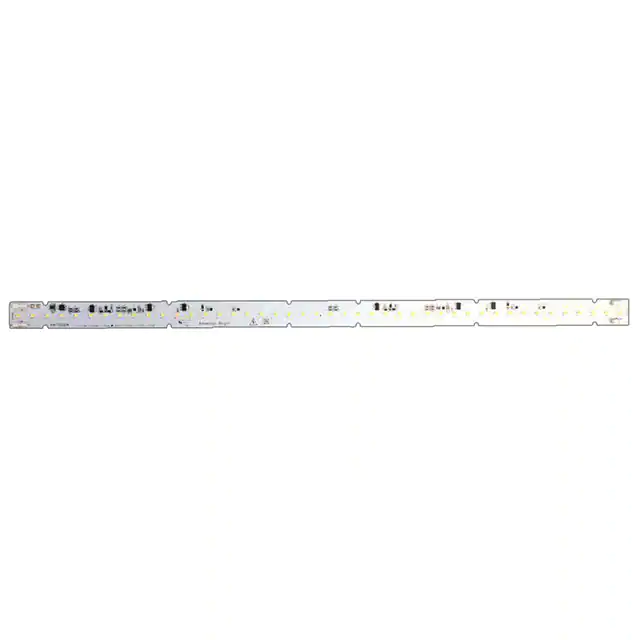

AB-GES-L56224W304T2LED ENG AB-GES WH LNR STRP 3000K |
2,897 | 36.69 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2400lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
AB-GES-L56224W404T2LED ENG AB-GES WH LNR STRP 4000K |
2,944 | 36.69 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2700lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
AB-GES-L56224W504T2LED ENG AB-GES WH LNR STRP 5000K |
1,026 | 36.69 |
|
Datasheet |
AB-GES | Tray | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2700lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
LZP-D0WW0R-0027LED MOD LZP WM WH STARBRD 2700K |
3,299 | 0.00 |
|
Datasheet |
LZP | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0WW0R-0035LED MOD LZP WM WH STARBRD 3500K |
4,417 | 0.00 |
|
Datasheet |
LZP | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|

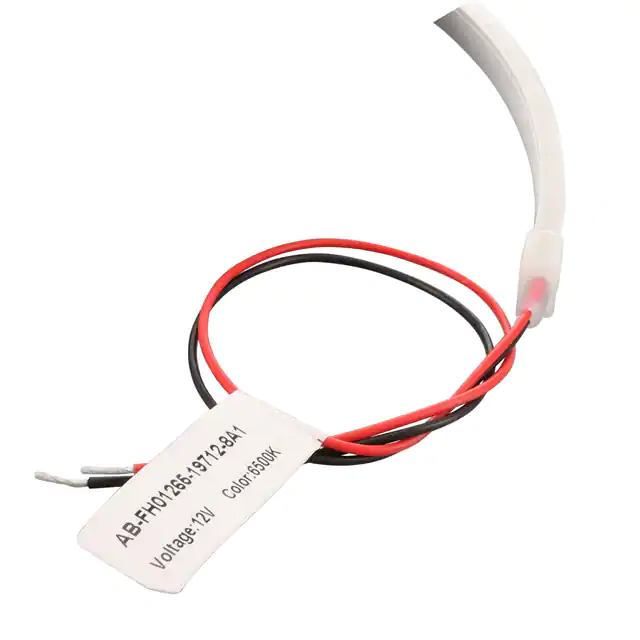

AB-FH01265-19712-8A1LED MOD AB-FH WH LNR STRP 6500K |
3,189 | 80.70 |
|
Datasheet |
AB-FH | Bag | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 360lm (Typ) | 660mA | 25°C | 12V | 45 lm/W | - | 80 | - | IP68 | 5000.00mm L x 12.00mm W | 6.00mm | - | Flat |
|
CXA2590-0000-000R00AB30FLED COB XLAMP WARM WHT SQU 3000K |
1,695 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | - | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX440FLED COB XLAMP NEUT WHT SQU 4000K |
1,907 | 0.00 |
|
Datasheet |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX450FLED COB XLAMP COOL WHT SQU 5000K |
3,450 | 0.00 |
|
Datasheet |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YY227FLED COB XLAMP WARM WHT SQU 2700K |
2,531 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 69V | 81 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YY230FLED COB XLAMP WARM WHT SQU 3000K |
1,304 | 0.00 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 69V | 81 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
