LED COBs, Engines, Modules, Strips

Mfr. Part #	Availability	Quantity	Datasheet	Series	Packaging	Product Status	Type	Color	CCT (K)	Wavelength	Configuration	Luminous Flux @ Current/Temperature	Current - Test	Temperature - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max	CRI (Color Rendering Index)	Viewing Angle	Features	Size / Dimension	Height	Light Emitting Surface (LES)	Lens Type
SST-90-W57S-F11-N3200 LED COB SST-90 COOL WH SQ 5700K Luminus Devices Inc.	4,649	RFQ	Datasheet	SST-90	Tray	Obsolete	Chip On Board (COB)	White, Cool	5700K	-	Square	975lm (950lm ~ 1000lm)	3.15A	25°C	3.25V	95 lm/W	9A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia	Domed

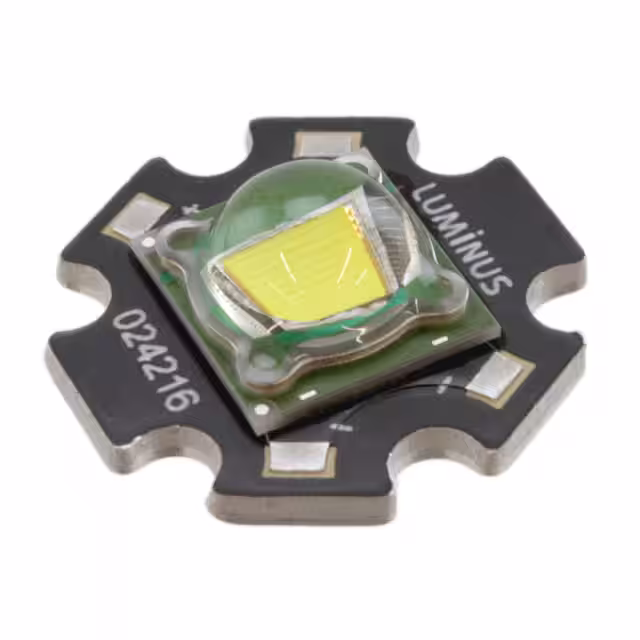

SSR-90-W65S-R11-GN100 LED MOD SSR-90 WH STARBRD 6500K Luminus Devices Inc.	1,737	RFQ	Datasheet	SSR-90	Tray	Obsolete	LED Module	White, Cool	6500K	-	Starboard	-	3.15A	-	3.25V	-	9A	70	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia	Domed
SSR-90-W65S-R11-N2100 LED MOD SSR-90 WH STARBRD 6500K Luminus Devices Inc.	1,738	RFQ	Datasheet	SSR-90	Tray	Obsolete	LED Module	White, Cool	6500K	-	Starboard	925lm (900lm ~ 950lm)	3.15A	25°C	3.25V	90 lm/W	9A	70	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia	Domed
CBT-120-B-C11-KM301 LED MOD CBT-120 BLUE SQUARE Luminus Devices Inc.	2,479	RFQ	Datasheet	CBT-120	Tray	Obsolete	LED Module	Blue	-	463nm (455nm ~ 470nm)	Square	-	18A	-	4.1V	-	36A	-	-	With Connector	28.00mm L x 42.00mm W	5.61mm	2.60mm L x 4.63mm W	Flat

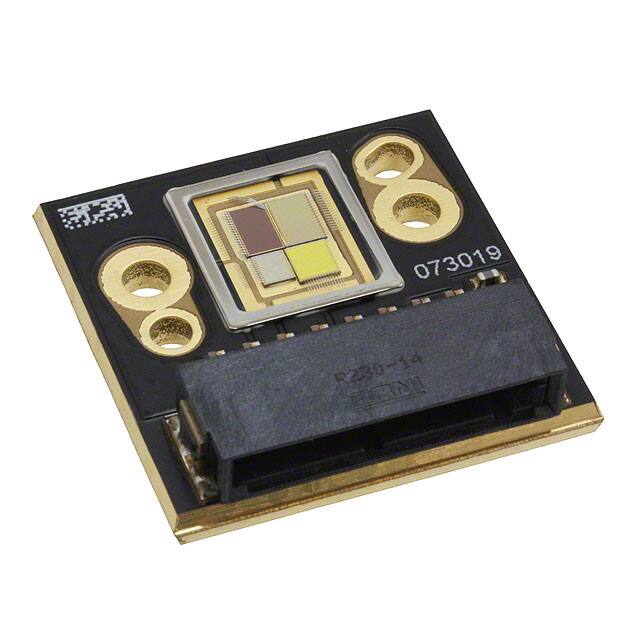

CBM-380-RGBW-D11-QF100 LED MOD CBM-380 RGBW SQU 6500K Luminus Devices Inc.	2,184	RFQ	Datasheet	CBM-380	Tray	Obsolete	LED Module	Red, Green, Blue, White - Cool	6500K	624nm Red, 533nm Green, 464nm Blue	Square	-	12A Red, 12A Green, 8.1A Blue, 9A White	-	-	-	12A Red, 12A Green, 8.1A Blue, 9A White	-	-	With Connector	-	-	-	Flat
CBM-380-RGBW-D11-QG101 LED MOD CBM-380 RGBW SQU 6500K Luminus Devices Inc.	2,484	RFQ	Datasheet	CBM-380	Tray	Obsolete	LED Module	Red, Green, Blue, White - Cool	6500K	624nm Red, 533nm Green, 464nm Blue	Square	-	12A Red, 12A Green, 8.1A Blue, 9A White	-	-	-	12A Red, 12A Green, 8.1A Blue, 9A White	-	-	With Connector	-	-	-	Flat
CST-90-W30M-C12-GK700 LED MOD CST-90 WM WH RECT 3000K Luminus Devices Inc.	4,869	RFQ	Datasheet	CST-90	Tray	Obsolete	LED Module	White, Warm	3000K	-	Rectangle	550lm (500lm ~ 600lm)	3.15A	40°C	3.25V	54 lm/W	13.5A	83 (Typ)	95°	With Connector	28.00mm L x 42.00mm W	5.61mm	3.00mm L x 3.00mm W	Domed
CBT-120-G-C11-JM201 LED MOD CBT-120 GREEN SQUARE Luminus Devices Inc.	3,893	RFQ	Datasheet	CBT-120	Tray	Obsolete	LED Module	Green	-	530nm (520nm ~ 540nm)	Square	-	18A	-	4.3V	-	36A	-	-	With Connector	28.00mm L x 42.00mm W	5.61mm	2.60mm L x 4.63mm W	Flat
CBT-40-B-C21-KF301 LED MOD CBT-40 BLUE RECT Luminus Devices Inc.	3,858	RFQ	Datasheet	CBT-40	Tray	Obsolete	LED Module	Blue	-	463nm (455nm ~ 470nm)	Rectangle	110lm (Typ)	5.9A	40°C	4.2V	4 lm/W	12A	-	-	With Connector	26.50mm L x 16.00mm W	6.30mm	1.87mm L x 2.09mm W	Flat
CBT-90-R-C11-HK101 LED MOD CBT-90 RED RECT Luminus Devices Inc.	2,609	RFQ	Datasheet	CBT-90	Tray	Obsolete	LED Module	Red	-	628nm	Rectangle	-	13.5A	-	2.5V	-	18A	-	-	With Connector	28.00mm L x 26.75mm W	4.08mm	3.00mm L x 3.00mm W	Flat
SSR-90-G-R11-JG200 LED MOD SSR-90 GREEN STARBOARD Luminus Devices Inc.	4,475	RFQ	Datasheet	SSR-90	Tray	Obsolete	LED Module	Green	-	537nm	Starboard	-	3.15A	-	3.4V	-	27A	-	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia	Domed
SSR-90-R-R11-HH100 LED MOD SSR-90 RED STARBOARD Luminus Devices Inc.	1,549	RFQ	Datasheet	SSR-90	Tray	Obsolete	LED Module	Red	-	624nm	Starboard	-	3.15A	-	2V	-	27A	-	100°	-	19.90mm L x 19.90mm W	7.10mm	8.00mm Dia	Domed

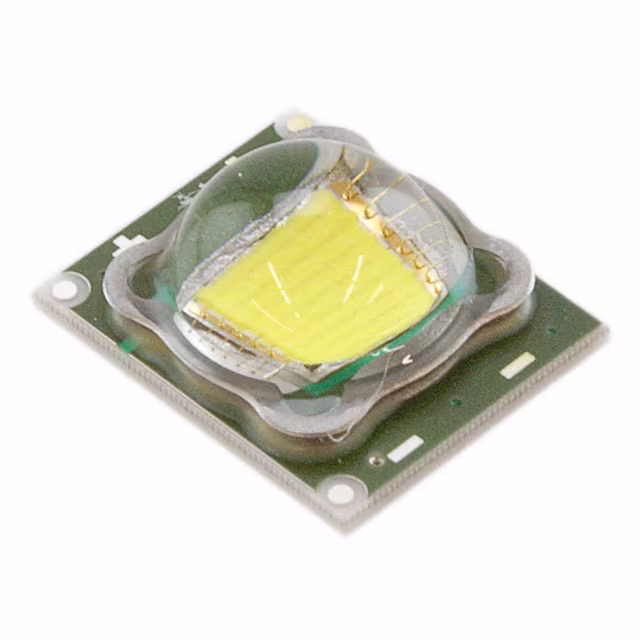

SST-50-W65S-F21-GK100 LED COB SST-50 COOL WH SQ 6500K Luminus Devices Inc.	1,318	RFQ	Datasheet	SST-50	Tray	Obsolete	Chip On Board (COB)	White, Cool	6500K	-	Square	-	1.75A	-	3.2V	-	5A	70	100°	-	7.30mm L x 9.00mm W	4.30mm	5.60mm Dia	Domed
CST-90-W65S-C12-GN102 LED MOD CST-90 CL WH RECT 6500K Luminus Devices Inc.	4,946	RFQ	Datasheet	CST-90	Tray	Obsolete	LED Module	White, Cool	6500K	-	Rectangle	925lm (850lm ~ 1000lm)	3.15A	40°C	3.25V	90 lm/W	13.5A	70 (Typ)	95°	With Connector	28.00mm L x 42.00mm W	5.61mm	3.00mm L x 3.00mm W	Domed
CST-90-W65S-C13-GN100 LED MOD CST-90 COOL WH SQ 6500K Luminus Devices Inc.	3,777	RFQ	Datasheet	CST-90	Tray	Obsolete	LED Module	White, Cool	6500K	-	Square	925lm (850lm ~ 1000lm)	3.15A	25°C	3.25V	90 lm/W	13.5A	70 (Typ)	-	With Connector	42.00mm L x 28.00mm W	7.90mm	8.00mm Dia	Domed
SST-90-B-F11-KG300 LED COB SST-90 BLUE SQUARE Luminus Devices Inc.	3,046	RFQ	Datasheet	SST-90	Tray	Obsolete	Chip On Board (COB)	Blue	-	465nm	Square	180lm (Typ)	3.15A	25°C	3.4V	17 lm/W	27A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia	Domed
SBR-160-RGBW-R41-RD100 LED MOD SBR-160 RGBW SQU 6500K Luminus Devices Inc.	2,902	RFQ	Datasheet	SBR-160	Tray	Obsolete	LED Module	Red, Green, Blue, White - Cool (RGBW)	6500K	623nm Red, 530nm Green, 458nm Blue	Square	-	4A Red, 4A Green, 4A Blue, 4A White	25°C	3V Red, 4.6V Green, 3.8V Blue, 3.8V White	-	4A Red, 4A Green, 4A Blue, 4A White	-	-	With Connector	36.00mm L x 36.00mm W	8.72mm	-	Flat

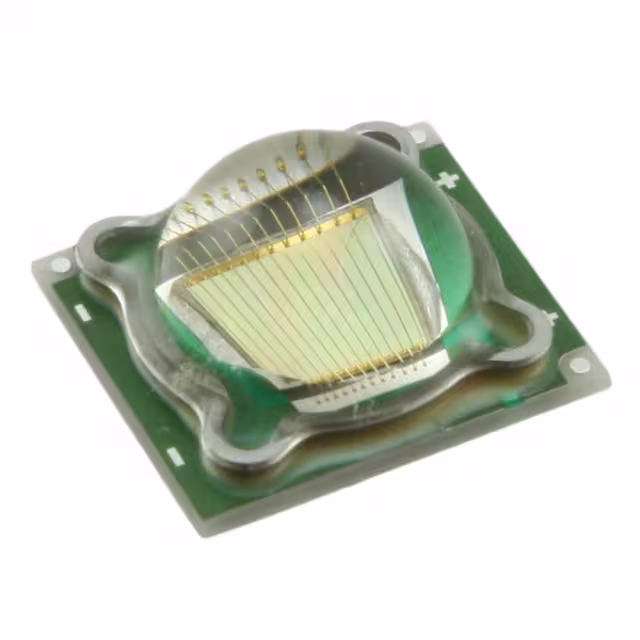

SST-90-G-F11-JG201 LED COB SST-90 GREEN SQUARE Luminus Devices Inc.	4,370	RFQ	Datasheet	SST-90	Tray	Obsolete	Chip On Board (COB)	Green	-	537nm	Square	855lm (Typ)	3.15A	25°C	3.4V	80 lm/W	27A	70	100°	-	11.00mm L x 10.00mm W	5.40mm	8.00mm Dia	Domed
CBT-120-R-C11-HM101 LED MOD CBT-120 RED SQUARE Luminus Devices Inc.	4,145	RFQ	Datasheet	CBT-120	Tray	Discontinued at Digi-Key	LED Module	Red	-	621nm (619nm ~ 623nm)	Square	-	18A	-	2.3V	-	36A	-	-	With Connector	28.00mm L x 42.00mm W	5.61mm	2.60mm L x 4.63mm W	Flat
CBT-40-G-C21-JF201 LED MOD CBT-40 GREEN RECT Luminus Devices Inc.	2,614	RFQ	Datasheet	CBT-40	Tray	Obsolete	LED Module	Green	-	528nm (520nm ~ 535nm)	Rectangle	650lm (Typ)	5.9A	40°C	4.5V	24 lm/W	12A	-	-	With Connector	26.50mm L x 16.00mm W	6.30mm	1.87mm L x 2.09mm W	Flat

Total 32298 Record«Prev 1... 1443 1444 1445 144614471448 1449 1450...1615 Next»
