LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU03Q-1208E1-302M2X2LED COB CLU03Q WARM WHT SQ 3000K |
4,612 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4150lm (Typ) | 720mA | 85°C | 33.8V | 158 lm/W | 1.84A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CMB1825-R096-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
1,057 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3698lm | 700mA | 85°C | 34V | 155 lm/W | 1.8A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
2,871 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3731lm | 700mA | 85°C | 34V | 157 lm/W | 1.8A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
2,184 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3491lm | 700mA | 85°C | 34V | 147 lm/W | 1.8A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
BXRC-57C2001-C-84-SELED COB VERO SE 13C WH RND 5700K |
100 | 10.90 |
|
Datasheet |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 3075lm (Typ) | 500mA | 25°C | 33.4V | 184 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|
|
BXRC-65E2001-C-84-SELED COB VERO SE 13C WH RND 6500K |
4,769 | 10.90 |
|
Datasheet |
Gen 8 Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 2955lm (Typ) | 500mA | 25°C | 33.4V | 177 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia | Flat |
|

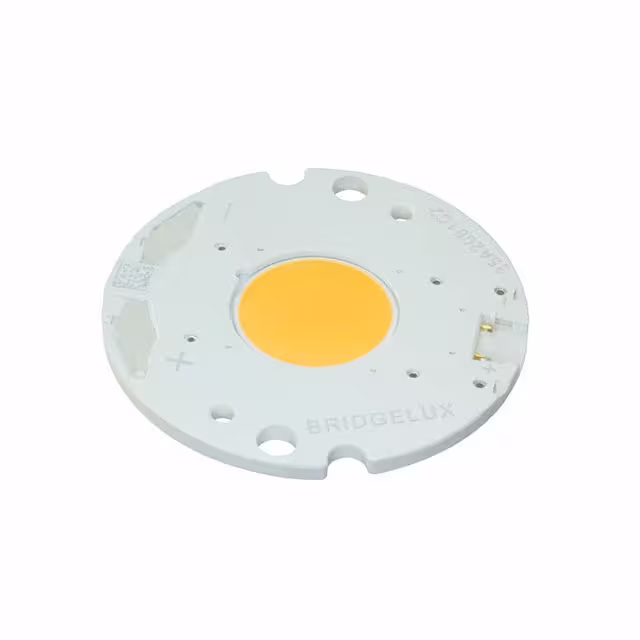

BXRC-35A2001-C-23LED COB DECOR WM WH ROUND 3500K |
1,675 | 7.68 |
|
Datasheet |
Décor Series™ Class A Vero® 13 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 1461lm (Typ) | 500mA | 85°C | 31.5V | 93 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
CXA1310-0000-000N00J230HLED COB XLAMP WARM WHT SQU 3000K |
3,598 | 7.68 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
BXRC-57E2001-C-83LED COB VERO 13C WHT ROUND 5700K |
100 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 2980lm (Typ) | 500mA | 25°C | 33.4V | 178 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
|
BXRC-30C2001-C-83LED COB VERO 13C WHT RND 3000K |
2,963 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3120lm (Typ) | 500mA | 25°C | 33.4V | 187 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
|
BXRC-65E2001-C-83LED COB VERO 13C WHT ROUND 6500K |
4,112 | 11.39 |
|
Datasheet |
Gen 8 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 3015lm (Typ) | 500mA | 25°C | 33.4V | 181 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia | Flat |
|
|
CXB1816-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,551 | 10.00 |
|
Datasheet |
XLamp® CXB1816 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2124lm (Typ) | 450mA | 85°C | 35V | 135 lm/W | 900mA | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1816-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
4,925 | 10.00 |
|
Datasheet |
XLamp® CXB1816 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2182lm (Typ) | 450mA | 85°C | 35V | 139 lm/W | 900mA | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
12052-A-278-2835LED MOD 12052-A LNR STRP 2700K |
100 | 0.00 |
|
Datasheet |
12052-A | Tape & Box (TB) | Active | LED Module | White, Warm | 2700K | - | Linear Light Strip | 7565lm (Typ) | 1.4A | - | 31.79V | 170 lm/W | 2A | 80 | - | - | 1117.60mm L x 20.83mm W | - | - | Flat |
|
|
12052-A-279-2835LED MOD 12052-A LNR STRP 2700K |
2,165 | 0.00 |
|
Datasheet |
12052-A | Tape & Box (TB) | Active | LED Module | White, Warm | 2700K | - | Linear Light Strip | 6417lm (Typ) | 1.4A | - | 31.79V | 144 lm/W | 2A | 90 | - | - | 1117.60mm L x 20.83mm W | - | - | Flat |
|
|
12052-A-408-2835LED MOD 12052-A LNR STRP 4000K |
2,015 | 0.00 |
|
Datasheet |
12052-A | Tape & Box (TB) | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 8139lm (Typ) | 1.4A | - | 31.79V | 183 lm/W | 2A | 80 | - | - | 1117.60mm L x 20.83mm W | - | - | Flat |
|
|
CLU03Q-1205E1-352M2X2LED COB CLU03Q WARM WHT SQ 3500K |
2,049 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2511lm (Typ) | 450mA | 85°C | 33.8V | 165 lm/W | 1.15A | 80 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1205E1-403L7X4LED COB CLU03Q NEUT WHT SQ 4000K |
3,433 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2729lm (Typ) | 450mA | 85°C | 33.8V | 179 lm/W | 1.15A | 70 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
CLU03Q-1205E1-402H5X3LED COB CLU03Q NEUT WHT SQ 4000K |
3,646 | 0.00 |
|
Datasheet |
CLU03Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2281lm (Typ) | 450mA | 85°C | 33.8V | 150 lm/W | 1.15A | 90 | - | With Connector | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
|
SI-B8U081B00WWLED MOD WARM WHT LNR STRIP 3500K |
4,335 | 11.66 |
|
Datasheet |
- | Bulk | Last Time Buy | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1610lm (Typ) | 220mA | 40°C | 40.8V | 179 lm/W | 600mA | 80 | 160° | - | 1100.00mm L x 13.00mm W | 7.00mm | - | Flat |
