LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50G2000-C-04LED COB VERO 13 ARRAY RND 5000K |
4,803 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 1890lm (Typ) | 500mA | 25°C | 32.5V | 116 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
BXRC-56G4000-F-04LED COB DECOR CL WH ROUND 5600K |
1,271 | 0.00 |
|
Datasheet |
Décor Series™ Speciality Vero® 18 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 3515lm (Typ) | 1.05A | 25°C | 29.5V | 113 lm/W | 2.1A | 90 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-40G10K0-L-03LED COB VERO 29 ARRAY RND 4000K |
2,944 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38.6V | 112 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-50E10K0-L-04LED COB VERO 29 ARRAY RND 5000K |
1,908 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 10420lm (Typ) | 2.1A | 25°C | 38.6V | 128 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-50G10K0-L-04LED COB VERO 29 ARRAY RND 5000K |
3,709 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 9450lm (Typ) | 2.1A | 25°C | 38.6V | 117 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-56G10K0-L-04LED COB VERO 29 ARRAY RND 5600K |
3,822 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5600K 4-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38.6V | 112 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
CBT-140-WDH-C15-QA220LED MOD CBT-140 CL WHT SQ 5600K |
2,985 | 0.00 |
|
Datasheet |
CBT-140 | Tray | Obsolete | LED Module | White, Cool | 5600K | - | Square | 2180lm (2100lm ~ 2260lm) | 21A | 85°C | 3.6V | 29 lm/W | - | 92 | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
CBT-90-R-C11-HK102LED MOD CBT-90 RED RECT |
2,458 | 0.00 |
|
Datasheet |
CBT-90 | Tray | Obsolete | LED Module | Red | - | 613nm | Rectangle | - | 13.5A | - | 2.5V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-90-R-C11-HM100LED MOD CBT-90 RED RECT |
2,334 | 0.00 |
|
Datasheet |
CBT-90 | Tray | Obsolete | LED Module | Red | - | 613nm | Rectangle | - | 13.5A | - | 2.5V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

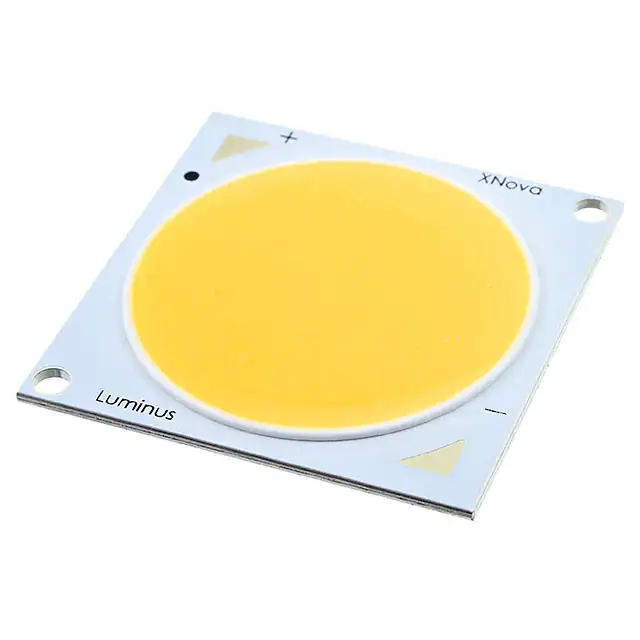

CXM-27-27-90-36-AA00-F1-3LED COB CXM-27 WARM WHT SQ 2700K |
3,297 | 0.00 |
|
Datasheet |
CXM-27 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5195lm (5060lm ~ 5330lm) | 1.8A | 85°C | 35V | 82 lm/W | 2.7A | 90 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia | Flat |
|

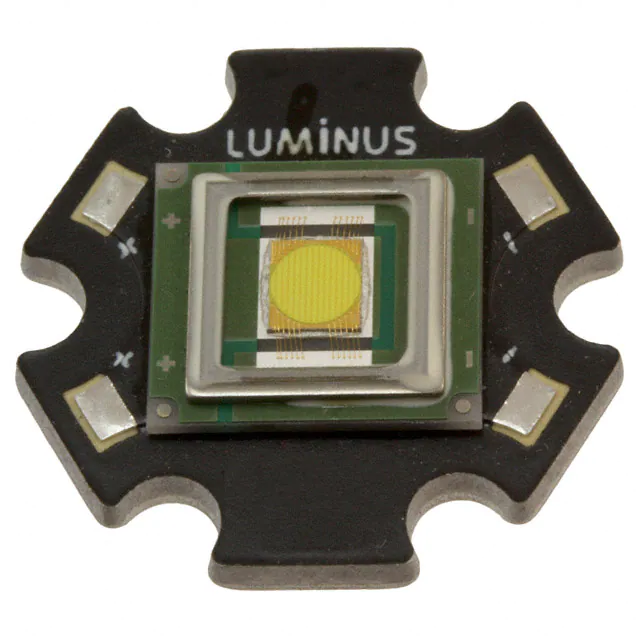

SBR-70-WDH-R75-LA220LED COB SBT-70 WH STARBRD 6020K |
4,484 | 0.00 |
|
Datasheet |
SBT-70 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5310K ~ 6020K | - | Starboard | 1245lm (1200lm ~ 1290lm) | 10.5A | 25°C | 3.7V | 32 lm/W | 10.5A | 75 | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
|
SBR-70-WTH-R75-HB720LED COB SBT-70 WH STARBRD 3190K |
3,529 | 0.00 |
|
Datasheet |
SBT-70 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2725K ~ 3190K | - | Starboard | 870lm (840lm ~ 900lm) | 10.5A | 25°C | 3.7V | 22 lm/W | 10.5A | 75 | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|

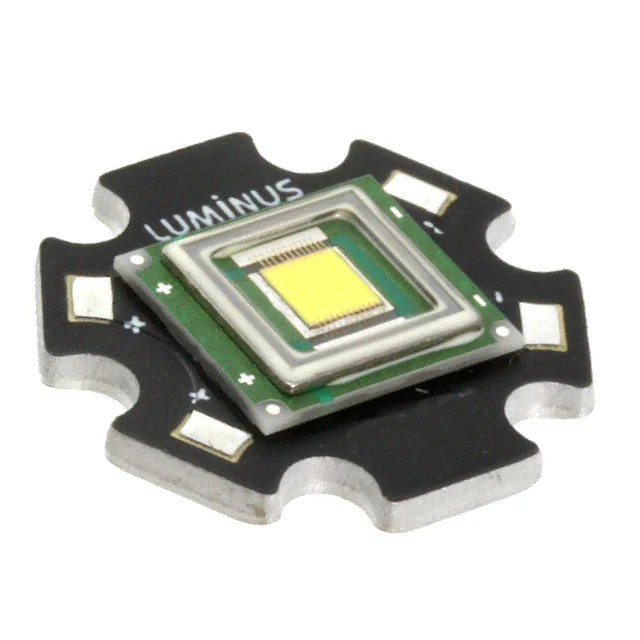

SBR-90-W65S-R71-NB100LED COB SBT-70 WH STARBRD 6500K |
3,196 | 0.00 |
|
Datasheet |
SBT-70 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Starboard | 1770lm (1710lm ~ 1830lm) | 9A | 25°C | 3.5V | 56 lm/W | 9A | 70 | - | - | 19.90mm Dia | 3.50mm | 3.00mm Dia | Flat |
|
|
SBR-90-W65S-R71-NB101LED COB SBT-70 WH STARBRD 6500K |
4,391 | 0.00 |
|
Datasheet |
SBT-70 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Starboard | 1770lm (1710lm ~ 1830lm) | 9A | 25°C | 3.5V | 56 lm/W | 9A | 70 | - | - | 19.90mm Dia | 3.50mm | 3.00mm Dia | Flat |
|
|
SBR-90-W65S-R71-NB102LED COB SBT-70 WH STARBRD 6500K |
3,367 | 0.00 |
|
Datasheet |
SBT-70 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K | - | Starboard | 1770lm (1710lm ~ 1830lm) | 9A | 25°C | 3.5V | 56 lm/W | 9A | 70 | - | - | 19.90mm Dia | 3.50mm | 3.00mm Dia | Flat |
|
LHC1-2780-1202LED COB LUXEON WHT RECT 2700K |
2,662 | 0.00 |
|
Datasheet |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 750lm (Typ) | 200mA | 85°C | 35.5V | 106 lm/W | 400mA | 80 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
LHC1-2780-1211LED COB LUXEON WARM WHT SQ 2700K |
2,211 | 0.00 |
|
Datasheet |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4600lm (Typ) | 1.2A | 85°C | 35.5V | 106 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
LHC1-2790-1202LED COB LUXEON WM WHT RECT 2700K |
2,068 | 8.35 |
|
Datasheet |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 625lm (Typ) | 200mA | 85°C | 35.5V | 88 lm/W | 400mA | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
|
|
LHC1-2790-1211LED COB LUXEON WM WHT SQ 2700K |
2,707 | 0.00 |
|
Datasheet |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Square | 3875lm (Typ) | 1.2A | 85°C | 35.5V | 91 lm/W | 2.4A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
LHC1-3080-1202LED COB LUXEON WHITE RECT 3000K |
2,334 | 6.75 |
|
Datasheet |
LUXEON CoB | Tube | Obsolete | Chip On Board (COB) | White | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 800lm (Typ) | 200mA | 85°C | 35.5V | 113 lm/W | 400mA | 80 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 9.00mm Dia | Flat |
