LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EAHP2024WB8LED COB COOL WHT RECT 6500K |
4,396 | 8.26 |
|
Datasheet |
- | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Rectangle | 1850lm (Typ) | 500mA | 25°C | 30V | 123 lm/W | 550mA | 80 | 120° | - | 24.00mm L x 20.00mm W | 2.00mm | 16.20mm Dia | Domed |
|
BXRC-27E1000-B-23LED COB VERO WHT STARBRD 2700K |
3,318 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1161lm (Typ) | 350mA | 25°C | 26.5V | 125 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-27E10K0-L-23LED COB VERO 29 ARRAY RND 2700K |
2,403 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 10113lm (Typ) | 2.1A | 25°C | 38V | 127 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
BXRC-27E2000-C-23LED COB VERO 13 ARRAY RND 2700K |
1,062 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2039lm (Typ) | 500mA | 25°C | 32.3V | 126 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
BXRC-27E4000-F-23LED COB VERO 18 ARRAY RND 2700K |
1,100 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 3961lm (Typ) | 1.05A | 25°C | 29.5V | 128 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-27G1000-B-23LED COB VERO WHT STARBRD 2700K |
1,315 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 982lm (Typ) | 350mA | 25°C | 26.5V | 106 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27G2000-C-23LED COB VERO 13 ARRAY RND 2700K |
2,276 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1696lm (Typ) | 500mA | 25°C | 32.3V | 105 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-27G4000-F-23LED COB VERO 18 ARRAY RND 2700K |
2,434 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 3224lm (Typ) | 1.05A | 25°C | 29.5V | 104 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-27H1000-B-23LED COB DECOR WM WH ROUND 2700K |
4,345 | 0.00 |
|
Datasheet |
Décor Series™ Ultra Vero® 10 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 632lm (Typ) | 350mA | 85°C | 25.8V | 70 lm/W | 1.05A | 97 (Typ) | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-27H2000-C-23LED COB DECOR WM WH ROUND 2700K |
1,422 | 0.00 |
|
Datasheet |
Décor Series™ Ultra Vero® 13 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1105lm (Typ) | 500mA | 85°C | 31.5V | 70 lm/W | 1.5A | 97 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30A2001-C-23LED COB DECOR WM WHT RND 3000K |
1,077 | 0.00 |
|
Datasheet |
Décor Series™ Class A Vero® 13 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1500lm (Typ) | 500mA | 25°C | 32.3V | 93 lm/W | 1.05A | 93 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|

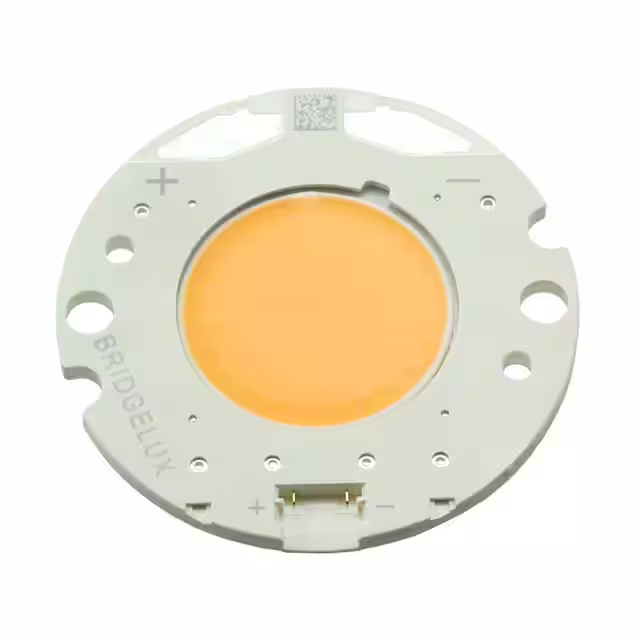

BXRC-30A4001-F-23LED COB DECOR WM WHT RND 3000K |
4,121 | 0.00 |
|
Datasheet |
Décor Series™ Class A Vero® 18 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2897lm (Typ) | 1.05A | 25°C | 29.5V | 94 lm/W | 2.1A | 93 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30E1000-B-23LED COB VERO WHT STARBRD 3000K |
4,371 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1207lm (Typ) | 350mA | 25°C | 26.5V | 130 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-30E10K0-L-23LED COB VERO 29 ARRAY RND 3000K |
4,495 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 10943lm (Typ) | 2.1A | 25°C | 38V | 137 lm/W | 4.2A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E2000-C-23LED COB VERO 13 ARRAY RND 3000K |
4,361 | 5.87 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2133lm (Typ) | 500mA | 25°C | 32.3V | 132 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30G1000-B-23LED COB VERO WHT STARBRD 3000K |
3,322 | 0.00 |
|
Datasheet |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1021lm (Typ) | 350mA | 25°C | 26.5V | 110 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-30G10K0-L-23LED COB VERO 29 ARRAY RND 3000K |
2,528 | 0.00 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 9060lm (Typ) | 2.1A | 25°C | 38V | 114 lm/W | 4.2A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30G2000-C-23LED COB VERO 13 ARRAY RND 3000K |
1,672 | 0.00 |
|
Datasheet |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1785lm (Typ) | 500mA | 25°C | 32.3V | 111 lm/W | 1.05A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-30G4000-F-23LED COB VERO 18 ARRAY RND 3000K |
3,776 | 0.00 |
|
Datasheet |
Vero® 18 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3423lm (Typ) | 1.05A | 25°C | 29.5V | 111 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
BXRC-30H2000-C-23LED COB DECOR WM WHT RND 3000K |
4,866 | 7.68 |
|
Datasheet |
Décor Series™ Ultra Vero® 13 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1189lm (Typ) | 500mA | 85°C | 31.5V | 76 lm/W | 1.5A | 97 (Typ) | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
