LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHM-6-65-80-27-XH00-F2-3LED COB CHM6 CL WH SQUARE 6500K |
3,183 | 0.00 |
|
Datasheet |
CHM-6 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 1320lm (Typ) | 480mA | 85°C | 27V | 102 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-65-80-27-XH00-F2-5LED COB CHM6 CL WH SQUARE 6500K |
1,065 | 0.00 |
|
Datasheet |
CHM-6 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 1320lm (Typ) | 480mA | 85°C | 27V | 102 lm/W | 720mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-9-27-80-36-AA00-F2-3LED COB CHM9 WM WH SQUARE 2700K |
2,778 | 0.00 |
|
Datasheet |
CHM-9 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1305lm (Typ) | 360mA | 85°C | 35V | 104 lm/W | 545mA | 80 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
|

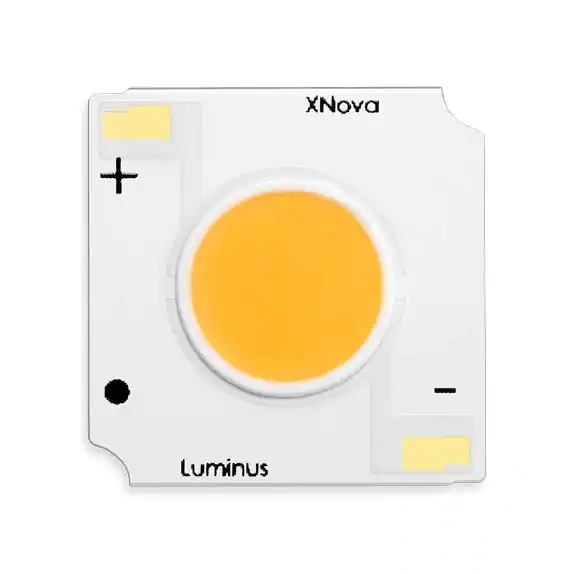

CHM-9-30-80-36-XH02-F2-3LED COB SENSUS WM WHT SQ 3000K |
1,694 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2460lm (Typ) | 720mA | 85°C | 36V | 95 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-30-90-36-XH02-F2-3LED COB SENSUS WM WHT SQ 3000K |
3,135 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1990lm (Typ) | 720mA | 85°C | 36V | 77 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-14-35-80-36-XH02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
1,595 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 6480lm (Typ) | 1.68A | 25°C | 36V | 107 lm/W | 2.52A | 80 | 120° | - | 17.50mm L x 17.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CHM-14-35-90-36-XH02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
1,570 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5185lm (Typ) | 1.68A | 25°C | 36V | 107 lm/W | 2.52A | 90 | 120° | - | 17.50mm L x 17.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CHM-9-35-80-36-XH02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
2,067 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3430lm (Typ) | 720mA | 85°C | 36V | 132 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-35-90-36-XH02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
4,624 | 0.00 |
|
- |
Sensus™ | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3015lm (Typ) | 720mA | 25°C | 36V | 116 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
LE UW D1W1 01-7L5M-IM-T10-HELED MOD OSRAM OSTAR WHITE |
3,919 | 0.00 |
|
- |
OSRAM OSTAR | Bulk | Obsolete | LED Module | White | - | - | - | 171lm (Typ) | 700mA | 25°C | 3.7V | 66 lm/W | 1A | - | 120° | - | - | - | - | - |
|
|
LE UW U1A5 05-5Q8Q-EBXD68LED MOD OSRAM OSTAR WHITE |
4,724 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Bulk | Obsolete | LED Module | White | - | - | - | 915lm (Typ) | 500mA | 25°C | 3.05V | - | 1.2A | - | 120° | - | 20.00mm L x 20.00mm W | 2.41mm | - | Flat |
|
|
LE UW U1A5 05-5Q7Q-EBXD68-T10-HELED MOD OSRAM OSTAR WHITE |
2,862 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Bulk | Obsolete | LED Module | White | - | - | - | 855lm (Typ) | 500mA | 25°C | 3.05V | - | 1.2A | - | 120° | - | 20.00mm L x 20.00mm W | 2.41mm | - | Flat |
|
|
LE UW U1A5 05-5Q7Q-EBXD68-L-ALLED MOD OSRAM OSTAR WHITE |
3,139 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Bulk | Obsolete | LED Module | White | - | - | - | 855lm (Typ) | 500mA | 25°C | 3.05V | - | 1.2A | - | 120° | - | 20.00mm L x 20.00mm W | 2.41mm | - | Flat |
|
|
LE UW U1A5 05-5Q6QEBXD68-T10-HELED MOD OSRAM OSTAR WHITE |
2,108 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Bulk | Obsolete | LED Module | White | - | - | - | - | 500mA | 25°C | 3.05V | - | 1.2A | - | 120° | - | 20.00mm L x 20.00mm W | 2.41mm | - | Flat |
|

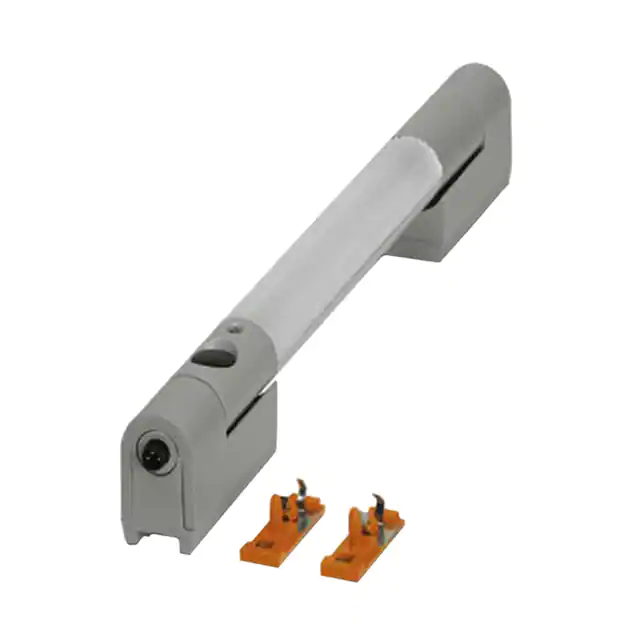

2702221LED ENG CL WHT LNR STRIP 5000K |
4,125 | 0.00 |
|
Datasheet |
- | - | Obsolete | LED Engine | White, Cool | 5000K | - | Linear Light Strip, Plug and Play | 140lm (Typ) | - | - | 24V | - | - | 75 | - | - | 250.00mm L x 23.00mm W | 38.00mm | - | - |
|

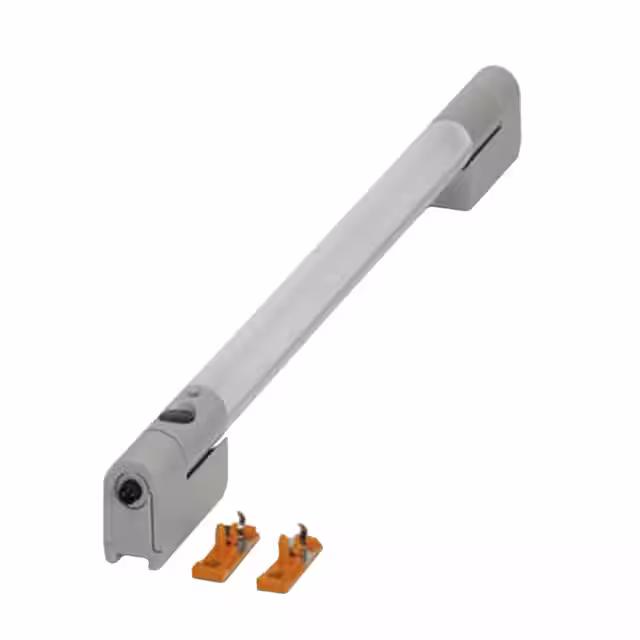

2702222LED ENG CL WHT LNR STRIP 5000K |
1,301 | 0.00 |
|
Datasheet |
- | - | Obsolete | LED Engine | White, Cool | 5000K | - | Linear Light Strip, Plug and Play | 340lm (Typ) | - | - | 24V | - | - | 75 | - | - | 375.00mm L x 23.00mm W | 38.00mm | - | - |
|

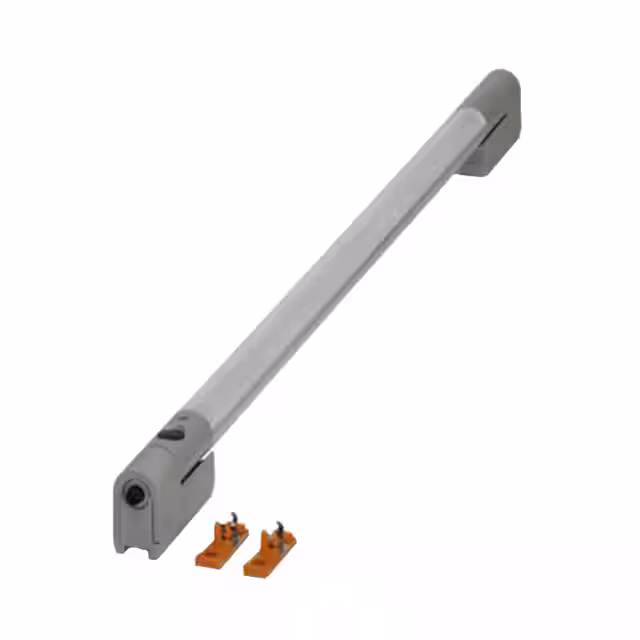

2702223LED ENG COOL WHT RECT 5000K |
1,130 | 150.29 |
|
Datasheet |
- | - | Obsolete | LED Engine | White, Cool | 5000K | - | Rectangle | 560lm (Typ) | - | - | 24V | - | - | 75 | - | - | - | 38.00mm | - | - |
|

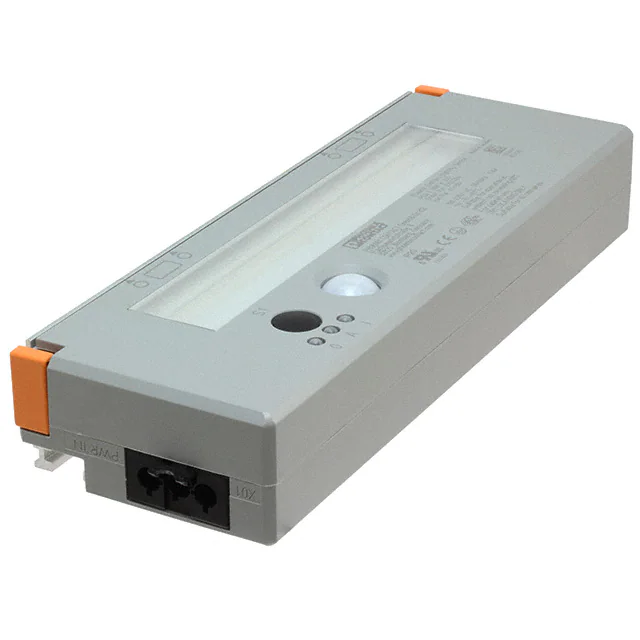

2702224LED ENG NEUT WHT RECT 4000K |
4,749 | 258.50 |
|
Datasheet |
- | - | Obsolete | LED Engine | White, Neutral | 4000K | - | Rectangle | 685lm (Typ) | - | - | - | - | - | 85 | - | - | 265.00mm L x 91.00mm W | 44.00mm | - | - |
|
|
LE B P2W-FZGY-W4-0-F00-T01LED MOD OSRAM OSTAR BLUE RECT |
3,353 | 0.00 |
|
- |
OSRAM OSTAR | Tray | Obsolete | LED Module | Blue | - | 459nm (452nm ~ 465nm) | Rectangle | - | 24A | 25°C | 3.55V | - | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|

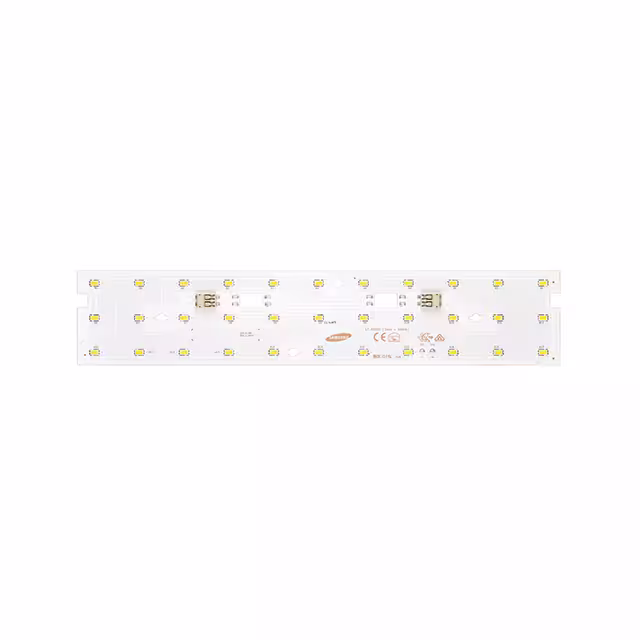

SI-B8P09A280WWLED MOD LT-R286A WHT RECT 6500K |
1,520 | 0.00 |
|
- |
LT-R286A | Tray | Obsolete | LED Module | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Rectangle | 1501lm (1350lm ~ 1650lm) | 290mA | 50°C | 32.3V | 160 lm/W | 540mA | 80 | 115° | With Connector | 280.00mm L x 55.00mm W | 5.80mm | - | Flat |
