LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LE A P2W 01-SXTX-1-0-F00-T01LED MOD OSRAM OSTAR AMBER RECT |
2,618 | 0.00 |
|
Datasheet |
OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 2700lm (Typ) | 12A | 25°C | 3.35V | 67 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|

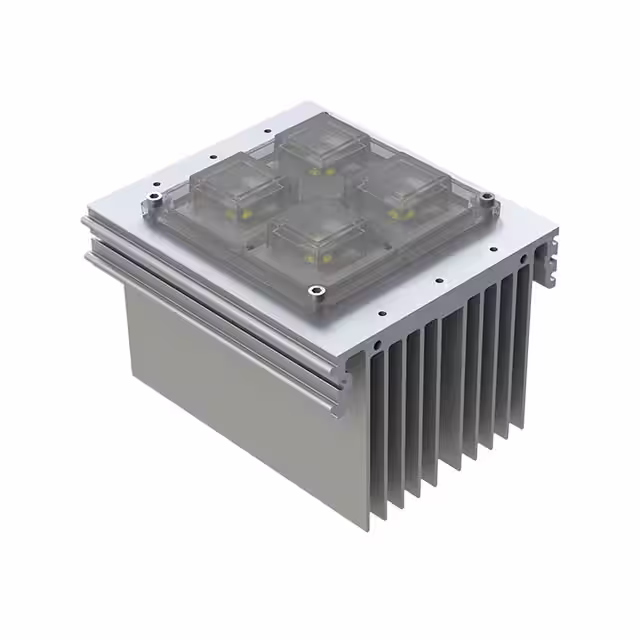

MP22T1-C24-5070-DWC-1-00LED MOD XHP70.2 CL WHT SQ 5000K |
1,207 | 0.00 |
|
Datasheet |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K | - | Square | 5050lm (Typ) | 700mA | 25°C | 44.6V | 162 lm/W | - | 70 | - | IP67 | 127.00mm L x 127.00mm W | 96.52mm | - | Flat |
|
|
MP26T1-C19-2780-T2-2-00LED MOD XHP35 WM WH RECT 2700K |
1,183 | 0.00 |
|
Datasheet |
XHP35 | Bulk | Active | LED Module | White, Warm | 2700K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|
|
MP26T1-C19-4080-DWC-2-00LED MOD XHP35 WHT RECT 4000K |
1,295 | 0.00 |
|
Datasheet |
XHP35 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|
|
MP26T1-C19-4080-ME-1-00LED MOD XHP35 WHT RECT 4000K |
1,925 | 0.00 |
|
Datasheet |
XHP35 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|

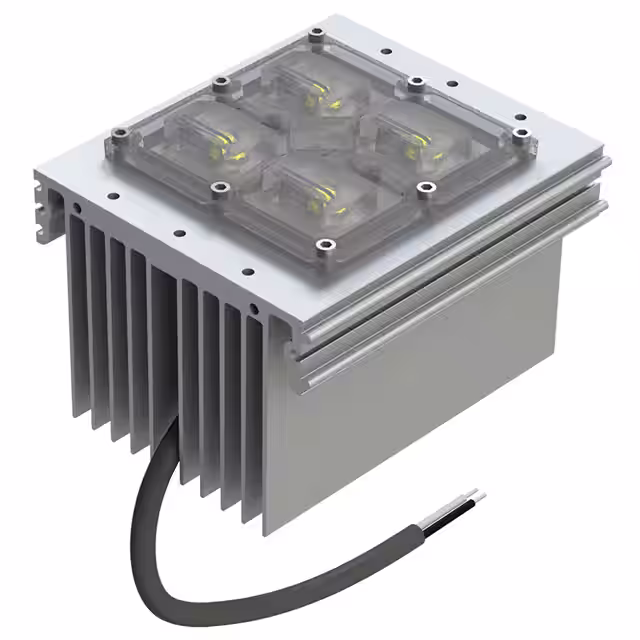

MS22T1-C22-5770-M-1-00LED MOD XHP50.2 CL WHT SQ 5700K |
4,741 | 0.00 |
|
Datasheet |
XHP50.2 | Bulk | Active | LED Module | White, Cool | 5700K | - | Square | 4500lm (Typ) | 700mA | 25°C | 45.5V | 141 lm/W | - | 70 | - | IP67 | 127.00mm L x 127.00mm W | 96.27mm | - | Domed |
|

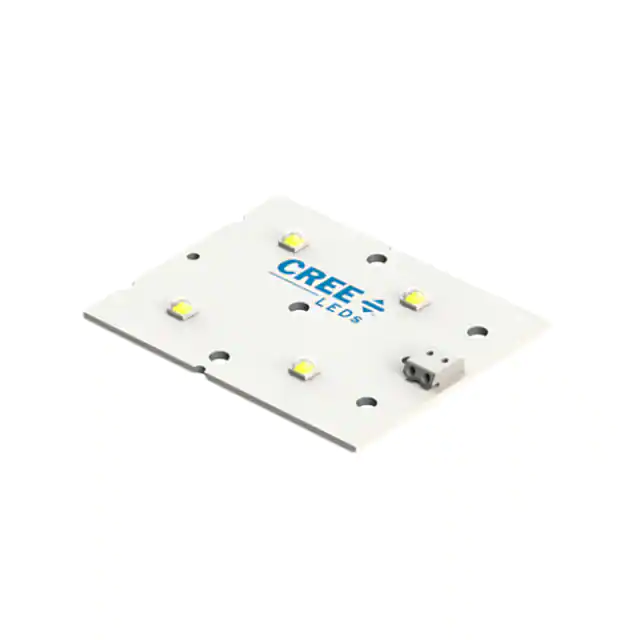

XHP35A-0R-04-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
4,931 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
1,433 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
3,370 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
3,554 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|

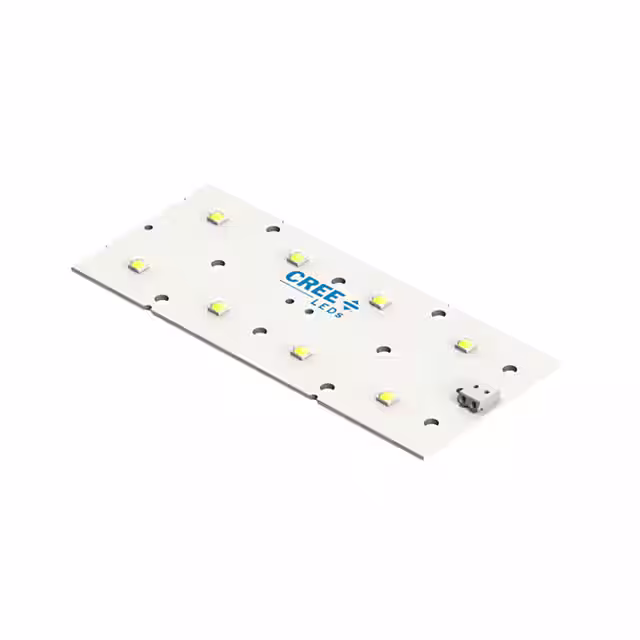

XHP35A-0R-08-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
2,660 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
1,638 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
3,210 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD457ELED MOD XHP35A CL WH RECT 5700K |
2,138 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
4,059 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
XHP35A-0R-12-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
4,880 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
3,225 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
4,486 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD457ELED MOD XHP35A CL WH RECT 5700K |
3,754 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
4,314 | 0.00 |
|
Datasheet |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
