LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

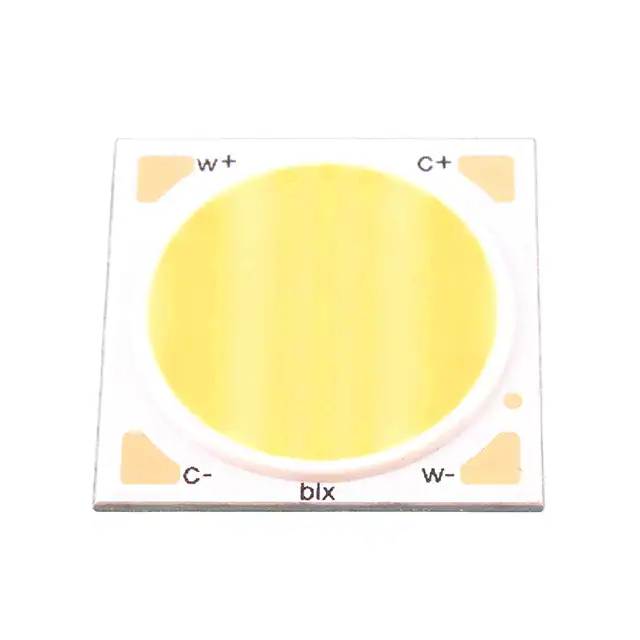

BXRV-TR-2765G-40A0-A-23LED COB VESTA WHITE SQUARE 4600K |
3,923 | 8.89 |
|
Datasheet |
Vesta™ | Tube | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 4026lm (Typ) | 900mA | 25°C | 35.3V | 127 lm/W | 1.4A | 92 | 130° | - | 24.00mm L x 24.00mm W | 1.65mm | 19.70mm Dia | Flat |
|
SI-B8T17256001LED MOD LTM562C LNR STRP 4000K |
2,580 | 4.95 |
|
Datasheet |
LT-M562C Gen3 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 2655lm | 700mA | - | 24V | 158 lm/W | 1.08A | 80 | 115° | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
BXRC-40E4000-C-73-SELED COB VERO SE 18 WHT RND 4000K |
1,719 | 9.89 |
|
Datasheet |
Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5811lm (Typ) | 1.17A | 85°C | 34.1V | 146 lm/W | 2.34A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat |
|
BXRC-40G4000-C-83-SELED COB VERO SE 18C WH RND 4000K |
3,856 | 16.82 |
|
Datasheet |
Gen 8 Vero® SE 18 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5425lm (Typ) | 1.05A | 25°C | 33.9V | 152 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia | Flat |
|
BXEB-L1120Z-40E8000-C-D3LED MOD EB SER WH LNR STRP 4000K |
1,122 | 187.00 |
|
Datasheet |
EB Series™ Gen 3 | Bulk | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 10440lm | 1.4A | 25°C | 38.4V | 194 lm/W | 2.8A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
BXRC-30G10K0-D-83LED COB VERO 29C WHT RND 3000K |
1,041 | 30.26 |
|
Datasheet |
Gen 8 Vero® 29 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 9290lm (Typ) | 1.7A | 25°C | 36.4V | 150 lm/W | 5.5A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
CFT-90-WCS-X11-VB600COB LED SMD |
4,841 | 0.00 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CXA1304-0000-000C00C40E1LED COB XLAMP COOL WHT SQ 6500K |
4,083 | 1.08 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 493lm (475lm ~ 510lm) | 400mA | 85°C | 9V | 137 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
BXRE-27G0800-D-73LED COB V8 WARM WHT SQUARE 2700K |
4,892 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 654lm (Typ) | 350mA | 85°C | 16.7V | 112 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-30G0800-D-73LED COB V8 WARM WHT SQU 3000K |
3,213 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 681lm (Typ) | 350mA | 85°C | 16.7V | 117 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRE-40G0800-D-73LED COB V8 NEUT WHT SQUARE 4000K |
4,390 | 1.81 |
|
Datasheet |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 730lm (Typ) | 350mA | 85°C | 16.7V | 125 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRH-30E0600-B-83LED COB V4 HD WARM WHT SQ 3000K |
3,311 | 2.31 |
|
Datasheet |
Gen 8 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm (Typ) | 350mA | 25°C | 18.3V | 136 lm/W | 600mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia | Flat |
|
BXRE-27G0800-D-83LED COB V SER GEN 8 WHT SQ 2700K |
2,385 | 3.27 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 138 lm/W | - | 90 | - | - | - | - | 8.00mm Dia | Flat |
|
|
5504LED MOD WARM WHT LINEAR STRIP |
4,992 | 0.00 |
|
Datasheet |
- | Bulk | Active | LED Module | White, Warm | - | - | Linear Light Strip, Flexible | - | - | - | 3V | - | 50mA | - | - | - | 130.00mm L | - | - | Flat |
|
FIT0876LED COB WM WHT LNR STRP 3000K |
3,521 | 3.90 |
|
- |
- | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K | - | Linear Light Strip | - | 600mA | - | 5V | - | - | - | - | - | 60.00mm L x 8.00mm W | 1.70mm | 50.00mm L x 8.00mm W | Flat |
|
BXRE-35E1000-C-83LED COB V10 WARM WHT SQU 3500K |
4,433 | 5.05 |
|
Datasheet |
Gen 8 V10 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1680lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | Flat |
|
CXB1512-0000-000N0HN230GLED COB XLAMP WARM WHT SQ 3000K |
4,806 | 4.26 |
|
Datasheet |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 350mA | 85°C | 36V | 131 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
BXRC-40E2000-C-73LED COB VERO 13 WHT RND 4000K |
4,053 | 6.84 |
|
Datasheet |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3170lm (Typ) | 630mA | 85°C | 34.1V | 148 lm/W | 1.26A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
5507LED MOD GREEN LINEAR STRIP |
3,863 | 0.00 |
|
Datasheet |
- | Bulk | Active | LED Module | Green | - | - | Linear Light Strip, Flexible | - | - | - | 3V | - | 50mA | - | - | - | 300.00mm L | - | - | Flat |
|
XPEBGR-L1-0000-00F03-SB01LED MOD XLAMP GREEN STARBOARD |
4,988 | 6.65 |
|
Datasheet |
XLamp® XP-E2 | Tray | Not For New Designs | LED Module | Green | - | 530nm (525nm ~ 535nm) | Starboard | 126lm (122lm ~ 130lm) | 350mA | 25°C | 3.2V | 113 lm/W | 1A | - | 135° | - | 19.89mm Dia | 2.30mm | - | Domed |
