LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

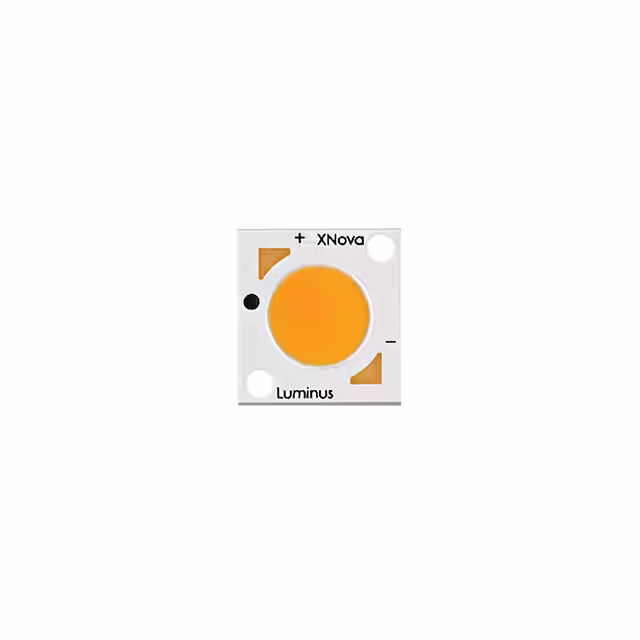

CHM-6-40-80-9-AA00-F2-3LED COB CHM6 NEUT WHT RECT 4000K |
3,790 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 655lm (Typ) | 640mA | 85°C | 9V | 114 lm/W | 1.28A | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-40-90-36-AA00-F2-3LED COB CHM6 NEUT WHT RECT 4000K |
4,540 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 570lm (Typ) | 160mA | 85°C | 35V | 102 lm/W | 320mA | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-40-90-9-AA00-F2-3LED COB CHM6 NEUT WHT RECT 4000K |
2,328 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 570lm (Typ) | 640mA | 85°C | 9V | 99 lm/W | 1.28A | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-50-80-36-AA00-F2-5LED COB CHM6 COOL WHT RECT 5000K |
1,021 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 670lm (Typ) | 160mA | 85°C | 35V | 120 lm/W | 320mA | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-50-80-9-AA00-F2-5LED COB CHM6 COOL WHT RECT 5000K |
1,123 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 670lm (Typ) | 640mA | 85°C | 9V | 116 lm/W | 1.28A | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-65-80-36-AA00-F2-5LED COB CHM6 COOL WHT RECT 6500K |
1,553 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Rectangle | 670lm (Typ) | 160mA | 85°C | 35V | 120 lm/W | 320mA | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-65-80-9-AA00-F2-5LED COB CHM6 COOL WHT RECT 6500K |
3,396 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Rectangle | 670lm (Typ) | 640mA | 85°C | 9V | 116 lm/W | 1.28A | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
CHM-6-50-90-36-AA00-F2-5LED COB CHM6 COOL WHT RECT 5000K |
3,323 | 0.97 |
|
Datasheet |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 585lm (Typ) | 160mA | 85°C | 35V | 104 lm/W | 320mA | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
SPHWHAHDNC25YZP2DBLED COB D GEN2 COOL WHT SQ 6500K |
1,425 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 6500K 2-Step MacAdam Ellipse | - | Square | 1496lm (Typ) | 270mA | 85°C | 34V | 163 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZR2DBLED COB D GEN2 COOL WHT SQ 5000K |
4,156 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1513lm (Typ) | 270mA | 85°C | 34V | 165 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC25YZQ2DBLED COB D GEN2 COOL WHT SQ 5700K |
3,505 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5700K 2-Step MacAdam Ellipse | - | Square | 1513lm (Typ) | 270mA | 85°C | 34V | 165 lm/W | 540mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC27YZR2DBLED COB D GEN2 COOL WHT SQ 5000K |
4,057 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1304lm (Typ) | 270mA | 85°C | 34V | 142 lm/W | 540mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC23YZT2DBLED COB D GEN2 NEUT WHT SQ 4000K |
4,770 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1591lm (Typ) | 270mA | 85°C | 34V | 173 lm/W | 540mA | 70 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC23YZV2DBLED COB D GEN2 WARM WHT SQ 3000K |
2,681 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1548lm (Typ) | 270mA | 85°C | 34V | 168 lm/W | 540mA | 70 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNC23YZR2DBLED COB D GEN2 COOL WHT SQ 5000K |
2,094 | 0.00 |
|
Datasheet |
COB D Gen2 Plus | Bulk | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1626lm (Typ) | 270mA | 85°C | 34V | 177 lm/W | 540mA | 70 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
CXM-6-40-70-18-AC30-F4-3GENERATION 3 STANDARD COB PRODUC |
1,428 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BXRH-27G0600-A-73LED COB V4 HD WARM WHT SQU 2700K |
3,858 | 0.99 |
|
Datasheet |
Gen 7 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 532lm (Typ) | 175mA | 85°C | 35.4V | 86 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia | Flat |
|
|
BXRH-30E0600-A-73LED COB V4 HD WARM WHT SQ 3000K |
2,006 | 0.99 |
|
Datasheet |
Gen 7 V4 HD LED Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 673lm (Typ) | 175mA | 85°C | 35.4V | 109 lm/W | 240mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia | Flat |
|
|
BXRH-30G0600-A-73LED COB V4 HD WARM WHT SQ 3000K |
1,457 | 0.99 |
|
Datasheet |
Gen 7 V4 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 565lm (Typ) | 175mA | 85°C | 35.4V | 91 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia | Flat |
|
|
BXRH-35G0600-A-73LED COB V4 HD WARM WHT SQU 3500K |
4,267 | 0.99 |
|
Datasheet |
Gen 7 V4 HD LED Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 579lm (Typ) | 175mA | 85°C | 35.4V | 93 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia | Flat |
