LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNG25YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
250 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3816lm (Typ) | 720mA | 85°C | 33.7V | 157 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNH23YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
250 | 6.42 |
|
Datasheet |
COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5014lm (Typ) | 900mA | 85°C | 34V | 164 lm/W | 1.8A | 70 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG25YZU3DCLED COB D GEN3 WARM WHT SQ 3500K |
250 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4125lm (Typ) | 720mA | 85°C | 33.7V | 170 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG27YZW3DCLED COB D GEN3 WARM WHT SQ 2700K |
245 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3222lm (Typ) | 720mA | 85°C | 33.7V | 133 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG27YZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
236 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3663lm (Typ) | 720mA | 85°C | 33.7V | 151 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG27YZV3DCLED COB D GEN3 WM WHT SQ 3000K |
125 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3389lm (Typ) | 720mA | 85°C | 33.7V | 139 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMB1306-0000-000F0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
400 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1000lm | 400mA | 85°C | 16.7V | 150 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
389 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 980lm | 200mA | 85°C | 33.3V | 147 lm/W | 600mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
388 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1000lm | 200mA | 85°C | 33.3V | 150 lm/W | 600mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
385 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1005lm | 200mA | 85°C | 33.3V | 151 lm/W | 600mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-000N0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
318 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 939lm | 200mA | 85°C | 33.3V | 141 lm/W | 600mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-000F0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
133 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 980lm | 400mA | 85°C | 16.7V | 147 lm/W | 1.2A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CHA0410-R160-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
160 | 0.00 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 681lm (Typ) | 175mA | 85°C | 36V | 108 lm/W | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|
|
CHA0410-R160-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
157 | 0.00 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 728lm (Typ) | 175mA | 85°C | 36V | 116 lm/W | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|
|
CHA0410-R160-000D0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
145 | 0.00 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 740lm (Typ) | 525mA | 85°C | 12V | 117 lm/W | 900mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|
|
CHA0410-R160-000D0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
125 | 0.00 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 693lm (Typ) | 525mA | 85°C | 12V | 110 lm/W | 900mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 4.20mm Dia | Flat |
|

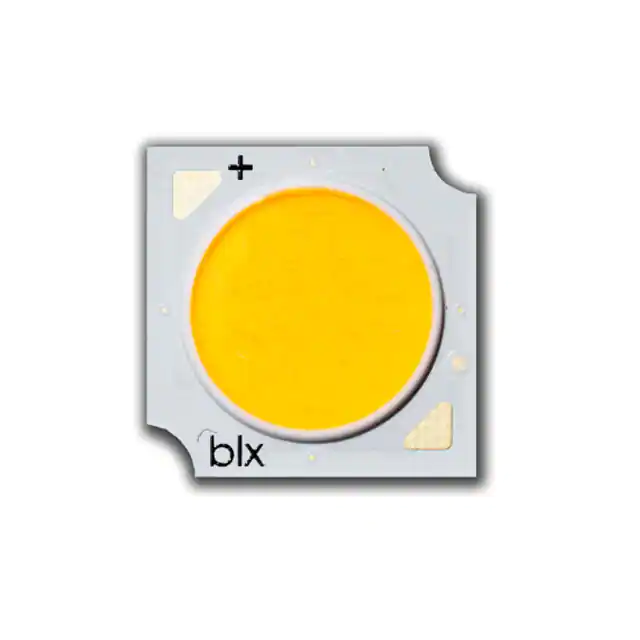

BXRE-50C1001-B-84LED COB V SER GEN 8 WHT SQ 5000K |
287 | 4.04 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1299lm (Typ) | 200mA | 25°C | 34.2V | 192 lm/W | - | 70 | - | - | - | - | 10.00mm Dia | Flat |
|
|
SPHWHAHDND25YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
500 | 4.01 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1922lm (Typ) | 360mA | 85°C | 33.6V | 159 lm/W | 920mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDND27YZU3D4LED COB D GEN4 WARM WHT SQ 3500K |
475 | 4.01 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1774lm (Typ) | 360mA | 85°C | 33.6V | 147 lm/W | 920mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.65mm | 9.80mm Dia | Flat |
|
|
CMB1306-0000-000F0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
400 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 852lm | 400mA | 85°C | 16.7V | 128 lm/W | 1.2A | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
