LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNH27YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
123 | 6.42 |
|
Datasheet |
COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5014lm (Typ) | 900mA | 85°C | 34V | 164 lm/W | 1.8A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNH27YZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
249 | 8.69 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4599lm (Typ) | 900mA | 85°C | 33.6V | 152 lm/W | 2.3A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|

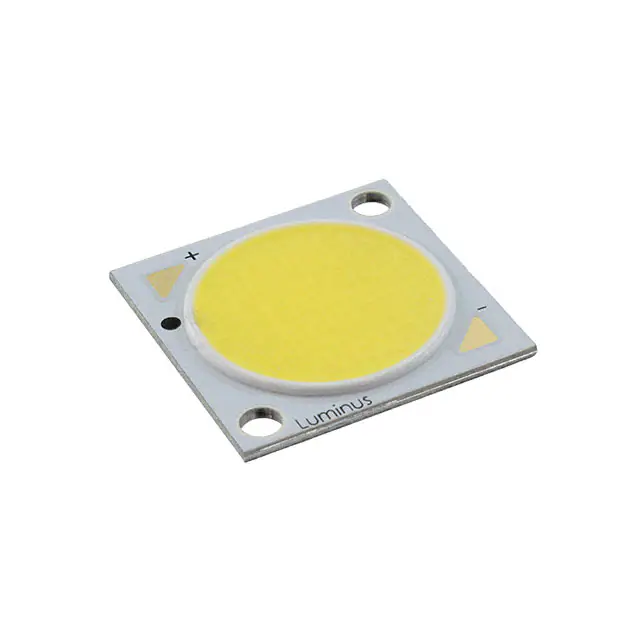

CXM-14-65-80-36-AA30-F4-5LED COB CXM-14 GEN3 WHT SQ 6500K |
806 | 7.83 |
|
Datasheet |
CXM-14 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3770lm (Typ) | 720mA | 85°C | 34V | 154 lm/W | 1.45A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 14.30mm Dia | Flat |
|
BXRC-30G200C-B-73LED COB VERO 13 WM WH RND 3000K |
194 | 5.52 |
|
Datasheet |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1706lm (Typ) | 450mA | 85°C | 34.1V | 111 lm/W | 900mA | 90 | 120° | - | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
CMB1516-R108-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
108 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2416lm | 450mA | 85°C | 34V | 158 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1516-R108-000N0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
106 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2276lm | 450mA | 85°C | 34V | 149 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1818-0000-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
236 | 0.00 |
|
Datasheet |
XLamp® CMB1818 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2314lm | 500mA | 85°C | 33.5V | 138 lm/W | 1.5A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1510-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
270 | 0.00 |
|
Datasheet |
XLamp® CMB1510 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1373lm | 350mA | 85°C | 34V | 115 lm/W | 900mA | 95 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
CXM-9-40-90-36-AC40-F5-3LED COB CXM-9 NEUT WHT SQU 4000K |
373 | 5.81 |
|
Datasheet |
CXM-9 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (Typ) | 360mA | 85°C | 33.5V | 137 lm/W | 1.1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.80mm Dia | Flat |
|
CXM-9-30-90-36-AC40-F5-3LED COB CXM-9 WARM WHT SQ 3000K |
285 | 5.81 |
|
Datasheet |
CXM-9 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1570lm (Typ) | 360mA | 85°C | 33.5V | 130 lm/W | 1.1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.80mm Dia | Flat |
|
|
CHM-9-30-90-36-XD22-F4-3LED COB SENSUS GEN3 WH SQ 3000K |
175 | 5.87 |
|
Datasheet |
Sensus™ Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1425lm (Typ) | 360mA | 85°C | 34V | 117 lm/W | 995mA | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.60mm Dia | Flat |
|
|
SPHWHAHDNF25YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
190 | 6.31 |
|
Datasheet |
COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2968lm (Typ) | 540mA | 85°C | 33.6V | 164 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG25YZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
246 | 6.42 |
|
Datasheet |
COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4198lm (Typ) | 720mA | 85°C | 33.7V | 173 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMB1516-R108-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
108 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2065lm | 450mA | 85°C | 34V | 135 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CHA0612-R160-000N0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
160 | 0.00 |
|
Datasheet |
XLamp® CHA0612 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1476lm (Typ) | 350mA | 85°C | 36V | - | 600mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
CHA0612-R160-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
147 | 0.00 |
|
Datasheet |
XLamp® CHA0612 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1381lm (Typ) | 350mA | 85°C | 36V | - | 600mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
CMB1507-R108-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
108 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 836lm | 200mA | 85°C | 33.5V | 125 lm/W | 600mA | 95 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1507-R108-000F0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
108 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 836lm | 400mA | 85°C | 16.8V | 124 lm/W | 1.2A | 95 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1306-R160-000F0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
160 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 754lm | 400mA | 85°C | 16.7V | 113 lm/W | 1.2A | 95 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-R160-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
160 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 754lm | 200mA | 85°C | 33.3V | 113 lm/W | 600mA | 95 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
