LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHA0304-R160-00PG0U0A31QXLAMP CHA LED WHITE PRO9 |
4,865 | 0.00 |
|
Datasheet |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K | - | Square | - | 175mA | 85°C | 21V | - | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
SPHWHAHDNF25YZT2D2LED COB D GEN2 NEUT WHT SQ 4000K |
2,425 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3026lm (Typ) | 540mA | 85°C | 34.6V | 162 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF25YZU2D2LED COB D GEN2 WARM WHT SQ 3500K |
4,529 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2965lm (Typ) | 540mA | 85°C | 34.6V | 159 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF25YZV2D2LED COB D GEN2 WARM WHT SQ 3000K |
2,371 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2877lm (Typ) | 540mA | 85°C | 34.6V | 154 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF25YZW2D2LED COB D GEN2 WARM WHT SQ 2700K |
1,271 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2728lm (Typ) | 540mA | 85°C | 34.6V | 146 lm/W | 1.38A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZT2D2LED COB D GEN2 NEUT WHT SQ 4000K |
2,242 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2594lm (Typ) | 540mA | 85°C | 34.6V | 139 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZU2D2LED COB D GEN2 WARM WHT SQ 3500K |
2,396 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2539lm (Typ) | 540mA | 85°C | 34.6V | 136 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZV2D2LED COB D GEN2 WARM WHT SQ 3000K |
4,255 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2449lm (Typ) | 540mA | 85°C | 34.6V | 131 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZW2D2LED COB D GEN2 WARM WHT SQ 2700K |
1,087 | 2.32 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2336lm (Typ) | 540mA | 85°C | 34.6V | 125 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWW1HDNA27YHT3B3LED COB LC013B GEN3 WHT SQ 4000K |
3,673 | 0.00 |
|
Datasheet |
LC013B Gen3 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1738lm (1520lm ~ 1955lm) | 360mA | 25°C | 35.5V | 136 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.60mm | 11.00mm Dia | Flat |
|
|
SPHWW1HDNA27YHU3B3LED COB LC013B GEN3 WHT SQ 3500K |
2,102 | 0.00 |
|
Datasheet |
LC013B Gen3 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1690lm (1475lm ~ 1904lm) | 360mA | 25°C | 35.5V | 132 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.60mm | 11.00mm Dia | Flat |
|
|
SPHWW1HDNA27YHV3B3LED COB LC013B GEN3 WH SQ 3000K |
2,493 | 0.00 |
|
Datasheet |
LC013B Gen3 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1652lm (1440lm ~ 1863lm) | 360mA | 25°C | 35.5V | 129 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.60mm | 11.00mm Dia | Flat |
|
|
SPHWW1HDNA27YHW2B3LED COB LC013B GEN3 WHT SQ 2700K |
1,157 | 0.00 |
|
Datasheet |
LC013B Gen3 | Tape & Reel (TR) | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1614lm (1405lm ~ 1822lm) | 360mA | 25°C | 35.5V | 126 lm/W | 660mA | 90 | 115° | - | 17.00mm L x 17.00mm W | 1.60mm | 11.00mm Dia | Flat |
|
|
BXRE-30S1001-B-73LED COB V10 THRIVE WHT SQ 3000K |
1,309 | 2.92 |
|
Datasheet |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 970lm (Typ) | 270mA | 85°C | 33.7V | 107 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
|
BXRE-35S1001-B-73LED COB V10 THRIVE WHT SQ 3500K |
2,073 | 2.92 |
|
Datasheet |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 1011lm (Typ) | 270mA | 85°C | 33.7V | 111 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|

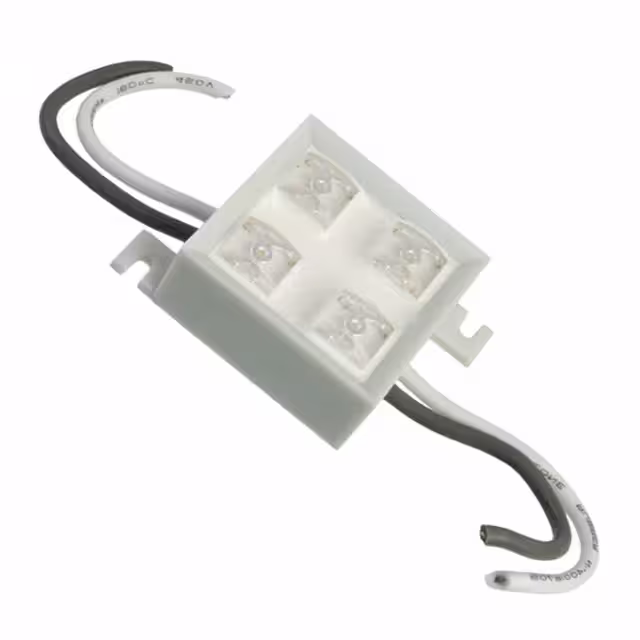

OVM18F4R7LED ENG RED SQUARE 4POS |
1,438 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | LED Engine | Red | - | 623nm | Square | - | - | 25°C | 20V | - | - | - | 120° | - | 2489.20mm L x 28.00mm W | 12.00mm | - | Flat |
|

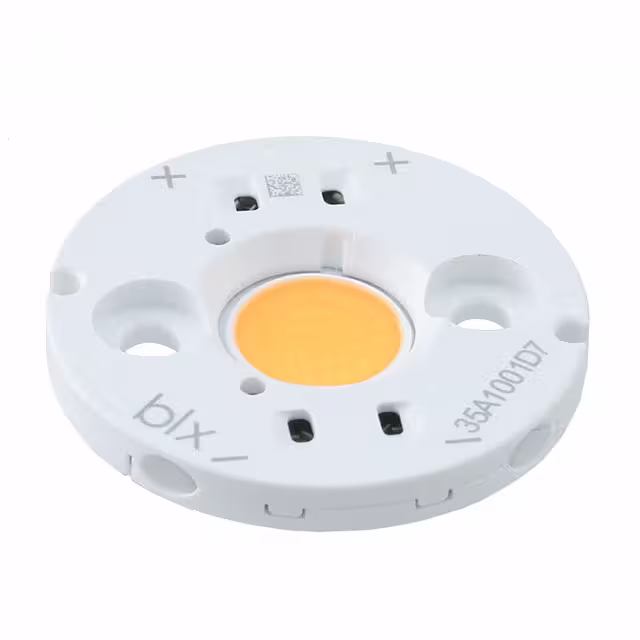

BXRC-35A1001-D-73-SELED COB DECOR WM WH ROUND 3500K |
3,973 | 2.62 |
|
Datasheet |
Décor Series™ Class A Vero® SE 10 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 996lm (Typ) | 350mA | 85°C | 25.3V | 112 lm/W | 700mA | 93 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|

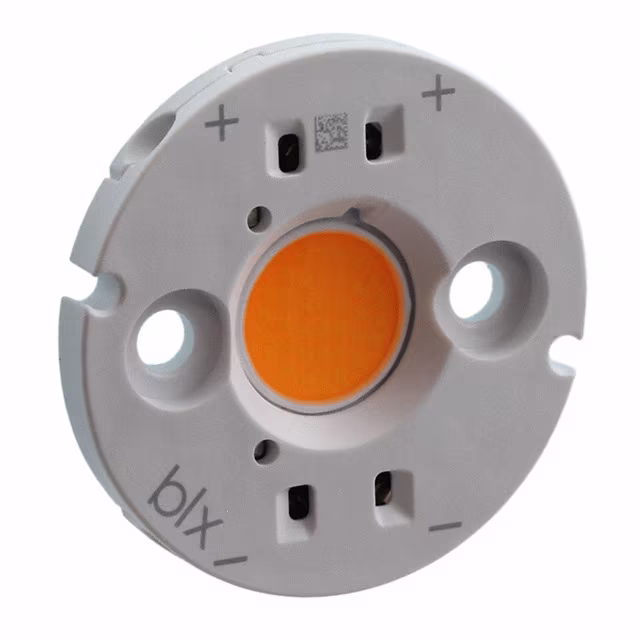

BXRC-20B1001-B-73-SELED COB VERO SE 10 WHT RND 2000K |
2,549 | 2.62 |
|
Datasheet |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 1192lm (Typ) | 270mA | 85°C | 33.8V | 131 lm/W | 540mA | 65 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|
|
BXRC-20B1001-D-73-SELED COB VERO SE 10 WHT RND 2000K |
3,828 | 2.62 |
|
Datasheet |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 1155lm (Typ) | 350mA | 85°C | 25.3V | 130 lm/W | 700mA | 65 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
|
BXRC-30G100C-B-73-SELED COB VERO WHT RND 3000K |
2,495 | 2.92 |
|
Datasheet |
Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 981lm (Typ) | 270mA | 85°C | 34V | 107 lm/W | 540mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | Flat |
