LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMU1010-0000-00PN0U0A35HXLAMP CMU LED WHITE PRO9 |
1,955 | 0.00 |
|
Datasheet |
XLamp® CMU1010 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1541lm (Typ) | 270mA | 85°C | 33.7V | 169 lm/W | 720mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
CMU1010-0000-00PN0U0A40HXLAMP CMU LED WHITE PRO9 |
1,858 | 0.00 |
|
Datasheet |
XLamp® CMU1010 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1545lm (Typ) | 270mA | 85°C | 33.7V | 170 lm/W | 720mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|

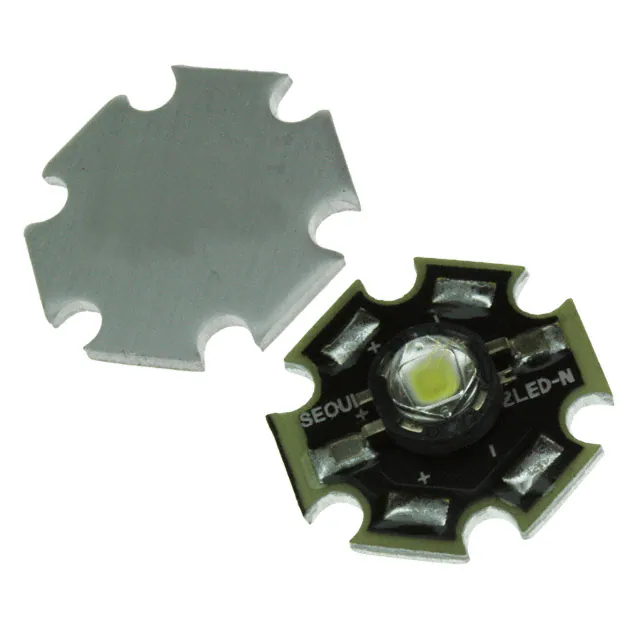

S42182-S2LED MOD Z POWER WH STARBRD |
2,424 | 0.00 |
|
Datasheet |
Z Power, P4 | Tape & Reel (TR) | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 61lm (Typ) | 350mA | 25°C | 3.25V | 54 lm/W | 350mA | 93 (Typ) | 124° | - | 19.90mm L x 19.90mm W | 6.78mm | 6.00mm Dia | Domed |
|
|
W42182-U1LED MOD Z POWER WH STARBRD |
1,545 | 0.00 |
|
Datasheet |
Z Power, P4 | Tape & Reel (TR) | Obsolete | LED Module | White, Cool | 6300K | - | Starboard | 100lm (Typ) | 350mA | 25°C | 3.25V | 88 lm/W | 1A | 75 (Typ) | 127° | - | 19.90mm Dia | 6.78mm | 5.60mm Dia | Domed |
|
|
N42182-S2LED MOD Z POWER WH STARBRD |
3,457 | 0.00 |
|
Datasheet |
Z Power, P4 | Tape & Reel (TR) | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 66lm (Typ) | 350mA | 25°C | 3.25V | 58 lm/W | 800mA | 93 (Typ) | 124° | - | 19.90mm Dia | 6.78mm | 5.60mm Dia | Domed |
|
CXA1512-0000-000N0HK250FLED COB XLAMP COOL WHT SQU 5000K |
3,648 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CXA1507-0000-000N0UD427FLED COB XLAMP WARM WHT SQU 2700K |
2,868 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 570lm (550lm ~ 590lm) | 200mA | 85°C | 37V | 77 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK450FLED COB XLAMP COOL WHT SQU 5000K |
2,400 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N00M250FLED COB XLAMP COOL WHT SQU 5000K |
2,393 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 37V | 111 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK240FLED COB XLAMP NEUT WHT SQU 4000K |
3,767 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N00F40E6LED COB XLAMP WARM WHT SQ 3500K |
2,657 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 755lm (730lm ~ 780lm) | 200mA | 85°C | 37V | 102 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N00F20E8LED COB XLAMP WARM WHT SQ 2700K |
4,983 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 705lm (680lm ~ 730lm) | 200mA | 85°C | 37V | 95 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N00K440FLED COB XLAMP NEUT WHT SQU 4000K |
3,944 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0UD20E8LED COB XLAMP WARM WHT SQ 2700K |
3,774 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 530lm (510lm ~ 550lm) | 200mA | 85°C | 37V | 72 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N00G230FLED COB XLAMP WARM WHT SQU 3000K |
2,038 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 37V | 110 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK257FLED COB XLAMP COOL WHT SQU 5700K |
1,867 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | - | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK265FLED COB XLAMP COOL WHT SQU 6500K |
2,224 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 96 lm/W | 600mA | - | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK457FLED COB XLAMP COOL WHT SQU 5700K |
4,518 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0HK465FLED COB XLAMP COOL WHT SQU 6500K |
2,920 | 2.36 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F00F20E8LED COB XLAMP WARM WHT SQ 2700K |
4,044 | 2.36 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 705lm (680lm ~ 730lm) | 400mA | 85°C | 18V | 98 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
