LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-35G1000-A-82V10A WARM WHITE LED ARRAY |
2,066 | 0.00 |
|
Datasheet |
Gen 8 V10 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1455lm (Typ) | 300mA | 25°C | 33.5V | 145 lm/W | 960mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | Flat |
|

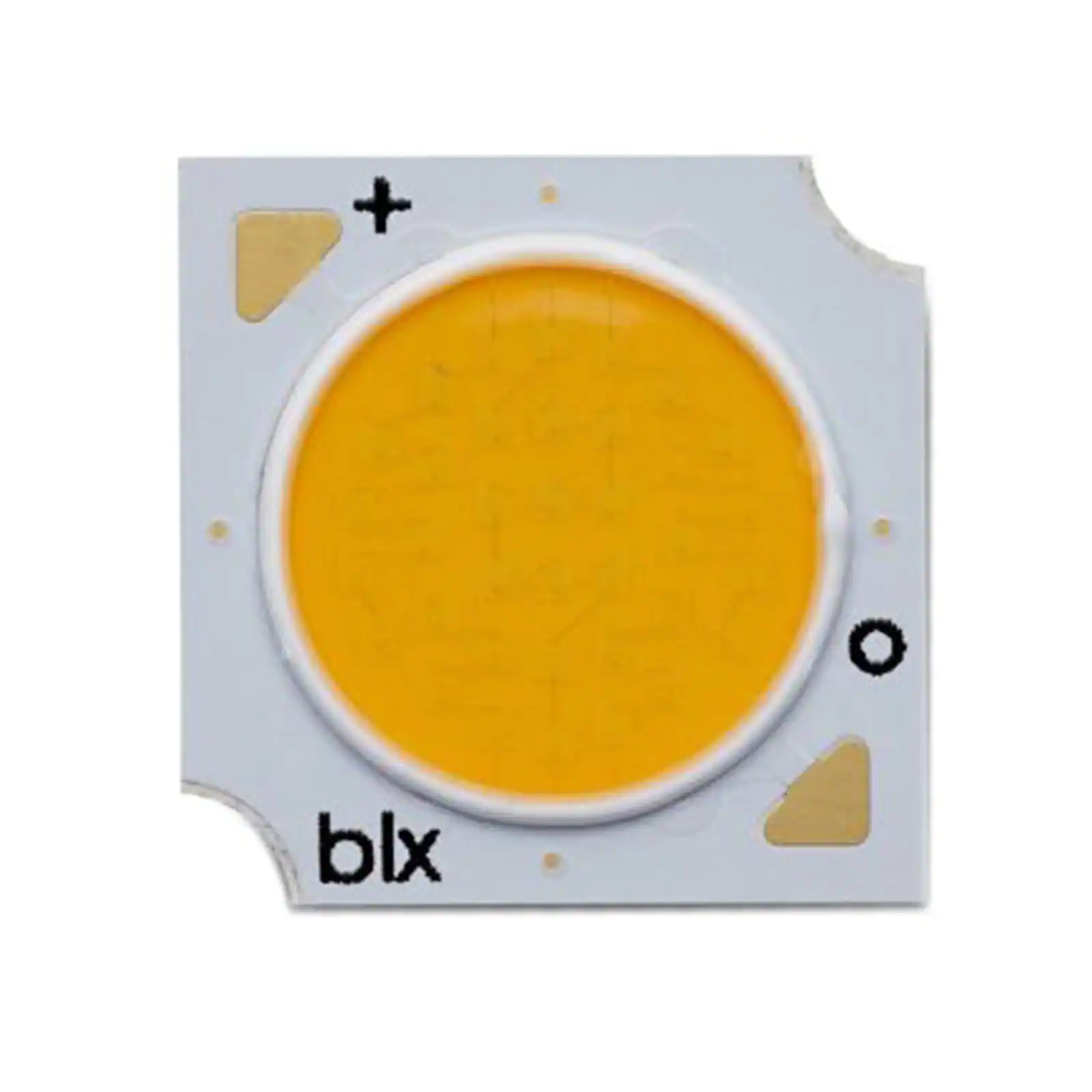

BXRE-65S1001-B-74LED COB V10 THRIVE WHT SQ 6500K |
4,069 | 2.92 |
|
Datasheet |
Gen 7 V10 Thrive™ Array | Tube | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 1087lm (Typ) | 270mA | 85°C | 33.7V | 119 lm/W | 540mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.70mm | 10.20mm Dia | Flat |
|
CXA1304-0000-000C00D250HLED COB XLAMP COOL WHT SQU 5000K |
3,027 | 2.92 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 530lm (510lm ~ 550lm) | 400mA | 85°C | 9V | 147 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000F00D250HLED COB XLAMP COOL WHT SQU 5000K |
3,940 | 2.92 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 530lm (510lm ~ 550lm) | 200mA | 85°C | 18V | 147 lm/W | 500mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000N00D250HLED COB XLAMP COOL WHT SQU 5000K |
1,621 | 2.92 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 530lm (510lm ~ 550lm) | 100mA | 85°C | 37V | 143 lm/W | 250mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
CXA1507-0000-000N0UE20E5LED COB XLAMP NEUT WHT SQ 4000K |
3,282 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 37V | 83 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0UE40E3LED COB XLAMP COOL WHT SQ 5000K |
2,549 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 658lm (635lm ~ 680lm) | 200mA | 85°C | 37V | 89 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0YC40E8LED COB XLAMP WARM WHT SQ 2700K |
1,899 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 493lm (475lm ~ 730lm) | 200mA | 85°C | 37V | 67 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0YD20E7LED COB XLAMP WARM WHT SQ 3000K |
4,849 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 530lm (510lm ~ 550lm) | 200mA | 85°C | 37V | 72 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0YD40E6LED COB XLAMP WARM WHT SQ 3500K |
1,548 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 570lm (550lm ~ 590lm) | 200mA | 85°C | 37V | 77 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0UE20E5LED COB XLAMP NEUT WHT SQ 4000K |
4,193 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0UE40E3LED COB XLAMP COOL WHT SQ 5000K |
3,324 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 658lm (635lm ~ 680lm) | 400mA | 85°C | 18V | 91 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YC40E8LED COB XLAMP WARM WHT SQ 2700K |
3,039 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 493lm (475lm ~ 730lm) | 400mA | 85°C | 18V | 68 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YD20E7LED COB XLAMP WARM WHT SQ 3000K |
4,226 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 530lm (510lm ~ 550lm) | 400mA | 85°C | 18V | 74 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YD40E6LED COB XLAMP WARM WHT SQ 3500K |
3,011 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 570lm (550lm ~ 590lm) | 400mA | 85°C | 18V | 79 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YE227GLED COB XLAMP WARM WHT SQU 2700K |
1,378 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YE430GLED COB XLAMP WARM WHT SQ 3000K |
4,859 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 658lm (635lm ~ 680lm) | 400mA | 85°C | 18V | 91 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0YF235GLED COB XLAMP WARM WHT SQU 3500K |
3,163 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 400mA | 85°C | 18V | 98 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0YE227GLED COB XLAMP WARM WHT SQU 2700K |
4,236 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 36V | 85 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000N0YE430GLED COB XLAMP WARM WHT SQ 3000K |
2,691 | 2.45 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 658lm (635lm ~ 680lm) | 200mA | 85°C | 36V | 91 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
