LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNF27YZT3D3LED COB D GEN3 NEUT WHT SQ 4000K |
4,072 | 2.73 |
|
Datasheet |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2684lm (Typ) | 540mA | 85°C | 34V | 146 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZU3D3LED COB D GEN3 WARM WHT SQ 3500K |
4,849 | 2.73 |
|
Datasheet |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2630lm (Typ) | 540mA | 85°C | 34V | 143 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZV3D3LED COB D GEN3 WM WHT SQ 3000K |
3,027 | 2.73 |
|
Datasheet |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2554lm (Typ) | 540mA | 85°C | 34V | 139 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZW3D3LED COB D GEN3 WARM WHT SQ 2700K |
3,591 | 2.73 |
|
Datasheet |
COB D Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2428lm (Typ) | 540mA | 85°C | 34V | 132 lm/W | 1.38A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1006-0000-00PN0Z0AL7CXLAMP CMU LED WHITE PRO9 |
3,874 | 0.00 |
|
Datasheet |
XLamp® CMU1006 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 913lm (Typ) | 180mA | 85°C | 33.7V | 151 lm/W | 480mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|

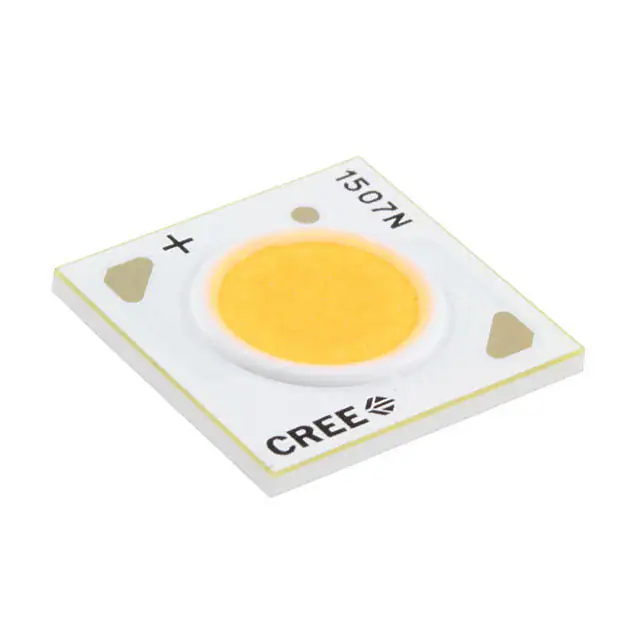

CXB1507-0000-000N0HH227GLED COB XLAMP WARM WHT SQU 2700K |
3,598 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 36V | 130 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000N0HH230GLED COB XLAMP WARM WHT SQ 3000K |
1,367 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 200mA | 85°C | 36V | 130 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000N0UG230GLED COB XLAMP WARM WHT SQ 3000K |
3,040 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 36V | 113 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CXB1507-0000-000F0BJ240ELED COB XLAMP NEUT WHT SQU 4000K |
2,102 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0BJ250ELED COB XLAMP COOL WHT SQU 5000K |
4,389 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0BJ257ELED COB XLAMP COOL WHT SQU 5700K |
2,638 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0BJ265ELED COB XLAMP COOL WHT SQU 6500K |
3,024 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HH227GLED COB XLAMP WARM WHT SQU 2700K |
2,209 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 400mA | 85°C | 18V | 130 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HH230GLED COB XLAMP WARM WHT SQ 3000K |
4,972 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 400mA | 85°C | 18V | 130 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HH435GLED COB XLAMP WARM WHT SQU 3500K |
1,233 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HH440GLED COB XLAMP NEUT WHT SQU 4000K |
2,251 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 400mA | 85°C | 18V | 140 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HJ250GLED COB XLAMP COOL WHT SQU 5000K |
2,556 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HJ257ELED COB XLAMP COOL WHT SQU 5700K |
1,028 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0HJ265ELED COB XLAMP COOL WHT SQU 6500K |
4,472 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 400mA | 85°C | 18V | 150 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1507-0000-000F0UF427GLED COB XLAMP WARM WHT SQU 2700K |
2,277 | 2.60 |
|
Datasheet |
XLamp® CXB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 400mA | 85°C | 18V | 105 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
