LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHM-9-40-95-36-XH30-F4-3GENERATION 3 HIGH DENSITY PRODUC |
4,492 | 0.00 |
|
- |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHM-9-27-80-36-XH30-F4-3GENERATION 3 HIGH DENSITY PRODUC |
1,335 | 0.00 |
|
- |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHM-9-30-90-36-XH30-F4-3GENERATION 3 HIGH DENSITY PRODUC |
4,203 | 0.00 |
|
- |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHM-9-50-90-36-XH30-F4-3GENERATION 3 HIGH DENSITY PRODUC |
4,008 | 0.00 |
|
- |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHM-9-35-90-36-XH30-F4-3GENERATION 3 HIGH DENSITY PRODUC |
2,433 | 0.00 |
|
- |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

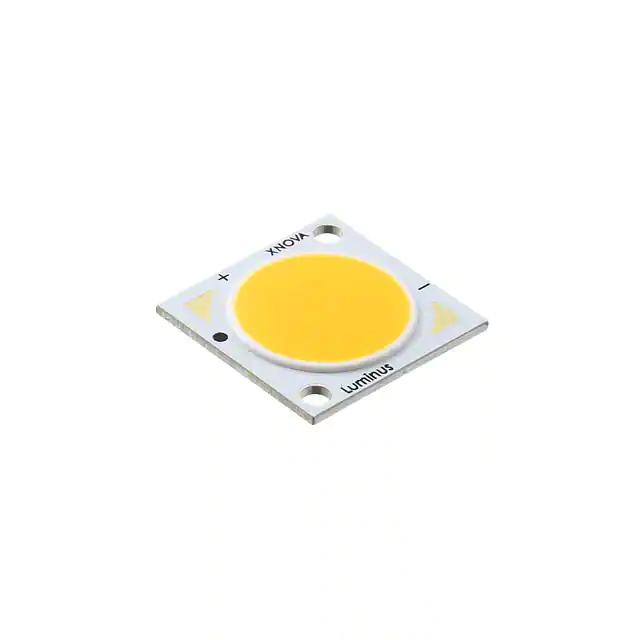

CXM-14-27-80-36-AA00-F2-3LED COB CXM-14 WARM WHT SQ 2700K |
3,142 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-30-80-36-AA00-F2-3LED COB CXM-14 WM WHT SQ 3000K |
3,410 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-27-90-36-AA00-F2-3LED COB CXM-14 WARM WHT SQ 2700K |
2,626 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-30-90-36-AA00-F2-3LED COB CXM-14 WM WHT SQ 3000K |
1,902 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-35-80-36-AA00-F2-3LED COB CXM-14 WARM WHT SQ 3500K |
4,631 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-40-80-36-AA00-F2-3LED COB CXM-14 NEUT WHT SQ 4000K |
4,450 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-50-80-36-AA00-F2-5LED COB CXM-14 COOL WHT SQ 5000K |
3,355 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 480mA | - | 35V | - | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
CXM-14-27-80-36-AC00-F2-3LED COB CXM-14 WARM WHT SQ 2700K |
2,428 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1920lm (Typ) | 480mA | 85°C | 36V | 111 lm/W | 1A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-27-90-36-AC00-F2-3LED COB CXM-14 WARM WHT SQ 2700K |
1,076 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1500lm (Typ) | 480mA | 85°C | 36V | 87 lm/W | 1A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-30-90-36-AC00-F2-3LED COB CXM-14 WM WHT SQ 3000K |
1,097 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1720lm (Typ) | 480mA | 85°C | 36V | 100 lm/W | 1A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-40-80-36-AC00-F2-3LED COB CXM-14 NEUT WHT SQ 4000K |
1,255 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2160lm (Typ) | 480mA | 85°C | 36V | 125 lm/W | 1A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-35-80-36-AC00-F2-3LED COB CXM-14 WARM WHT SQ 3500K |
1,988 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2090lm (Typ) | 480mA | 85°C | 35V | 124 lm/W | 1A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-35-90-36-AA00-F2-3LED COB CXM-14 WARM WHT SQ 3500K |
1,172 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1800lm (Typ) | 480mA | 85°C | 35V | 107 lm/W | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-35-90-36-AC00-F2-3LED COB CXM-14 WARM WHT SQ 3500K |
2,897 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1800lm (Typ) | 480mA | 85°C | 35V | 107 lm/W | 1A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-40-90-36-AA00-F2-3LED COB CXM-14 NEUT WHT SQ 4000K |
1,972 | 3.21 |
|
Datasheet |
CXM-14 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1870lm (Typ) | 480mA | 85°C | 35V | 111 lm/W | 1A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
