LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-14-35-90-36-AA10-F3-3LED COB CXM-14 GEN2 WH SQ |
3,150 | 3.36 |
|
Datasheet |
CXM-14 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1980lm (Typ) | 480mA | 85°C | 34.5V | 120 lm/W | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-40-80-36-AA10-F3-3LED COB CXM-14 GEN2 WH SQ |
1,782 | 3.36 |
|
Datasheet |
CXM-14 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2375lm (Typ) | 480mA | 85°C | 34.5V | 143 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-40-90-36-AA10-F3-3LED COB CXM-14 GEN2 WH SQ |
2,460 | 3.36 |
|
Datasheet |
CXM-14 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2055lm (Typ) | 480mA | 85°C | 34.5V | 124 lm/W | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-50-80-36-AA10-F3-5LED COB CXM-14 GEN2 WH SQ |
1,954 | 3.36 |
|
Datasheet |
CXM-14 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2440lm (Typ) | 480mA | 85°C | 34.5V | 147 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-65-80-36-AA10-F3-5LED COB CXM-14 GEN2 WH SQ |
1,392 | 3.36 |
|
Datasheet |
CXM-14 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2495lm (Typ) | 480mA | 85°C | 34.5V | 151 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-11-27-95-36-AB00-F2-3LED COB CXM-11 GEN3 WHT SQ 2700K |
4,098 | 3.36 |
|
- |
CXM-11 Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 85°C | 33.8V | - | 1.08A | 95 | 120° | - | 18.49mm L x 18.49mm W | 1.37mm | 11.71mm Dia | Flat |
|
|
CXM-11-30-80-36-AB02-F2-3LED COB SENSUS WM WHT SQ 3000K |
3,315 | 3.36 |
|
Datasheet |
Sensus™ | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1865lm (Typ) | 480mA | 85°C | 35V | 111 lm/W | 960mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-30-90-36-AB02-F2-3LED COB SENSUS WM WHT SQ 3000K |
3,281 | 3.36 |
|
Datasheet |
Sensus™ | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1580lm (Typ) | 480mA | 85°C | 35V | 94 lm/W | 960mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-30-95-36-AB00-F2-3LED COB CXM-11 GEN3 WH SQ 3000K |
1,461 | 3.36 |
|
- |
CXM-11 Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | - | 85°C | 33.8V | - | 1.08A | 95 | 120° | - | 18.49mm L x 18.49mm W | 1.37mm | 11.71mm Dia | Flat |
|
|
CXM-11-35-80-36-AB02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
4,461 | 3.36 |
|
Datasheet |
Sensus™ | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 480mA | 85°C | 35V | - | 960mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-35-90-36-AB02-F2-3LED COB SENSUS WARM WHT SQ 3500K |
4,925 | 3.36 |
|
Datasheet |
Sensus™ | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | 480mA | 85°C | 35V | - | 960mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-35-95-36-AB00-F2-3LED COB CXM-11 GEN3 WHT SQ 3500K |
2,242 | 3.36 |
|
- |
CXM-11 Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 85°C | 33.8V | - | 1.08A | 95 | 120° | - | 18.49mm L x 18.49mm W | 1.37mm | 11.71mm Dia | Flat |
|
|
CXM-11-40-95-36-AB00-F2-3LED COB CXM-11 GEN3 WHT SQ 4000K |
3,435 | 3.36 |
|
- |
CXM-11 Gen3 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | - | 85°C | 33.8V | - | 1.08A | 95 | 120° | - | 18.49mm L x 18.49mm W | 1.37mm | 11.71mm Dia | Flat |
|
|
CXM-14-50-90-36-AA10-F3-5LED COB |
1,448 | 3.36 |
|
Datasheet |
- | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

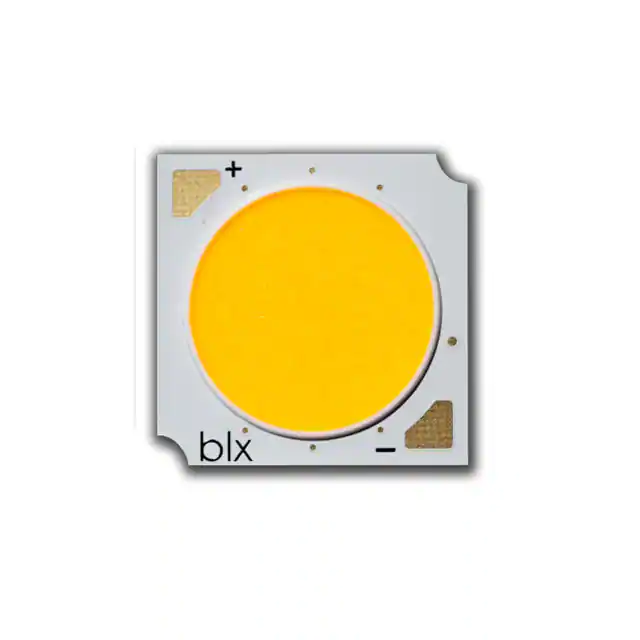

BXRE-50C2001-B-84LED COB V SER GEN 8 WHT SQ 5000K |
3,936 | 7.10 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2262lm (Typ) | 350mA | 25°C | 33.4V | 192 lm/W | - | 70 | - | - | - | - | 13.00mm Dia | Flat |
|
BXRE-30E2000-B-83LED COB V SER GEN 8 WH SQ 3000K |
2,335 | 3.46 |
|
Datasheet |
V Series™ Gen 8 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2090lm (Typ) | 350mA | 25°C | 33.4V | 178 lm/W | - | 80 | - | - | - | - | 13.00mm Dia | Flat |
|
CXB1304-0000-000N0HC230GLED COB XLAMP WARM WHT SQ 3000K |
2,870 | 3.40 |
|
Datasheet |
XLamp® CXB1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 100mA | 85°C | 36V | 127 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CMB1507-0000-000N0H0A40HLED COB XLAMP NEUT WHT SQU 4000K |
2,344 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1114lm | 200mA | 85°C | 33.5V | 166 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1507-0000-000F0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
2,111 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1086lm | 400mA | 85°C | 16.8V | 162 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1507-0000-000N0H0A30HLED COB XLAMP WARM WHT SQU 3000K |
2,522 | 0.00 |
|
Datasheet |
XLamp® CMB1507 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1086lm | 200mA | 85°C | 33.5V | 162 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
