LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNG28YZV2D2LED COB D GEN2 WARM WHT SQ 3000K |
2,410 | 3.45 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2596lm (Typ) | 720mA | 85°C | 34.6V | 104 lm/W | 1.84A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG28YZW2D2LED COB D GEN2 WARM WHT SQ 2700K |
1,165 | 3.45 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2470lm (Typ) | 720mA | 85°C | 34.6V | 99 lm/W | 1.84A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|

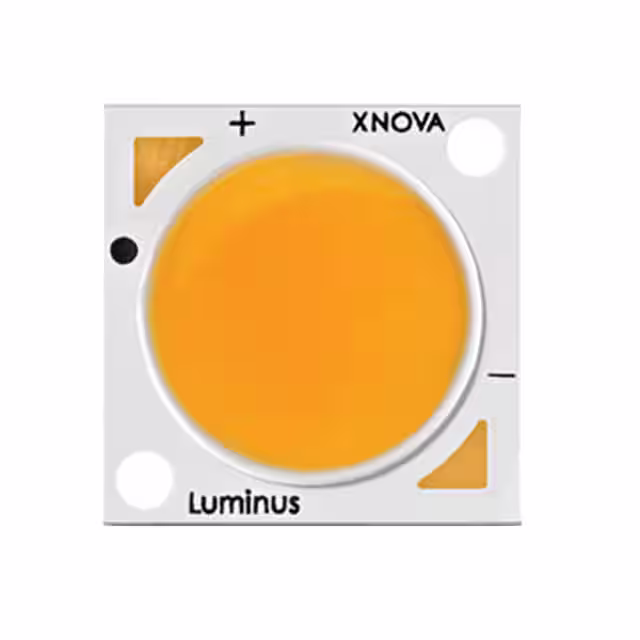

CXM-11-27-80-36-AA00-F2-3LED COB CXM-11 WM WH RECT 2700K |
1,598 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 1225lm (Typ) | 320mA | 85°C | 35V | 109 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-27-90-36-AA00-F2-3LED COB CXM-11 WM WH RECT 2700K |
3,494 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 920lm (Typ) | 320mA | 85°C | 35V | 82 lm/W | 640mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-30-80-36-AA00-F2-3LED COB CXM-11 WM WH RECT 3000K |
3,676 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1300lm (Typ) | 320mA | 85°C | 35V | 116 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-30-80-36-AA02-F2-3LED COB CXM-11 WM WH RECT 3000K |
2,897 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1300lm (Typ) | 320mA | 85°C | 35V | 116 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-30-90-36-AA00-F2-3LED COB CXM-11 WM WH RECT 3000K |
2,461 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1025lm (Typ) | 320mA | 85°C | 35V | 92 lm/W | 640mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-35-80-36-AA00-F2-3LED COB CXM-11 WM WH RECT 3500K |
2,612 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1290lm (Typ) | 320mA | 85°C | 35V | 115 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-35-90-36-AA00-F2-3LED COB CXM-11 WM WH RECT 3500K |
4,677 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1150lm (Typ) | 320mA | 85°C | 35V | 103 lm/W | 640mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-40-80-36-AA00-F2-3LED COB CXM-11 WHT RECT 4000K |
2,552 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1385lm (Typ) | 320mA | 85°C | 35V | 123 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-40-90-36-AA00-F2-3LED COB CXM-11 WHT RECT 4000K |
1,728 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1330lm (Typ) | 320mA | 85°C | 35V | 119 lm/W | 640mA | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-50-80-36-AA00-F2-5LED COB CXM-11 CL WH RECT 5000K |
3,984 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 1335lm (Typ) | 320mA | 85°C | 35V | 119 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
CXM-11-65-80-36-AA00-F2-5LED COB CXM-11 CL WH RECT 6500K |
1,737 | 3.59 |
|
- |
CXM-11 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Rectangle | 1335lm (Typ) | 320mA | 85°C | 35V | 119 lm/W | 640mA | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 11.00mm Dia | Flat |
|
|
L2C4-30802L04F1200LED COB WARM WHT SQU 3000K |
3,732 | 0.00 |
|
Datasheet |
LUXEON CX Plus CoB Gen 2 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2319lm (Typ) | 450mA | 85°C | 35V | 147 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.50mm | 12.00mm Dia | Flat |
|
|
L2C4-40802L04F1200LED COB NEUT WHT SQU 4000K |
4,451 | 0.00 |
|
Datasheet |
LUXEON CX Plus CoB Gen 2 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2464lm (Typ) | 450mA | 85°C | 35V | 156 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.50mm | 12.00mm Dia | Flat |
|
|
L2C4-35802L04F1200LED COB WARM WHT SQU 3500K |
2,060 | 0.00 |
|
Datasheet |
LUXEON CX Plus CoB Gen 2 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2342lm (Typ) | 450mA | 85°C | 35V | 149 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.50mm | 12.00mm Dia | Flat |
|
|
L2C4-50802L04F1200LED COB CL WHT SQUARE 5000K |
3,949 | 0.00 |
|
Datasheet |
LUXEON CX Plus CoB Gen 2 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 2464lm (Typ) | 450mA | 85°C | 35V | 156 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.50mm | 12.00mm Dia | Flat |
|
|
L2C4-27802L04F1200LED COB WARM WHT SQU 2700K |
4,563 | 0.00 |
|
Datasheet |
LUXEON CX Plus CoB Gen 2 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2137lm (Typ) | 450mA | 85°C | 35V | 136 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.50mm | 12.00mm Dia | Flat |
|
|
CLU02Q-1204E1-272H6X3LED COB CLU02Q WARM WHT SQ 2700K |
1,967 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1600lm | 360mA | 85°C | 33.8V | 122 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-572H5X3LED COB CLU02Q COOL WHT SQ 5700K |
3,149 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 2-Step MacAdam Ellipse | - | Square | 1929lm | 360mA | 85°C | 33.8V | 147 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
