LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNH28YZV3D2LED COB D GEN2 WM WHT SQ 3000K |
3,775 | 4.26 |
|
Datasheet |
COB D Gen2 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3212lm (Typ) | 900mA | 85°C | 34.6V | 103 lm/W | 2.3A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNH28YZW3D2LED COB D GEN2 WARM WHT SQ 2700K |
3,855 | 4.26 |
|
Datasheet |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3057lm (Typ) | 900mA | 85°C | 34.6V | 98 lm/W | 2.3A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
CXA1512-0000-000N00K427FLED COB XLAMP WARM WHT SQU 2700K |
2,950 | 4.28 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N00M235FLED COB XLAMP WARM WHT SQU 3500K |
2,188 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 37V | 111 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0UJ230FLED COB XLAMP WARM WHT SQU 3000K |
1,091 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 37V | 83 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0UH427FLED COB XLAMP WARM WHT SQU 2700K |
1,890 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1010lm (970lm ~ 1040lm) | 350mA | 85°C | 37V | 78 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N00M230FLED COB XLAMP WARM WHT SQU 3000K |
1,176 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 37V | 111 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000F00K427FLED COB XLAMP WARM WHT SQU 2700K |
3,213 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000F00M230FLED COB XLAMP WARM WHT SQU 3000K |
3,538 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 700mA | 85°C | 18V | 114 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000F00M235FLED COB XLAMP WARM WHT SQU 3500K |
3,051 | 3.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 700mA | 85°C | 18V | 114 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CMB1516-0000-000N0U0A40HLED COB XLAMP NEUT WHT SQU 4000K |
3,641 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2097lm | 450mA | 85°C | 34V | 137 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1516-0000-000N0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
4,052 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2065lm | 450mA | 85°C | 34V | 135 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1516-0000-000N0U0A27HLED COB XLAMP WARM WHT SQU 2700K |
4,337 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1983lm | 450mA | 85°C | 34V | 130 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|
|
CMB1516-0000-000N0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
4,530 | 0.00 |
|
Datasheet |
XLamp® CMB1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2090lm | 450mA | 85°C | 34V | 137 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.75mm | 9.00mm Dia | Flat |
|

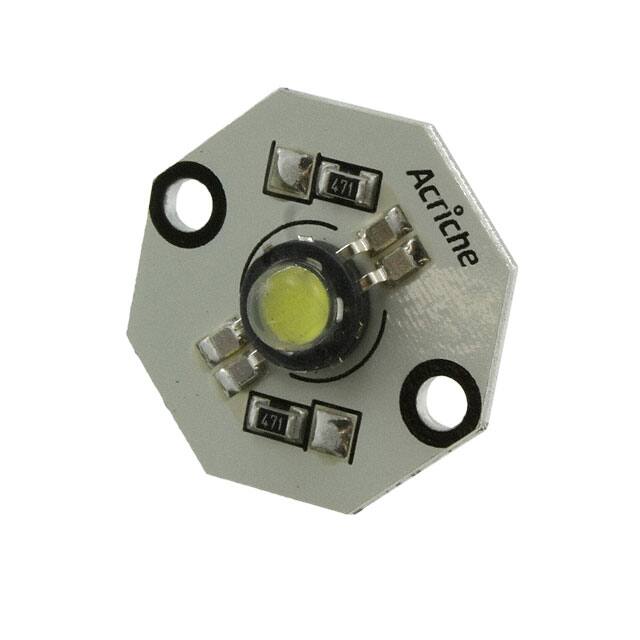

AW2214LED ENG ACRICHE A2 STARBRD |
4,641 | 0.00 |
|
Datasheet |
Acriche A2 | Tape & Reel (TR) | Obsolete | LED Engine | White, Cool | 6300K | - | Starboard | 80lm (Typ) | 20mA | 25°C | - | - | 20mA | 70 (Typ) | 110° | - | 25.00mm L x 25.00mm W | - | - | Domed |
|
|
CXM-9-40-80-36-AA40-F5-2GENERATION 4 STANDARD COB PRODUC |
4,613 | 0.00 |
|
Datasheet |
CXM-9 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1895lm (Typ) | 360mA | 85°C | 33.5V | 157 lm/W | 1.1A | 80 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.80mm Dia | Flat |
|
|
CXM-9-50-70-36-AA40-F5-2GENERATION 4 STANDARD COB PRODUC |
4,145 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-9-65-70-36-AA40-F5-2GENERATION 4 STANDARD COB PRODUC |
1,885 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-9-65-80-36-AA40-F5-2GENERATION 4 STANDARD COB PRODUC |
3,993 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-9-50-90-36-AA40-F5-2GENERATION 4 STANDARD COB PRODUC |
1,308 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
