LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8V17256CWWLED MOD V-SER GEN2 LNR 3000K |
606 | 7.77 |
|
Datasheet |
V-Series Gen2 | Bulk | Active | LED Module | White, Cool | 3000K | - | Linear Light Strip | 2680lm (Typ) | 700mA | 50°C | 23.2V | 165 lm/W | 900mA | 80 | - | - | 560.00mm L x 18.00mm W | 5.50mm | - | Flat |
|
|
SI-B8R071B00WWLED MOD SE WHT LNR STRP 5000K |
157 | 8.61 |
|
Datasheet |
Standard Back-lit S.E | Bulk | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 1300lm (Typ) | 176mA | 40°C | 41.5V | 178 lm/W | 400mA | 80 | 160° | - | 1100.00mm L x 13.00mm W | 6.00mm | - | Flat |
|
|
SI-B8T071B00WWLED MOD SE WHT LNR STRP 4000K |
144 | 8.61 |
|
Datasheet |
Standard Back-lit S.E | Bulk | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1280lm (Typ) | 176mA | 40°C | 41.5V | 175 lm/W | 400mA | 80 | 160° | - | 1100.00mm L x 13.00mm W | 6.00mm | - | Flat |
|
SI-B8V114280WWLED MOD LTM282CG2 WARM WHT STRIP |
367 | 6.71 |
|
Datasheet |
LT-M282C_G2 | Tray | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 1580lm (Typ) | 450mA | 50°C | 24.8V | 142 lm/W | 540mA | 80 | 115° | With Connector | 275.00mm L x 18.00mm W | 4.40mm | - | Flat |
|
|
SI-B8U123560WWLED MOD V SER GEN3 LNR 3500K |
255 | 7.93 |
|
Datasheet |
V Gen3 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 2110lm (Typ) | 530mA | 50°C | 22.2V | 179 lm/W | 1.8A | 80 | 118° | - | 560.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
|
SI-B8R123560WWLED MOD V GEN3 WH LNR STR 5000K |
192 | 7.93 |
|
- |
V Gen3 | Tray | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 2200lm (Typ) | 530mA | 50°C | 22.2V | 186 lm/W | 1.8A | 80 | 118° | - | 560.00mm L x 18.00mm W | 3.70mm | - | Flat |
|
SPHWHAHDNL251ZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
153 | 10.25 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 8905lm (Typ) | 1.08A | 85°C | 51.1V | 161 lm/W | 2.16A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZU3DBLED COB D GEN2 WARM WHT SQ 3500K |
160 | 4.45 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5100lm (Typ) | 1.08A | 85°C | 34V | 139 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZW3DBLED COB D GEN2 WARM WHT SQ 2700K |
160 | 4.45 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4660lm (Typ) | 1.08A | 85°C | 34V | 127 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZR3DBLED COB D GEN2 COOL WHT SQ 5000K |
160 | 10.25 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9475lm (Typ) | 1.08A | 85°C | 51.1V | 171 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
BXRC-57C1001-C-83LED COB VERO 10C WH STARBD 5700K |
191 | 7.29 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Starboard | 1728lm (Typ) | 300mA | 25°C | 30.7V | 188 lm/W | 1A | 70 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
KT CULPM1.13-NQNU-34-0-1400-R18LOW-PROFILE, ULTRA-HIGH BRIGHTNE |
1,981 | 0.00 |
|
- |
OSRAM OSTAR® Projection Compact | Tape & Reel (TR) | Last Time Buy | LED Module | Green | - | 529nm (523nm ~ 535nm) | Square | 377lm (304lm ~ 450lm) | 1.4A | 25°C | 2.8V | 96 lm/W | 5A | - | 110° | - | 4.00mm L x 4.00mm W | 0.76mm | 1.59mm L x 1.25mm W | Flat |
|
|
BXRC-50G1001-C-83LED COB VERO 10C WH STARBD 5000K |
157 | 7.29 |
|
Datasheet |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1477lm (Typ) | 300mA | 25°C | 30.7V | 160 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
|
SPHWHAHDNC27YZWRT1LED COB T-SERIES WHITE SQ 3850K |
688 | 7.36 |
|
Datasheet |
COB T-Series | Bulk | Active | Chip On Board (COB) | White, Warm / White, Cool | 3850K (2700K ~ 5000K) 5-Step MacAdam Ellipse | - | Square | 1069lm (988lm ~ 1149lm) | - | 25°C | 35.5V | - | 400mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.60mm | - | Flat |
|
|
SPHWHAHDNK27YZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
155 | 7.43 |
|
Datasheet |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5213lm (Typ) | 1.08A | 85°C | 34V | 142 lm/W | 2.16A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

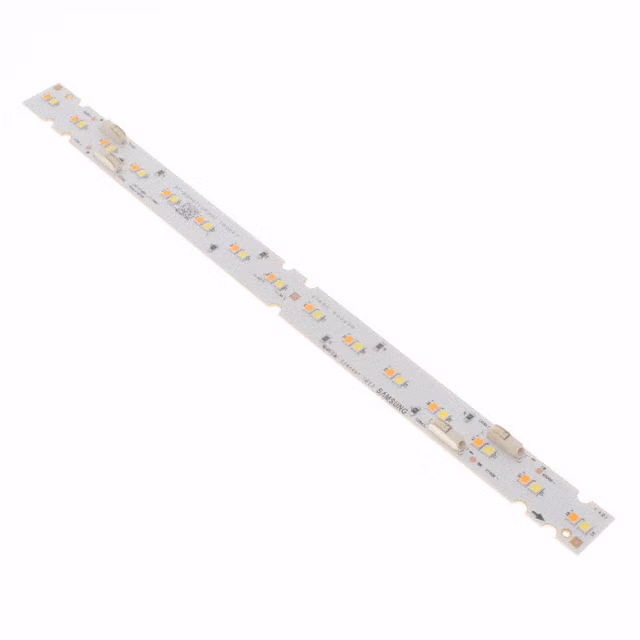

SI-B8A071280WWLED MOD T WH LNR LGT STRP 6500K |
185 | 7.15 |
|
Datasheet |
T | Tray | Obsolete | LED Module | White, Warm / White, Cool | 2700K ~ 6500K | - | Linear Light Strip | - | 750mA | 50°C | 9V | - | - | - | - | - | 275.00mm L x 16.00mm W | 5.80mm | - | Flat |
|
|
SI-N8V1254B0WWLED MOD CM 110MM WHT RND 3000K |
117 | 7.20 |
|
Datasheet |
CM 110mm G5 | Bulk | Obsolete | LED Module | White, Warm | 3000K | - | Round | 2130lm (Typ) | 430mA | 25°C | 27.8V | 178 lm/W | - | 80 | 120° | With Connector | 110.00mm Dia | 5.20mm | - | Flat |
|
|
SPHWHSHDNH27YZT3D4LED COB D GEN4 WHT SQUARE 4000K |
250 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5058lm (Typ) | 900mA | 85°C | 33.6V | 167 lm/W | 2.3A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
|
SPHWHSHDNH27YZU3D4LED COB D GEN4 WHT SQUARE 3500K |
240 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5041lm (Typ) | 900mA | 85°C | 33.6V | 167 lm/W | 2.3A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
|
|
SPHWHSHDNH27YZV3D4LED COB D GEN4 WHT SQUARE 3000K |
230 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4936lm (Typ) | 900mA | 85°C | 33.6V | 163 lm/W | 2.3A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.70mm | 14.50mm Dia | Flat |
