LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1512-0000-000F0YH230FLED COB XLAMP WARM WHT SQU 3000K |
3,100 | 4.17 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 700mA | 85°C | 18V | 74 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000F0YH40E7LED COB XLAMP WARM WHT SQ 3000K |
1,625 | 4.17 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1010lm (970lm ~ 1040lm) | 700mA | 85°C | 18V | 80 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CXA1820-0000-000N00R40E5LED COB XLAMP NEUT WHT SQ 4000K |
1,828 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 37V | 132 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0HR20E5LED COB XLAMP NEUT WHT SQ 4000K |
3,263 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 37V | 123 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|

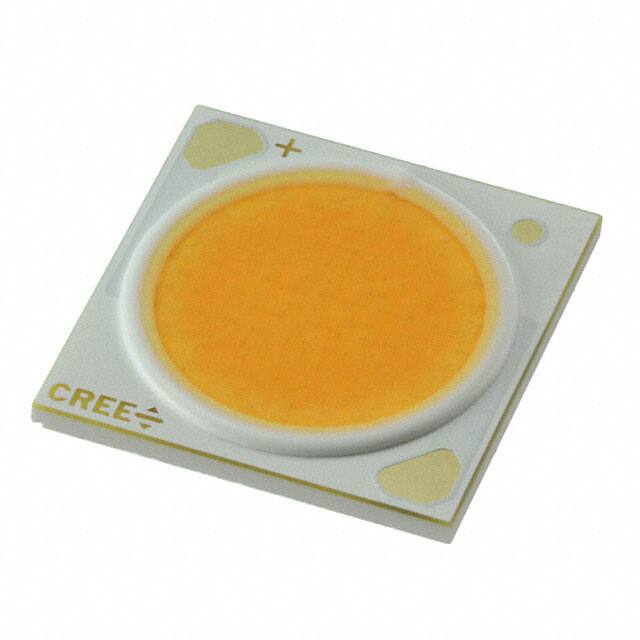

CXA1820-0000-000N00Q227GLED COB XLAMP WARM WHT SQU 2700K |
1,830 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2180lm (2100lm ~ 2260lm) | 550mA | 85°C | 36V | 110 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N00Q430GLED COB XLAMP WARM WHT SQ 3000K |
2,364 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N00Q435GLED COB XLAMP WARM WHT SQU 3500K |
1,332 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0HQ440GLED COB XLAMP NEUT WHT SQU 4000K |
2,565 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0HR250GLED COB XLAMP COOL WHT SQU 5000K |
3,832 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0UP240GLED COB XLAMP NEUT WHT SQU 4000K |
2,465 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 550mA | 85°C | 36V | 96 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0UP450GLED COB XLAMP COOL WHT SQU 5000K |
3,828 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 550mA | 85°C | 36V | 103 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0YM427GLED COB XLAMP WARM WHT SQU 2700K |
2,746 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 550mA | 85°C | 36V | 78 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0YN230GLED COB XLAMP WARM WHT SQ 3000K |
1,246 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 550mA | 85°C | 36V | 83 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0YN435GLED COB XLAMP WARM WHT SQU 3500K |
4,992 | 4.17 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.05A | 93 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
CXB1816-0000-000N0HQ450ELED COB XLAMP COOL WHT SQU 5000K |
4,224 | 4.17 |
|
Datasheet |
XLamp® CXB1816 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1816-0000-000N0HQ457ELED COB XLAMP COOL WHT SQU 5700K |
1,143 | 4.17 |
|
Datasheet |
XLamp® CXB1816 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1816-0000-000N0HQ465ELED COB XLAMP COOL WHT SQU 6500K |
4,045 | 4.17 |
|
Datasheet |
XLamp® CXB1816 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 450mA | 85°C | 36V | 144 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
CXB1512-0000-00PF0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
3,794 | 8.00 |
|
Datasheet |
XLamp® CXB1512 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1705lm (Typ) | 700mA | 85°C | 18V | 135 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1512-0000-00PF0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
1,838 | 0.00 |
|
- |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1676lm | 700mA | 85°C | 17.2V | 139 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXB1512-0000-00PN0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
4,807 | 0.00 |
|
- |
XLamp® CXB1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1676lm | 350mA | 85°C | 34.3V | 140 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
