LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-65E2001-C-74-SELED COB VERO SE 13 WHT RND 6500K |
4,564 | 5.09 |
|
Datasheet |
Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Round | 3335lm (Typ) | 630mA | 85°C | 33.9V | 156 lm/W | 1.26A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia | Flat |
|

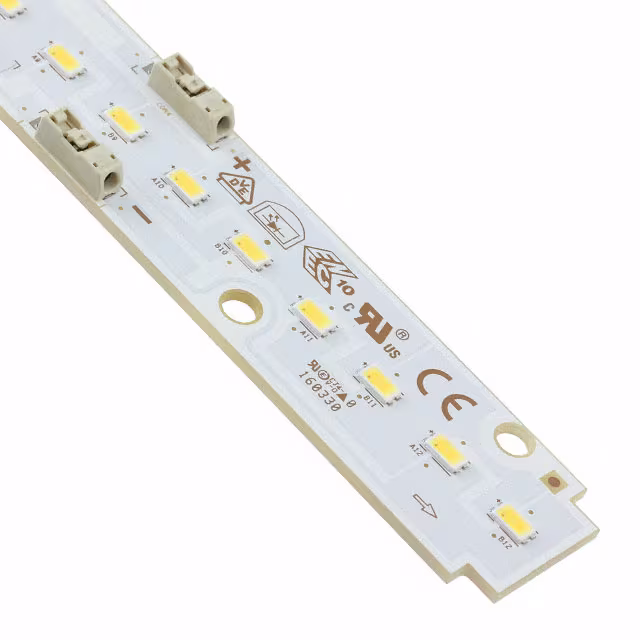

SI-B8R071280LDLED MOD LT-S282N LNR STRP 5000K |
4,156 | 8.66 |
|
- |
LT-S282N | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1140lm (Typ) | 200mA | 50°C | 35.2V | 162 lm/W | 360mA | 80 | 115° | With Connector | 280.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8T071280LDLED MOD LT-S282N LNR STRP 4000K |
2,087 | 8.66 |
|
- |
LT-S282N | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1120lm (Typ) | 200mA | 50°C | 35.2V | 159 lm/W | 360mA | 80 | 115° | With Connector | 280.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8U071280LDLED MOD LT-S282N LNR STRP 3500K |
4,970 | 5.19 |
|
- |
LT-S282N | Tray | Not For New Designs | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1090lm (Typ) | 200mA | 50°C | 35.2V | 155 lm/W | 360mA | 80 | 115° | With Connector | 280.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
|
SI-B8V071280LDLED MOD LT-S282N LNR STRP 3000K |
1,586 | 8.66 |
|
- |
LT-S282N | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1080lm (Typ) | 200mA | 50°C | 35.2V | 153 lm/W | 360mA | 80 | 115° | With Connector | 280.00mm L x 24.00mm W | 5.80mm | - | Flat |
|
BXRC-40H1000-C-72VERO 10C NEUTRAL WHITE LED ARRAY |
4,023 | 0.00 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1330lm (Typ) | 360mA | 85°C | 33.8V | 109 lm/W | 720mA | 97 (Typ) | 120° | Dimming | 19.00mm Dia | 1.80mm | 9.90mm Dia | Flat |
|
|
CMT1412-0000-000N0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
2,358 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1252lm (Typ) | 350mA | 85°C | 34.2V | 48 lm/W | 750mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0Z0A35HLED COB XLAMP WARM WHT SQU 3500K |
2,722 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1339lm (Typ) | 350mA | 85°C | 34.2V | 52 lm/W | 750mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0Z0A30HLED COB XLAMP WARM WHT SQU 3000K |
1,534 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1252lm (Typ) | 350mA | 85°C | 34.2V | 48 lm/W | 750mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0Z0A27HLED COB XLAMP WARM WHT SQU 2700K |
2,503 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1185lm (Typ) | 350mA | 85°C | 34.2V | 46 lm/W | 750mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0Z0AL5ALED COB XLAMP NEUT WHT SQU 4000K |
2,917 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1376lm (Typ) | 350mA | 85°C | 34.2V | 53 lm/W | 750mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0H0AL7BLED COB XLAMP WARM WHT SQU 3000K |
2,076 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1690lm (Typ) | 350mA | 85°C | 34.2V | 65 lm/W | 750mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CMT1412-0000-000N0H0A22GLED COB XLAMP COOL WHT SQU 2700K |
4,629 | 0.00 |
|
Datasheet |
XLamp® CMT1412 | Bulk | Obsolete | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Square | 1429lm (Typ) | 350mA | 85°C | 34.2V | 55 lm/W | 750mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia | Flat |
|
|
CLU7A3-0403E1-353H5X3LED COB CLU7A3 WARM WHT SQ 3500K |
3,528 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 798lm (Typ) | 525mA | 85°C | 12.2V | 116 lm/W | 900mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
CXM-14-30-80-36-AC02-F2-2LED COB CXM-14 WARM WHT SQ 3000K |
3,917 | 5.07 |
|
- |
CXM-14 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2030lm (Typ) | 480mA | 85°C | 35V | 121 lm/W | 1A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
CXM-14-30-90-36-AC02-F2-2LED COB SENSUS WARM WHT SQ 3000K |
4,698 | 5.07 |
|
- |
Sensus™ | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1635lm (Typ) | 480mA | 85°C | 35V | 97 lm/W | 1A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 13.50mm Dia | Flat |
|
|
SPHWHAHDNF2VYZTSD2Linear IC's |
2,740 | 0.00 |
|
Datasheet |
COB R | Bulk | Last Time Buy | Chip On Board (COB) | White | - | - | Square | 1412lm (Typ) | 540mA | 65°C | 34.6V | 76 lm/W | 1.38A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CHA0612-R160-000N0U0A27GLED COB XLAMP WARM WHT SQU 2700K |
2,606 | 0.00 |
|
Datasheet |
XLamp® CHA0612 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1307lm | 350mA | 85°C | 36V | 104 lm/W | 600mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
CHA0612-R160-000N0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
3,809 | 0.00 |
|
Datasheet |
XLamp® CHA0612 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1441lm (Typ) | 350mA | 85°C | 36V | 114 lm/W | 600mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 6.00mm Dia | Flat |
|
|
CHA0612-R160-00PF0U0A27GXLAMP CHA LED WHITE PRO9 |
2,230 | 0.00 |
|
Datasheet |
XLamp® CHA0612 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 700mA | 85°C | 18V | - | 1.2A | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 6.00mm Dia | Flat |
