LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-18-65-80-36-AA00-F2-5LED COB CXM-18 COOL WHT SQ 6500K |
1,247 | 5.35 |
|
Datasheet |
CXM-18 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3690lm (Typ) | 800mA | 85°C | 35V | 132 lm/W | 1.6A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
CXM-18-50-90-36-AA00-F2-5LED COB CXM-18 COOL WHT SQ 5000K |
3,053 | 5.35 |
|
Datasheet |
CXM-18 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3190lm (Typ) | 800mA | 85°C | 35V | 114 lm/W | 1.6A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-40-70-36-AA00-F2-3LED COB CXM-18 NEUT WHT SQ 4000K |
2,522 | 5.35 |
|
- |
CXM-18 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3600lm (Typ) | 800mA | 85°C | 35V | 129 lm/W | 1.6A | 70 | 120° | With Connector | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-50-70-36-AA00-F2-3LED COB CXM-18 WARM WHT SQ 5000K |
2,451 | 5.35 |
|
- |
CXM-18 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 5000K 3-Step MacAdam Ellipse | - | Square | 3690lm (Typ) | 800mA | 85°C | 35V | 132 lm/W | 1.6A | 70 | 120° | With Connector | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-50-70-36-AA00-F2-5LED COB CXM-18 WARM WHT SQ 5000K |
3,689 | 5.35 |
|
- |
CXM-18 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 5000K 3-Step MacAdam Ellipse | - | Square | 3690lm (Typ) | 800mA | 85°C | 35V | 132 lm/W | 1.6A | 70 | 120° | With Connector | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|

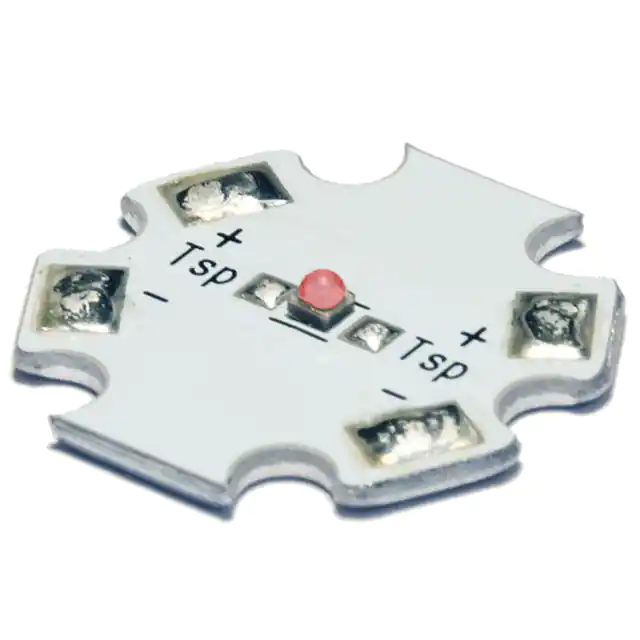

XQEEPR-00-0000-000000A01-SB01LED MOD XLAMP RED STARBOARD |
2,093 | 0.00 |
|
Datasheet |
XLamp® XQ-E | Tray | Active | LED Module | Red | - | 660nm (650nm ~ 670nm) | Starboard | - | 350mA | 25°C | 2.1V | - | 1A | - | 130° | - | - | - | - | Domed |
|
CXA1830-0000-000N00T20E5LED COB XLAMP NEUT WHT SQ 4000K |
2,399 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3320lm (3220lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.4A | - | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N0HS40E3LED COB XLAMP COOL WHT SQ 5000K |
4,718 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 3060lm (2990lm ~ 3220lm) | 800mA | 85°C | 37V | 103 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N00T40E1LED COB XLAMP COOL WHT SQ 6500K |
3,393 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 37V | 120 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N00T40E2LED COB XLAMP COOL WHT SQ 5700K |
1,810 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 37V | 120 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N00S427GLED COB XLAMP WARM WHT SQU 2700K |
1,872 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 800mA | 85°C | 36V | 107 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N00T235GLED COB XLAMP WARM WHT SQU 3500K |
2,931 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N0UR440GLED COB XLAMP NEUT WHT SQU 4000K |
4,037 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 800mA | 85°C | 36V | 93 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA1830-0000-000N0US250GLED COB XLAMP COOL WHT SQU 5000K |
2,396 | 4.51 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 36V | 100 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
CXB1820-0000-000N0BS440ELED COB XLAMP NEUT WHT SQU 4000K |
2,868 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 550mA | 85°C | 36V | 156 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0BS450ELED COB XLAMP COOL WHT SQU 5000K |
2,152 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 550mA | 85°C | 36V | 156 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0BS457ELED COB XLAMP COOL WHT SQU 5700K |
1,158 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 550mA | 85°C | 36V | 156 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0BS465ELED COB XLAMP COOL WHT SQU 6500K |
2,333 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 3095lm (2990lm ~ 3200lm) | 550mA | 85°C | 36V | 156 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HR230GLED COB XLAMP WARM WHT SQ 3000K |
3,192 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HS250ELED COB XLAMP COOL WHT SQU 5000K |
3,961 | 4.51 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 146 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
