LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL-Z7T4N90LHWWLinear IC's |
118 | 0.00 |
|
Datasheet |
RM16_Z | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 8780lm (Typ) | 1.05A | 60°C | 46.9V | 178 lm/W | 1.8A | 70 | 120° | - | 225.00mm L x 50.00mm W | 6.00mm | - | Flat |
|
|
SPHWHSHDNM271ZR3D4LED COB D GEN4 WHT SQUARE 5000K |
160 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 13129lm (Typ) | 1.62A | 85°C | 50.5V | 160 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHSHDNM271ZT3D4LED COB D GEN4 WHT SQUARE 4000K |
160 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 13002lm (Typ) | 1.62A | 85°C | 50.5V | 159 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHSHDNM271ZV3D4LED COB D GEN4 WHT SQUARE 3000K |
160 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12258lm (Typ) | 1.62A | 85°C | 50.5V | 150 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHSHDNM271ZW3D4LED COB D GEN4 WHT SQUARE 2700K |
159 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 11607lm (Typ) | 1.62A | 85°C | 50.5V | 142 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHSHDNM271ZU3D4LED COB D GEN4 WHT SQUARE 3500K |
156 | 0.00 |
|
Datasheet |
COB D Gen4 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12436lm (Typ) | 1.62A | 85°C | 50.5V | 152 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
LXK8-PW40-0016ALED MOD LUXEON K WH STARBRD |
169 | 19.03 |
|
Datasheet |
LUXEON K | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1860lm (1680lm ~ 2010lm) | 350mA | 85°C | 42V | 127 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - | Domed |
|
|
BXRE-35G65F0-C-83LED COB V22 F90 ARRAY SQ 3500K |
115 | 0.00 |
|
Datasheet |
V22 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | 21445lm | - | 85°C | 57V | 139 lm/W | 2.7A | 90 | 120° | Dimming | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
SL-Z7T6NA0LHWWLinear IC's |
223 | 0.00 |
|
Datasheet |
RM24_P | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | 11690lm (Typ) | 1.4A | 60°C | 46.2V | 181 lm/W | 2.7A | 70 | 120° | - | 148.00mm L x 47.00mm W | 4.40mm | - | Flat |
|
|
BXRE-30G65F0-C-83LED COB V22 F90 ARRAY SQ 3000K |
144 | 0.00 |
|
Datasheet |
V22 F90 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 21233lm | - | 85°C | 57V | 138 lm/W | 2.7A | 90 | 120° | Dimming | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
BXRE-50G65F0-C-83LED COB V22 F90 ARRAY SQ 5000K |
108 | 0.00 |
|
Datasheet |
V22 F90 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 11427lm (Typ) | - | 25°C | 52V | 183 lm/W | 1.2A | 90 | 120° | Dimming | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
SI-B8T321560WWLinear IC's |
138 | 0.00 |
|
Datasheet |
H inFlux | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 6360lm (Typ) | 1.43A | 55°C | 22.2V | 200 lm/W | 2.2A | 80 | 118° | - | 560.00mm L x 24.00mm W | 5.50mm | - | Flat |
|
|
SI-B9V222B2HUSLED MOD H-SER WH LNR STRP 3000K |
116 | 20.45 |
|
Datasheet |
H-Series Gen4 | Bulk | Obsolete | LED Module | White, Warm | 3000K | - | Linear Light Strip | 3250lm (Typ) | 960mA | 40°C | 22V | 154 lm/W | 3.7A | 90 | - | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|

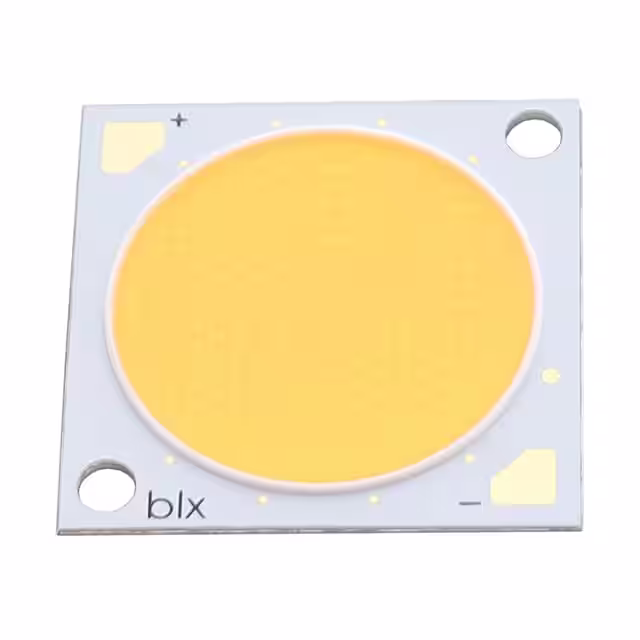

BXRE-27G65H0-C-83LED COB V22 WARM WHT SQU 2700K |
122 | 20.57 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 8972lm (Typ) | 1.2A | 25°C | 50.7V | 147 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
SI-B8V221B2HUSLED MOD LT-HB22D LNR STRP 3000K |
199 | 20.64 |
|
Datasheet |
LT-HB22D | Bulk | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 3870lm (Typ) | 960mA | 50°C | 22.5V | 179 lm/W | - | 80 | - | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

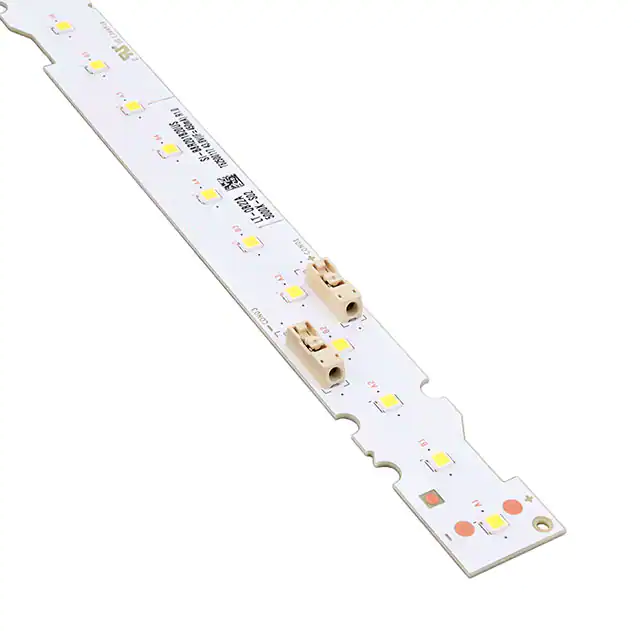

SI-B8R201B20USLED ENG LT-QB22A LNR STRP 5000K |
532 | 20.79 |
|
Datasheet |
LT-QB22A | Tray | Active | LED Engine | White, Cool | 5000K | - | Linear Light Strip | 4000lm (Typ) | 450mA | 40°C | 43.8V | 203 lm/W | - | 80 | - | - | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
SI-B8U341B20WWLED MOD MSERIES 4FTC 3500K STRIP |
118 | 22.81 |
|
Datasheet |
M Series 4ft_C | Bulk | Obsolete | LED Module | White, Warm | 3500K | - | Linear Light Strip | 5150lm (Typ) | 1.4A | 50°C | 24V | 153 lm/W | 2.16A | 80 | 115° | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

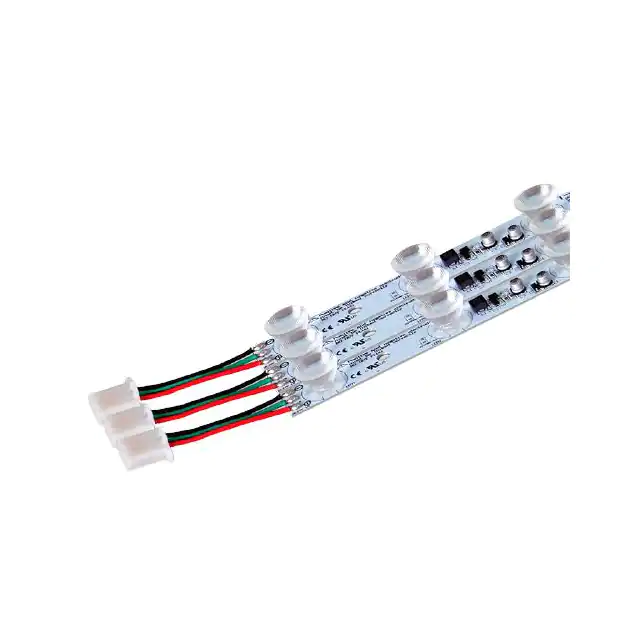

ALS-24V-W23C-300-5LED ENG WH LNR LGT STRIP 6500K |
892 | 17.00 |
|
Datasheet |
- | Strip | Active | LED Engine | White | 6500K | - | Linear Light Strip | - | - | - | - | - | - | - | 13° x 39° | - | 300.00mm L | - | - | - |
|
|
SPHWHAHDNH25Y3WPT1LED COB T-SERIES WHITE SQ 4600K |
538 | 20.92 |
|
Datasheet |
COB T-Series | Bulk | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 4706lm (4405lm ~ 5006lm) | - | 25°C | 35.5V | - | 1.25mA | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.60mm | - | Flat |
|
|
SI-B8V321560WWLinear IC's |
193 | 0.00 |
|
Datasheet |
H inFlux | Bulk | Last Time Buy | LED Module | White, Warm | 3000K | - | Linear Light Strip | 6020lm (Typ) | 1.43A | 55°C | 22.2V | 190 lm/W | 2.2A | 80 | 118° | - | 560.00mm L x 24.00mm W | 5.50mm | - | Flat |
