LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1310-0000-000N0HK20E5LED COB XLAMP NEUT WHT SQ 4000K |
1,239 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 36V | 99 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
CXA1310-0000-000F00H427GLED COB XLAMP WARM WHT SQU 2700K |
3,309 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 700mA | 85°C | 18V | 80 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J230GLED COB XLAMP WARM WHT SQ 3000K |
3,827 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 700mA | 85°C | 18V | 86 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J235GLED COB XLAMP WARM WHT SQU 3500K |
4,208 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 700mA | 85°C | 18V | 86 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0HJ440GLED COB XLAMP NEUT WHT SQU 4000K |
4,560 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0HJ450GLED COB XLAMP COOL WHT SQU 5000K |
1,177 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 92 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0YF427GLED COB XLAMP WARM WHT SQU 2700K |
3,204 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 700mA | 85°C | 18V | 60 lm/W | 1.05A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0YG230GLED COB XLAMP WARM WHT SQ 3000K |
3,489 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 700mA | 85°C | 18V | 64 lm/W | 1.05A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F0YG235GLED COB XLAMP WARM WHT SQU 3500K |
2,834 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 700mA | 85°C | 18V | 64 lm/W | 1.05A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00H427GLED COB XLAMP WARM WHT SQU 2700K |
2,705 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 350mA | 85°C | 36V | 80 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00J230GLED COB XLAMP WARM WHT SQ 3000K |
4,022 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00J235GLED COB XLAMP WARM WHT SQU 3500K |
2,994 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N0HJ440GLED COB XLAMP NEUT WHT SQU 4000K |
1,906 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 36V | 92 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N0HJ450GLED COB XLAMP COOL WHT SQU 5000K |
3,548 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 36V | 92 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N0YF427GLED COB XLAMP WARM WHT SQU 2700K |
3,022 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 350mA | 85°C | 36V | 60 lm/W | 525mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N0YG230GLED COB XLAMP WARM WHT SQ 3000K |
3,468 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 350mA | 85°C | 36V | 64 lm/W | 525mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N0YG235GLED COB XLAMP WARM WHT SQU 3500K |
3,273 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 350mA | 85°C | 36V | 64 lm/W | 525mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|

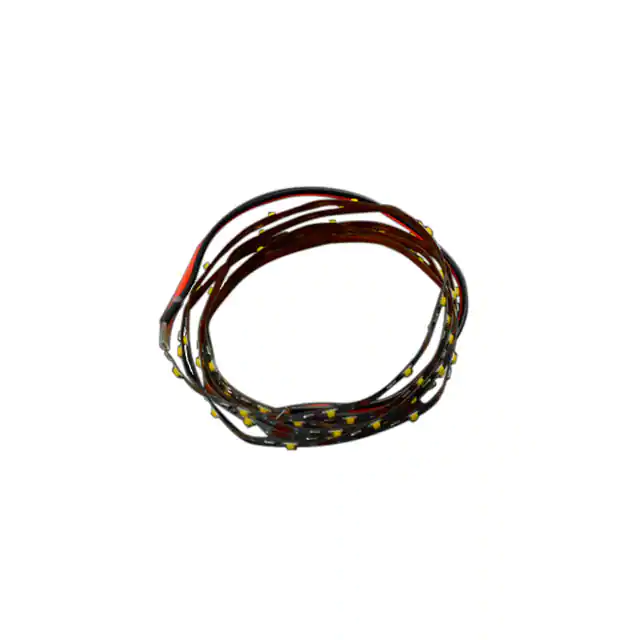

FIT0836LED MOD WARM WHT LINEAR STRIP |
4,964 | 5.90 |
|
- |
- | Bulk | Active | LED Module | White, Warm | - | - | Linear Light Strip, Flexible | - | - | - | 5V | - | - | - | - | - | 1000.00mm L x 2.50mm W | 1.00mm | - | Flat |
|

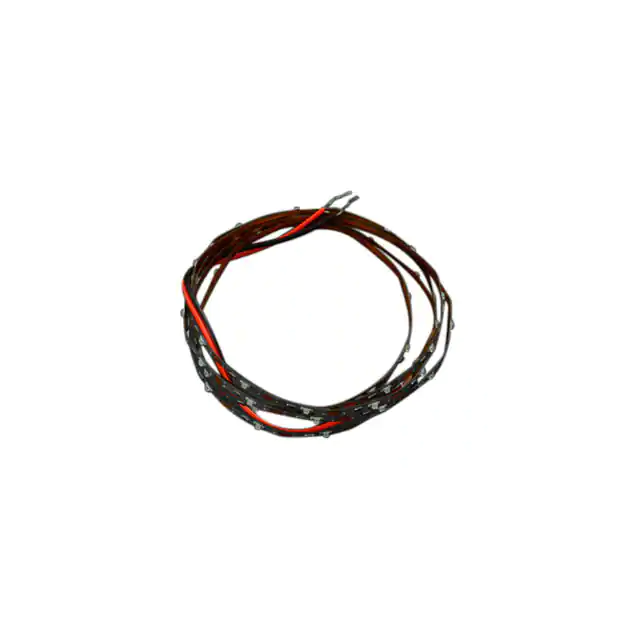

FIT0839LED MOD GREEN LINEAR STRIP 5V |
2,000 | 5.90 |
|
- |
- | Bulk | Active | LED Module | Green | - | - | Linear Light Strip, Flexible | - | - | - | 5V | - | - | - | - | - | 1000.00mm L x 2.50mm W | 1.00mm | - | Flat |
|
|
BXEB-L0560Z-35E2000-C-C3EB GEN 3 LED MODULE, 560 MM, 350 |
2,109 | 0.00 |
|
- |
EB Series™ Gen 3 | Tray | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2490lm (Typ) | 700mA | 25°C | 19.1V | 186 lm/W | 1.4A | 80 | 120° | With Connector | 560.00mm L x 24.00mm W | 6.10mm | - | Flat |
