LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-18-27-80-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 2700K |
3,536 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4360lm (Typ) | 900mA | 85°C | 34V | 142 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
CXM-18-30-90-36-AA30-F4-3LED COB CXM-18 GEN3 WH SQ 3000K |
1,622 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3875lm (Typ) | 900mA | 85°C | 34V | 127 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-35-80-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 3500K |
4,500 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4740lm (Typ) | 900mA | 85°C | 34V | 155 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-35-90-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 3500K |
4,637 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3950lm (Typ) | 900mA | 85°C | 34V | 129 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-40-70-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 4000K |
4,686 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5150lm (Typ) | 900mA | 85°C | 34V | 168 lm/W | 2A | 70 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-40-90-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 4000K |
4,521 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4170lm (Typ) | 900mA | 85°C | 34V | 136 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-50-70-36-AA30-F4-5LED COB CXM-18 GEN3 WHT SQ 5000K |
3,544 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 5240lm (Typ) | 900mA | 85°C | 34V | 171 lm/W | 2A | 70 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-50-80-36-AA30-F4-5LED COB CXM-18 GEN3 WHT SQ 5000K |
3,157 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4835lm (Typ) | 900mA | 85°C | 34V | 158 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-50-90-36-AA30-F4-5LED COB CXM-18 GEN3 WHT SQ 5000K |
4,155 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4190lm (Typ) | 900mA | 85°C | 34V | 137 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-65-70-36-AA30-F4-5LED COB CXM-18 GEN3 WHT SQ 6500K |
2,304 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 5245lm (Typ) | 900mA | 85°C | 34V | 171 lm/W | 2A | 70 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
CXM-18-65-80-36-AA30-F4-5LED COB CXM-18 GEN3 WHT SQ 6500K |
2,054 | 5.95 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 4820lm (Typ) | 900mA | 85°C | 34V | 158 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
|
BXEB-L0590U-27G1500-C-C3EB SLIM GEN 3 LED MODULE, 590 MM |
2,359 | 0.00 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2085lm (Typ) | 700mA | 25°C | 19.1V | 156 lm/W | 1.7A | 90 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
BXEB-L0590U-40G1500-C-C3EB SLIM GEN 3 LED MODULE, 590 MM |
4,636 | 0.00 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2195lm (Typ) | 700mA | 25°C | 19.1V | 164 lm/W | 1.7A | 90 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
BXEB-L0590U-30G1500-C-C3EB SLIM GEN 3 LED MODULE, 590 MM |
3,101 | 0.00 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2195lm (Typ) | 700mA | 25°C | 19.1V | 164 lm/W | 1.7A | 90 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
BXEB-L0590U-35G1500-C-C3EB SLIM GEN 3 LED MODULE, 590 MM |
4,597 | 0.00 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2195lm (Typ) | 700mA | 25°C | 19.1V | 164 lm/W | 1.7A | 90 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
BXEB-L0590U-50G1500-C-C3EB SLIM GEN 3 LED MODULE, 590 MM |
4,683 | 0.00 |
|
Datasheet |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2195lm (Typ) | 700mA | 25°C | 19.1V | 164 lm/W | 1.7A | 90 | 120° | With Connector | 590.00mm L x 12.70mm W | 4.30mm | - | Flat |
|
|
SMJD-3621072B-XXN1 00D79F038ALLLED MOD SE WARM WHT RECT 3500K |
4,624 | 6.13 |
|
Datasheet |
SE | Tray | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 3790lm (Typ) | 600mA | 25°C | 34.5V | 183 lm/W | 900mA | 80 | - | - | 560.00mm L x 20.00mm W | 5.50mm | - | Flat |
|

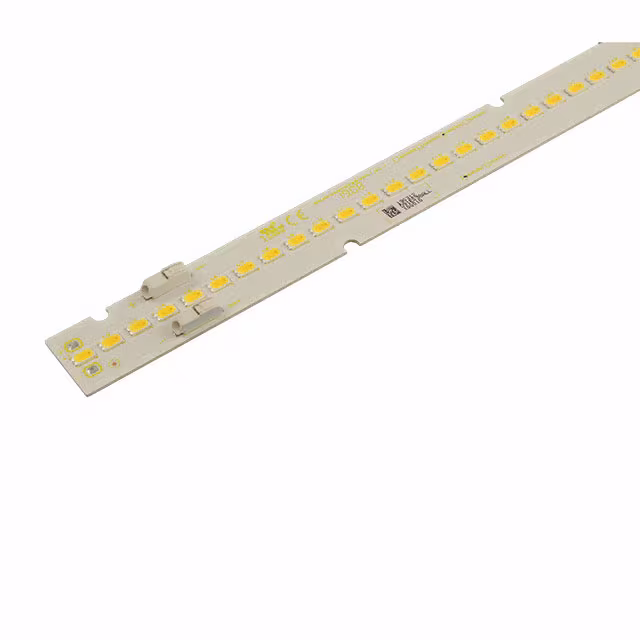

SMJD-3621072B-XXN1 00D91E038ALLLED MOD SE NEUT WHT RECT 4000K |
4,072 | 6.13 |
|
Datasheet |
SE | Tray | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 3910lm (Typ) | 600mA | 25°C | 34.5V | 189 lm/W | 900mA | 80 | - | - | 560.00mm L x 20.00mm W | 5.50mm | - | Flat |
|
|
SMJD-3621072B-XXN1 00D91C038ALLLED MOD SE COOL WHT RECT 5000K |
1,490 | 12.66 |
|
Datasheet |
SE | Tray | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 3910lm (Typ) | 600mA | 25°C | 34.5V | 189 lm/W | 900mA | 80 | - | - | 560.00mm L x 20.00mm W | 5.50mm | - | Flat |
|
|
BXRV-TR-2750G-06A0-B-23-S2LED COB VESTA WHITE ROUND 5000K |
2,232 | 5.58 |
|
Datasheet |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 5000K 3-Step MacAdam Ellipse | - | Round | 500lm Warm White, 600lm Cool White | 150mA | 25°C | 36V Warm White, 36V Cool White | 92 lm/W Warm White, 110 lm/W Cool White | 200mA | 90 | 130° | With Holder | 30.80mm Dia | 3.80mm | 6.80mm Dia | Flat |
