LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMB1306-R160-00PF0Z0AL7CXLAMP CMB LED WHITE PRO9 |
1,139 | 0.00 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | - | - | - | Square | - | 400mA | 85°C | 16.7V | - | 1.2A | 95 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMU1013-R160-00PN0U0A31QXLAMP CMU LED WHITE PRO9 |
4,425 | 0.00 |
|
Datasheet |
XLamp® CMU1013 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K | - | Square | - | 360mA | 85°C | 33.7V | - | 960mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
LBF6222-20DLRA-BLED MOD WHT LNR STRP 2700K |
3,849 | 6.44 |
|
Datasheet |
- | Bulk | Obsolete | LED Module | White, Cool / White, Warm | 6500K, 2700K | - | Linear Light Strip | 101lm (Typ) Warm White, 118lm (Typ) Cool White | 150mA | 25°C | 5.8V | 136 lm/W, 117 lm/W | 400mA | 75 | - | - | 151.00mm L x 16.50mm W | 0.85mm | - | Flat |
|
|
CMB1840-0000-000N0H0A65GLED COB XLAMP COOL WHT SQ 6500K |
1,709 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 5908lm | 1.1A | 85°C | 34.4V | 156 lm/W | 2.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CMB1840-0000-000N0H0A50GLED COB XLAMP COOL WHT SQU 5000K |
2,272 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5862lm | 1.1A | 85°C | 34.4V | 155 lm/W | 2.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CMB1840-0000-000N0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
1,233 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 4770lm | 1.1A | 85°C | 34.4V | 126 lm/W | 2.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CMB1840-0000-000N0H0A57GLED COB XLAMP COOL WHT SQU 5700K |
2,348 | 0.00 |
|
Datasheet |
XLamp® CMB1840 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 5862lm | 1.1A | 85°C | 34.4V | 155 lm/W | 2.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 14.00mm Dia | Flat |
|
|
CXM-14-31-95-36-TC62-F7-3CXM-14-31-95-36-TC62-F7-3 |
3,040 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-14-32-95-36-TC62-F7-3CXM-14-32-95-36-TC62-F7-3 |
3,160 | 0.00 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

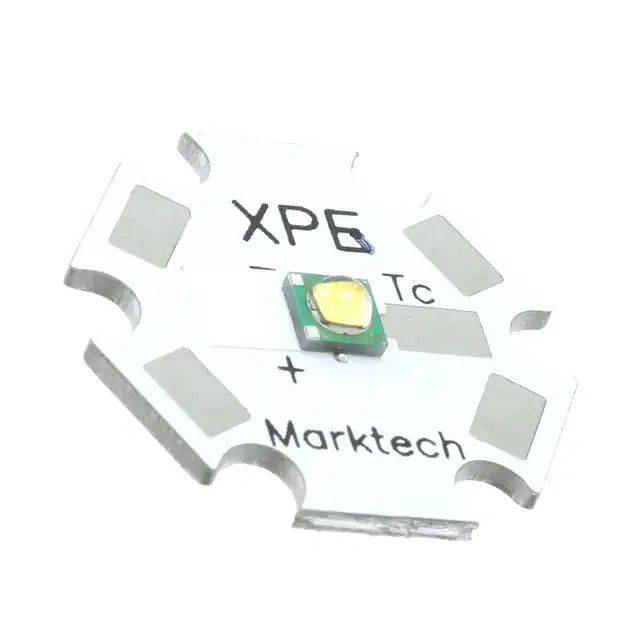

MTG7-001I-XPG00-NW-0EE5LED MOD CREE XP-G STARBRD 4000K |
1,677 | 6.44 |
|
Datasheet |
Cree XP-G | - | Active | LED Module | White, Neutral | 4000K | - | Starboard | 114lm (Typ) | 350mA | 25°C | 2.9V | 112 lm/W | 1.5A | - | 125° | - | 19.90mm L x 19.90mm W | - | - | Domed |
|
|
MTG7-001I-XPG00-WW-0CE7LED MOD CREE XP-G STARBRD 3000K |
1,908 | 6.44 |
|
Datasheet |
Cree XP-G | - | Active | LED Module | White, Warm | 3000K | - | Starboard | 100lm (Typ) | 350mA | 25°C | 2.9V | 99 lm/W | 1.5A | - | 125° | - | 19.90mm L x 19.90mm W | - | - | Domed |
|
|
LZ1-10CW02-0000LED MOD LZ1 WHT STARBOARD 6500K |
3,507 | 0.00 |
|
Datasheet |
LZ1 | Tray | Obsolete | LED Module | White, Cool | 5000K ~ 6500K | - | Starboard | 227lm (182lm ~ 285lm) | 1A | 25°C | 3.6V | 63 lm/W | 1.2A | 75 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
LZ1-10WW02-0000LED MOD LZ1 WM WH STARBRD 3500K |
2,813 | 0.00 |
|
Datasheet |
LZ1 | Tray | Obsolete | LED Module | White, Warm | 2700K ~ 3500K | - | Starboard | 180lm (146lm ~ 220lm) | 1A | 25°C | 3.6V | 50 lm/W | 1.2A | 85 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
CXA1310-0000-000N00J440HLED COB XLAMP NEUT WHT SQU 4000K |
2,544 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 525mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00K250HLED COB XLAMP COOL WHT SQU 5000K |
3,283 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 36V | 99 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00K450FLED COB XLAMP COOL WHT SQU 5000K |
3,782 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00K457FLED COB XLAMP COOL WHT SQU 5700K |
4,062 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000N00K465FLED COB XLAMP COOL WHT SQU 6500K |
3,964 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 36V | 106 lm/W | 525mA | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00H427HLED COB XLAMP WARM WHT SQU 2700K |
2,637 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 700mA | 85°C | 18V | 80 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
|
|
CXA1310-0000-000F00J227FLED COB XLAMP WARM WHT SQU 2700K |
4,291 | 0.00 |
|
Datasheet |
XLamp® CXA1310 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 700mA | 85°C | 18V | 86 lm/W | 1.05A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia | Flat |
