LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-N8T3616E0WWLED MODULE CO40 4000K SQUARE |
3,955 | 0.00 |
|
Datasheet |
CO40 | Tray | Active | LED Module | White, Neutral | 4000K | - | Square | 1010lm (Typ) | 1.56A | 65°C | 23.4V | 28 lm/W | 2.8A | 80 | 140° | - | 28.00mm L x 28.00mm W | 2.20mm | - | - |
|
|
SI-N8U3616E0WWLED MODULE CO40 3500K SQUARE |
2,478 | 0.00 |
|
Datasheet |
CO40 | Tray | Active | LED Module | White, Warm | 3500K | - | Square | 1050lm (Typ) | 1.56A | 65°C | 23.4V | 29 lm/W | 2.8A | 80 | 140° | - | 28.00mm L x 28.00mm W | 2.20mm | - | - |
|
|
SI-N8V3616E0WWLED MODULE CO40 3000K SQUARE |
3,528 | 0.00 |
|
Datasheet |
CO40 | Tray | Active | LED Module | White, Warm | 3000K | - | Square | 1070lm (Typ) | 1.56A | 65°C | 23.4V | 29 lm/W | 2.8A | 80 | 140° | - | 28.00mm L x 28.00mm W | 2.20mm | - | - |
|
|
SI-N8W3616E0WWLED MODULE CO40 2700K SQUARE |
1,203 | 0.00 |
|
Datasheet |
CO40 | Tray | Active | LED Module | White, Warm | 2700K | - | Square | 1140lm (Typ) | 1.56A | 65°C | 23.4V | 31 lm/W | 2.8A | 80 | 140° | - | 28.00mm L x 28.00mm W | 2.20mm | - | - |
|
L235-4080AHLCBAAC0LED MOD LUXEON WH LNR STR 4000K |
2,435 | 16.01 |
|
Datasheet |
LUXEON XF-3535L | Strip | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 1584lm (Typ) | 600mA | 25°C | 18V | 147 lm/W | 1.2A | 80 | - | - | 300.00mm L x 10.00mm W (100.00mm L per Segment) | 1.23mm | - | Flat |
|
SI-B8U11156HUSLED MOD LT-H562D LNR STRP 3500K |
3,567 | 11.44 |
|
Datasheet |
LT-H562D | Bulk | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1965lm (Typ) | 480mA | 50°C | 22.5V | 182 lm/W | - | 80 | - | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|

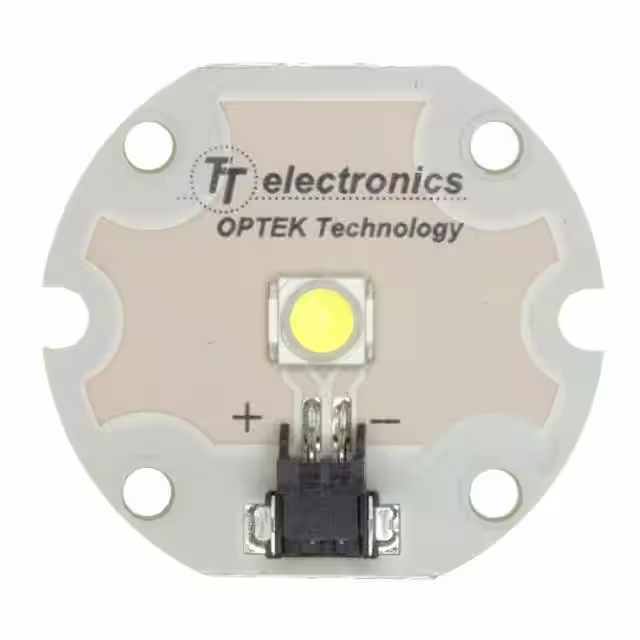

OPA733WDLED MOD OPA733 WHT RND 6500K |
1,527 | 0.00 |
|
Datasheet |
OPA733 | - | Obsolete | LED Module | White, Cool | 6500K | - | Round | 48lm (Typ) | 350mA | 25°C | 3.6V | 38 lm/W | 350mA | - | 40° | With Connector | 35.76mm Dia | 1.78mm | - | Domed |
|
|
CMU1519-R090-000N0H0A22GLED COB XLAMP WARM WHT SQU 2200K |
3,937 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 2464lm (Typ) | 540mA | 85°C | 34.4V | 133 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A27HLED COB XLAMP WARM WHT SQU 2700K |
2,103 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2436lm (Typ) | 540mA | 85°C | 34.4V | 131 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A31QLED COB XLAMP WARM WHT SQ 3100K |
1,704 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 2421lm (Typ) | 540mA | 85°C | 34.4V | 130 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A35HLED COB XLAMP WARM WHT SQU 3500K |
1,211 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2570lm (Typ) | 540mA | 85°C | 34.4V | 138 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A30ULED COB XLAMP WARM WHT SQ 3000K |
3,943 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2383lm (Typ) | 540mA | 85°C | 34.4V | 128 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A30QLED COB XLAMP WARM WHT SQ 3000K |
3,083 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2484lm (Typ) | 540mA | 85°C | 34.4V | 134 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A40HLED COB XLAMP NEUT WHT SQU 4000K |
2,585 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2571lm (Typ) | 540mA | 85°C | 34.4V | 138 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CMU1519-R090-000N0U0A30HLED COB XLAMP WARM WHT SQU 3000K |
2,679 | 0.00 |
|
Datasheet |
XLamp® CMU1519 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2535lm (Typ) | 540mA | 85°C | 34.4V | 136 lm/W | 1.44A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
CXA2530-0000-000N00T235HLED COB XLAMP WARM WHT SQU 3500K |
4,640 | 5.54 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N00S427HLED COB XLAMP WARM WHT SQU 2700K |
2,163 | 5.54 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3060lm (2990lm ~ 3220lm) | 800mA | 85°C | 37V | 103 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N0HT250HLED COB XLAMP COOL WHT SQU 5000K |
3,895 | 5.54 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N00T450HLED COB XLAMP COOL WHT SQU 5000K |
3,987 | 5.54 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 3560lm (3440lm ~ 3680lm) | 800mA | 85°C | 37V | 120 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2530-0000-000N0HS440HLED COB XLAMP NEUT WHT SQU 4000K |
3,250 | 5.54 |
|
Datasheet |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3060lm (2990lm ~ 3220lm) | 800mA | 85°C | 37V | 103 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
