LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1512-0000-000N0UK450FLED COB XLAMP COOL WHT SQU 5000K |
3,269 | 5.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0YJ227FLED COB XLAMP WARM WHT SQU 2700K |
2,845 | 5.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 37V | 83 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0YJ430FLED COB XLAMP WARM WHT SQU 3000K |
3,415 | 5.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 37V | 90 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0UJ227FLED COB XLAMP WARM WHT SQU 2700K |
3,543 | 5.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 86 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1512-0000-000N0UJ430FLED COB XLAMP WARM WHT SQU 3000K |
2,471 | 5.64 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 36V | 92 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CMB1825-R096-000N0B0A65ELED COB XLAMP COOL WHT SQU 6500K |
4,724 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 4151lm | 700mA | 85°C | 34V | 174 lm/W | 1.8A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0B0A30ELED COB XLAMP WARM WHT SQU 3000K |
3,209 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 3969lm | 700mA | 85°C | 34V | 167 lm/W | 1.8A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0B0A57ELED COB XLAMP COOL WHT SQU 5700K |
4,873 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 4128lm | 700mA | 85°C | 34V | 173 lm/W | 1.8A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0B0A40ELED COB XLAMP NEUT WHT SQU 4000K |
1,741 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 4071lm | 700mA | 85°C | 34V | 171 lm/W | 1.8A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CMB1825-R096-000N0B0A50ELED COB XLAMP COOL WHT SQU 5000K |
1,084 | 0.00 |
|
Datasheet |
XLamp® CMB1825 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 4120lm | 700mA | 85°C | 34V | 173 lm/W | 1.8A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|

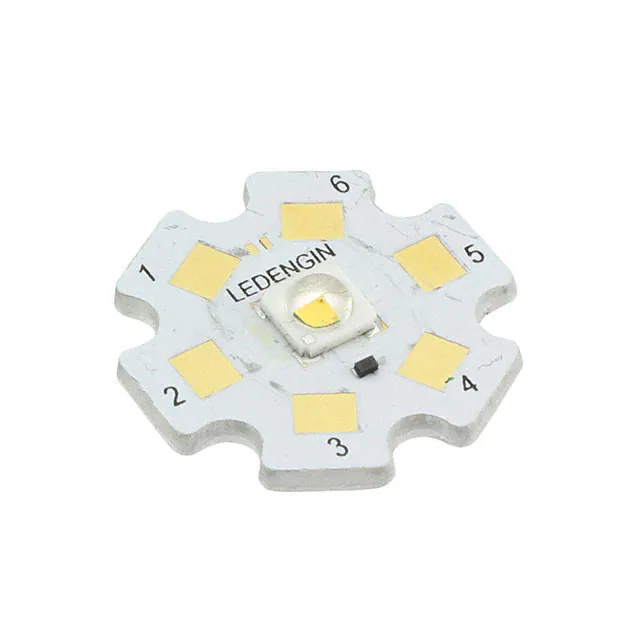

LZ1-10NW02-0040LED MOD LZ1 WHT STARBOARD 4000K |
3,197 | 0.00 |
|
Datasheet |
LZ1 | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Starboard | 164lm (146lm ~ 182lm) | 1A | 25°C | 3.6V | 46 lm/W | 1.2A | 82 (Typ) | 85° | - | 19.90mm Dia | 4.50mm | 3.20mm Dia | Domed |
|
|
BXRC-40H2000-D-72-SEVERO SE 13D NEUTRAL WHITE LED AR |
3,734 | 0.00 |
|
Datasheet |
Vero® SE 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Round | 1703lm (Typ) | 500mA | 85°C | 30.9V | 110 lm/W | 1A | 97 (Typ) | 120° | Dimming | 36.20mm Dia | 3.60mm | 13.40mm Dia | Flat |
|
CXB1820-0000-000N0HR227HLED COB XLAMP WARM WHT SQU 2700K |
4,079 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HR427GLED COB XLAMP WARM WHT SQU 2700K |
4,194 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HR430HLED COB XLAMP WARM WHT SQU 3000K |
3,734 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HR435HLED COB XLAMP WARM WHT SQU 3500K |
1,089 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HS235GLED COB XLAMP WARM WHT SQU 3500K |
1,244 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 146 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXB1820-0000-000N0HS240HLED COB XLAMP NEUT WHT SQU 4000K |
1,953 | 5.66 |
|
Datasheet |
XLamp® CXB1820 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 146 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
CXB1830-0000-000N0HU450GLED COB XLAMP COOL WHT SQU 5000K |
1,035 | 5.66 |
|
Datasheet |
XLamp® CXB1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXB1830-0000-000N0US227GLED COB XLAMP WARM WHT SQU 2700K |
2,317 | 5.66 |
|
Datasheet |
XLamp® CXB1830 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 36V | 100 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
