LED Color Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

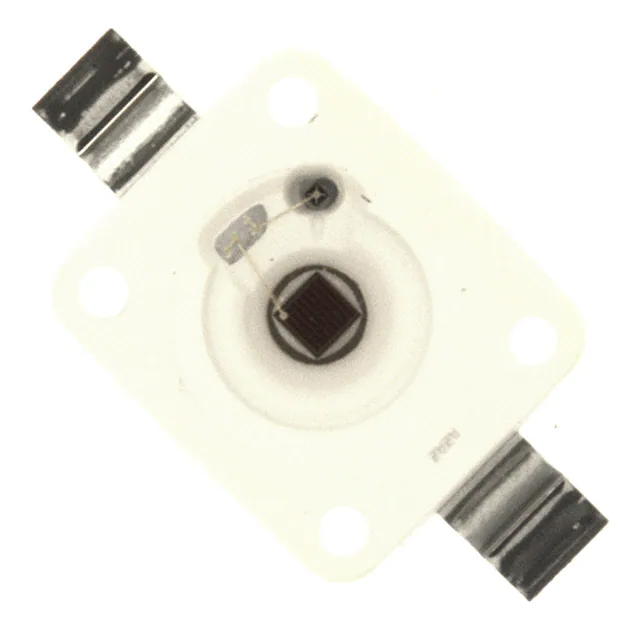

LR W5SM-GZHZ-1-0-400-R18-ZLED GOLDEN DRAGON RED 625NM SMD |
1,702 | 0.00 |
|
Datasheet |
Golden DRAGON® | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | 625nm (Typ) | 400mA | 2.2V | 40 lm/W | 1A | 35lm (24lm ~ 45lm) | 25°C | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.079" (2.00mm) |
|
SML-LX1610SICLED TITANBRITE RED 625NM SMD |
4,907 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Red | 625nm (Typ) | 350mA | 2.1V | - | 350mA | - | 25°C | 70° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
|
SML-LX1610SIC/ALED TITANBRITE RED 625NM SMD |
2,428 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Red | 625nm (Typ) | 350mA | 2.1V | - | 350mA | - | 25°C | 110° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
|
SML-LX1610SYCLED TITANBRITE YELLOW 590NM SMD |
4,419 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Yellow | 590nm (Typ) | 350mA | 2.1V | - | 350mA | - | 25°C | 70° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
|
SML-LX1610UPGCLED TITANBRITE GREEN 525NM SMD |
1,814 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Green | 525nm (Typ) | 350mA | 4V | - | 350mA | - | 25°C | 70° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
|
SML-LX1610USBCLED TITANBRITE BLU 470NM SMD |
2,811 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Blue | 470nm (Typ) | 350mA | 3.5V | 4 lm/W | 350mA | 5lm (Typ) | 25°C | 70° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
|
SML-LX1610USBC/ALED TITANBRITE BLU 470NM SMD |
3,614 | 0.00 |
|
Datasheet |
TitanBrite™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | Blue | 470nm (Typ) | 350mA | 3V | 19 lm/W | 350mA | 20lm (Typ) | 25°C | 110° | Surface Mount | SMD | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.130" (3.30mm) |
|
FL2BLIGHT ENG FLARE 2W BLUE W/LENS |
4,636 | 0.00 |
|
- |
- | - | Bulk | Obsolete | Blue | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FL2GLED ENG FLARE 2W GRN W/LENS |
3,340 | 0.00 |
|
- |
- | - | Bulk | Obsolete | Green | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FL2RLIGHT ENG FLARE 2W RED W/LENS |
1,793 | 0.00 |
|
- |
- | - | Bulk | Obsolete | Red | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OVSPRBCR44LED RED 625NM SMD |
1,947 | 0.00 |
|
Datasheet |
- | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Red | 625nm (620nm ~ 630nm) | 400mA | 2.5V | 30 lm/W | 400mA | 30lm (Typ) | 25°C | 40° | Surface Mount | SMD | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.189" (4.80mm) |
|
|
OVSPYBCR44LED YELLOW 589NM SMD |
3,354 | 0.00 |
|
Datasheet |
- | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Yellow | 589nm (Typ) | 400mA | 2.5V | 35 lm/W | 400mA | 35lm (Typ) | 25°C | 40° | Surface Mount | SMD | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.189" (4.80mm) |
|
LA W5SN-JZKZ-24-0-700-R18-ZLED PLAT DRAGON AMB 618NM |
1,930 | 0.00 |
|
Datasheet |
Platinum DRAGON | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | 618nm (612nm ~ 624nm) | 700mA | 2.5V | 50 lm/W | 1A | 87lm (61lm ~ 112lm) | 25°C | 120° | Surface Mount | - | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.075" (1.90mm) |
|

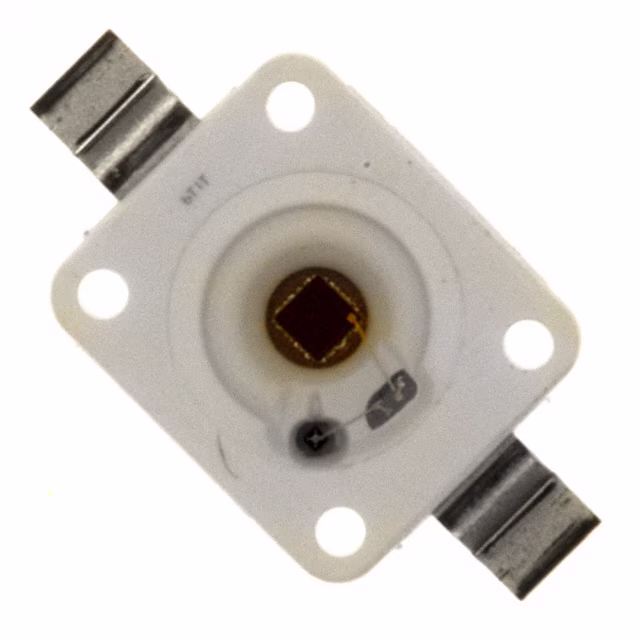

LR W5SN-JYKY-1-0-700-R18-ZLED PLAT DRAGON RED 625NM SMD |
2,588 | 0.00 |
|
Datasheet |
Platinum DRAGON | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | 625nm (Typ) | 700mA | 2.45V | 44 lm/W | 1A | 75lm (52lm ~ 97lm) | 25°C | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LT G6SP-CBEB-25-1-140-R18-ZLED TOPLED GREEN 525NM SMD |
2,153 | 0.00 |
|
Datasheet |
Advanced Power TOPLED® | 6-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Green | 525nm (513nm ~ 537nm) | 140mA | 3.3V | 45 lm/W | 250mA | 21lm (12lm ~ 30lm) | 25°C | 120° | Surface Mount | SMD | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.083" (2.10mm) |
|
|
LT W5SN-JYKZ-36-ZLED PLAT DRAGON 528NM GRN SMD |
2,000 | 0.00 |
|
Datasheet |
Platinum DRAGON | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Green | 528nm (519nm ~ 543nm) | 700mA | 3.6V | 36 lm/W | 1A | - | - | 120° | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.079" (2.00mm) |
|

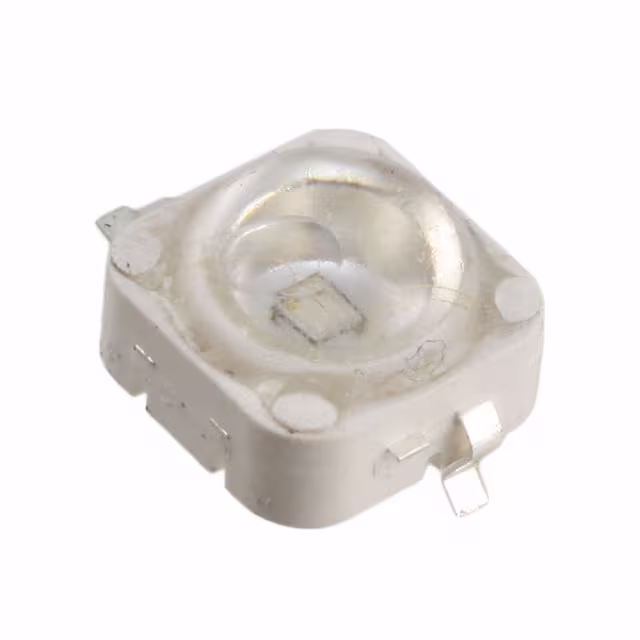

AAD1-9090QB11ZC/3LED AAD1-9090 BLUE 460NM |
2,543 | 0.00 |
|
Datasheet |
AAD1-9090 | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Active | Blue | 460nm (Typ) | 700mA | 3.9V | 11 lm/W | 700mA | 29lm (Typ) | 25°C | 100° | Surface Mount | - | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.267" (6.78mm) |
|

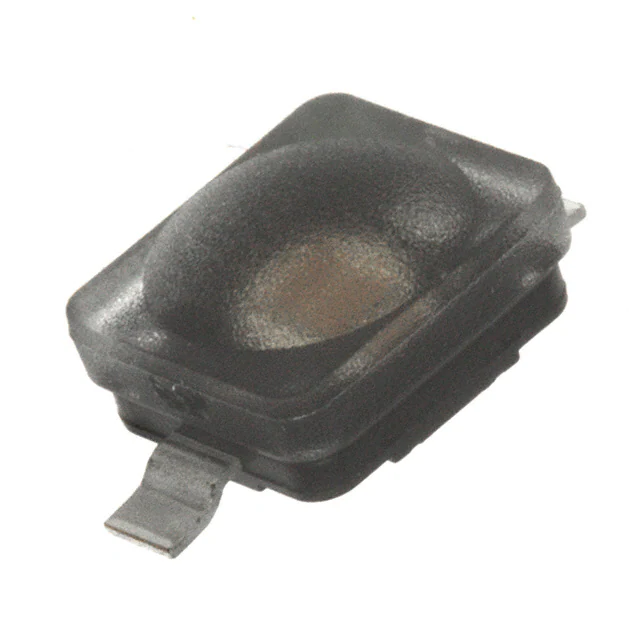

LA W5AP-LXMY-24-ZLED DIAMOND DRAGON AMB 618NM SMD |
1,715 | 0.00 |
|
Datasheet |
Diamond Dragon | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | 618nm (612nm ~ 624nm) | 1.4A | 2.5V | 50 lm/W | 2A | 176lm (112lm ~ 240lm) | 25°C | 140° | Surface Mount | SMD | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.175" (4.45mm) |
|

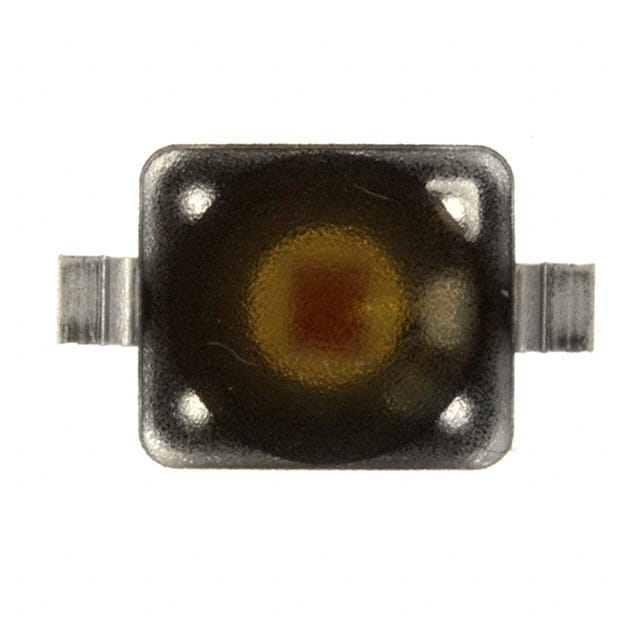

LR W5AP-KZMX-1-ZLED DIAMOND DRAGON RED 625NM SMD |
3,944 | 0.00 |
|
Datasheet |
Diamond Dragon | 3026 (7767 Metric) | Tape & Reel (TR) | Obsolete | Red | 625nm (Typ) | 1.4A | 2.5V | 44 lm/W | 2A | 154lm (97lm ~ 210lm) | 25°C | 140° | Surface Mount | SMD | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.175" (4.45mm) |
|
LY W5AP-KYLZ-36-ZLED DIAMOND DRAGON YLW 589NM SMD |
1,578 | 0.00 |
|
Datasheet |
Diamond Dragon | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Yellow | 589nm (583nm ~ 595nm) | 1.4A | 2.5V | 37 lm/W | 2A | 131lm (82lm ~ 180lm) | 25°C | 140° | Surface Mount | SMD | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.175" (4.45mm) |
