LED Color Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XREROY-L1-R250-00803LED XLAMP XRE BLUE 460NM SMD |
3,116 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 325mW (300mW ~ 350mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00901LED XLAMP XRE BLUE 458NM SMD |
4,664 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00902LED XLAMP XRE BLUE 455NM SMD |
4,970 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00903LED XLAMP XRE BLUE 460NM SMD |
1,861 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 388mW (350mW ~ 425mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00A02LED XLAMP XRE BLUE 455NM SMD |
1,397 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
|
XREROY-L1-R250-00A03LED XLAMP XRE BLUE 460NM SMD |
4,399 | 0.00 |
|
Datasheet |
XLamp® XR-E | 3529 (9073 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (455nm ~ 465nm) | 350mA | 3.3V | - | 1A | 463mW (450mW ~ 475mW) | 25°C | 100° | Surface Mount | SMD | 0.354" L x 0.276" W (9.00mm x 7.00mm) | 0.181" (4.60mm) |
|
XPEROY-L1-R250-00B01LED XLAMP XPE BLUE 458NM SMD |
4,806 | 0.00 |
|
Datasheet |
XLamp® XP-E | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Blue | 458nm (450nm ~ 465nm) | 350mA | 3.1V | - | 1A | 550mW (500mW ~ 600mW) | 25°C | 130° | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.084" (2.13mm) |
|
|
XPEROY-L1-R250-00B02LED XLAMP XPE BLUE 455NM SMD |
1,832 | 0.00 |
|
Datasheet |
XLamp® XP-E | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 350mA | 3.1V | - | 1A | 550mW (500mW ~ 600mW) | 25°C | 130° | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.084" (2.13mm) |
|
SBM-160-RGBW-H41-RF100LED SBM160 RGBW 623/530/458/7100 |
1,745 | 0.00 |
|
Datasheet |
SBM-160 | 8-SMD Module | Tray | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 623nm Red, 530nm Green, 458nm Blue, 7100K White | 4A Red, 4A Green, 4A Blue, 4A White | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White | 4A Red, 4A Green, 4A Blue, 4A White | 320lm Red, 740lm Green, 110lm Blue, 590lm White | 25°C | - | Surface Mount | SMD | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.072" (1.82mm) |
|

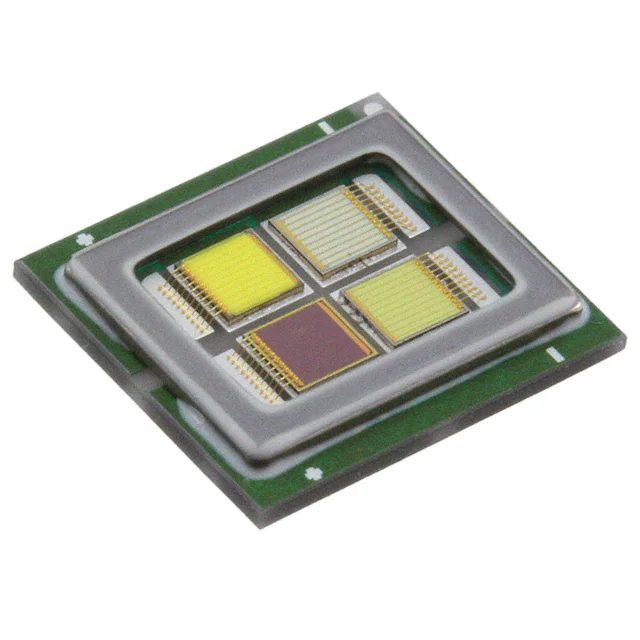

SBM-160-RGBW-H41-RG101LED SBM160 RGBW 623/530/458/7100 |
2,229 | 0.00 |
|
Datasheet |
SBM-160 | 8-SMD Module | Tray | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 623nm Red, 530nm Green, 458nm Blue, 7100K White | 4A Red, 4A Green, 4A Blue, 4A White | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White | 4A Red, 4A Green, 4A Blue, 4A White | 320lm Red, 740lm Green, 110lm Blue, 590lm White | 25°C | - | Surface Mount | SMD | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.072" (1.82mm) |
|
|
SBM-160-RGBW-H41-RG102LED SBM160 RGBW 623/530/458/7100 |
4,912 | 0.00 |
|
Datasheet |
SBM-160 | 8-SMD Module | Tray | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 623nm Red, 530nm Green, 458nm Blue, 7100K White | 4A Red, 4A Green, 4A Blue, 4A White | 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White | 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White | 4A Red, 4A Green, 4A Blue, 4A White | 320lm Red, 740lm Green, 110lm Blue, 590lm White | 25°C | - | Surface Mount | SMD | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.072" (1.82mm) |
|

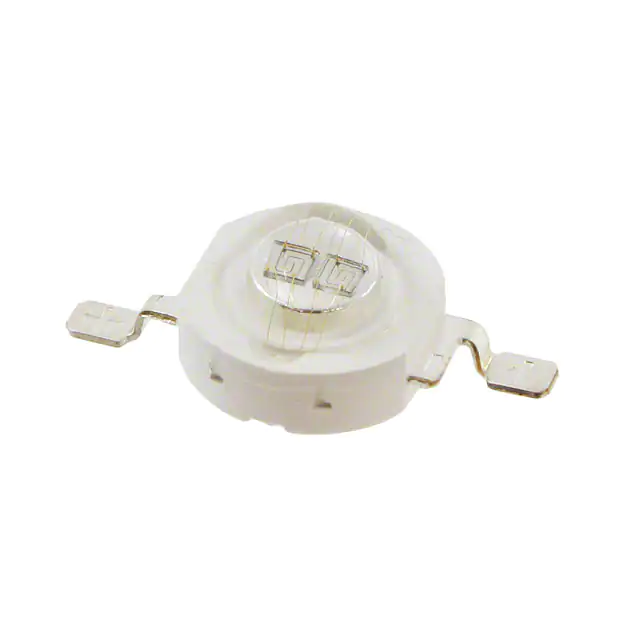

SML-LXL8047UVCLED TITANBRITE PURP/UV 405NM SMD |
4,871 | 0.00 |
|
Datasheet |
TitanBrite™ | 2-SMD, Flat Leads | Tube | Active | Purple, Ultraviolet (UV) | 405nm (Typ) | 700mA | 3.6V | 7 lm/W | 700mA | 18lm (Typ) | 25°C | 100° | Surface Mount | SMD | 0.315" Dia (8.00mm) | 0.192" (4.88mm) |
|
LXML-PB02LED LUXEON REBEL BLUE 470NM SMD |
4,622 | 4.84 |
|
Datasheet |
LUXEON Rebel Color ES | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Blue | 470nm (Typ) | 700mA | 2.95V | 32 lm/W | 1A | 67lm (50lm ~ 83lm) | 25°C | 125° | Surface Mount | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) |
|
LXZ1-PL01LED LUXEON Z AMBER 590NM SMD |
3,495 | 0.00 |
|
Datasheet |
LUXEON Z | 0705 (1713 Metric) | Tape & Reel (TR) | Obsolete | Amber | 590nm (585nm ~ 595nm) | 500mA | 2.15V | 52 lm/W | 700mA | 56lm (48lm ~ 64lm) | 25°C | 145° | Surface Mount | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) |
|
LXH1-FWRBLED LUXEON T BLUE 453NM SMD |
2,608 | 0.00 |
|
Datasheet |
LUXEON T | 1515 (3838 Metric) | Tape & Reel (TR) | Obsolete | Blue | 453nm (445nm ~ 460nm) | 700mA | 2.8V | - | 1.05A | 1040mW (Typ) | 85°C | 120° | Surface Mount | SMD | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.083" (2.12mm) |
|
|
VLMY71AAAC-GS08SMD LED LITTLE STAR YELLOW |
1,559 | 0.00 |
|
- |
Little Star® | 2424 (6060 Metric) | Cut Tape (CT) | Obsolete | Yellow | 591nm (585nm ~ 597nm) | 400mA | 2.5V | 30 lm/W | 400mA | 30lm (21lm ~ 39lm) | 25°C | 120° | Surface Mount | SMD | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.059" (1.50mm) |
|

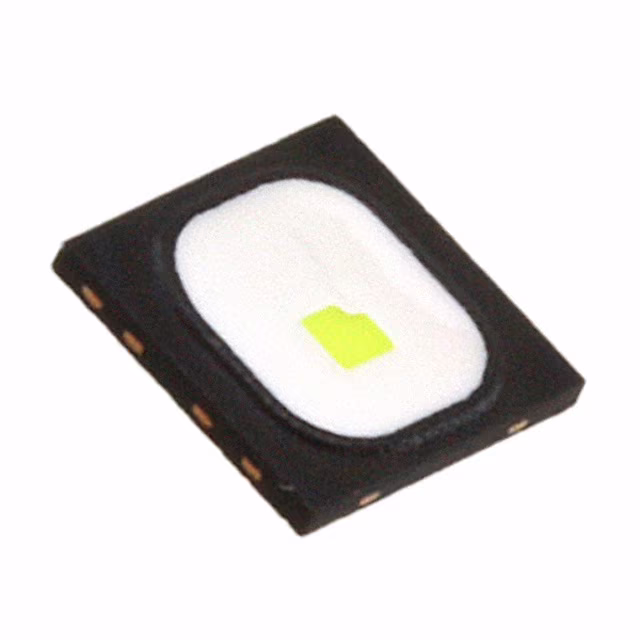

LCG H9RM-LXLZ-1-0-350-R18-ZLED OSRAM OSTAR GREEN 550NM SMD |
2,968 | 0.00 |
|
Datasheet |
OSRAM OSTAR | 1515 (3838 Metric) | Tape & Reel (TR) | Obsolete | Green | 550nm (500nm ~ 600nm) | 350mA | 3.3V | 126 lm/W | 500mA | 146lm (112lm ~ 180lm) | 25°C | 120° | Surface Mount | SMD | 0.148" L x 0.148" W (3.75mm x 3.75mm) | 0.024" (0.60mm) |
|
GB DASPA1.13-DUEQ-25-1LED DURIS P5 LM 470NM |
1,167 | 0.00 |
|
Datasheet |
DURIS® P 5 | 1009 (2622 Metric) | Tape & Reel (TR) | Obsolete | Blue | 470nm (Typ) | 100mA | 3.2V | 22 lm/W | 250mA | - | - | 120° | Surface Mount | SMD | 0.102" L x 0.087" W (2.60mm x 2.20mm) | 0.052" (1.31mm) |
|
GT DASPA1.13-GRGT-26-1-100-R18LED DURIS P5 GREEN 528NM SMD |
3,931 | 0.00 |
|
Datasheet |
DURIS® P 5 | 1009 (2622 Metric) | Tape & Reel (TR) | Obsolete | Green | 528nm (513nm ~ 543nm) | 100mA | 3.25V | 71 lm/W | 250mA | 23lm (21lm ~ 26lm) | 25°C | 120° | Surface Mount | SMD | 0.102" L x 0.087" W (2.60mm x 2.20mm) | 0.052" (1.31mm) |
|

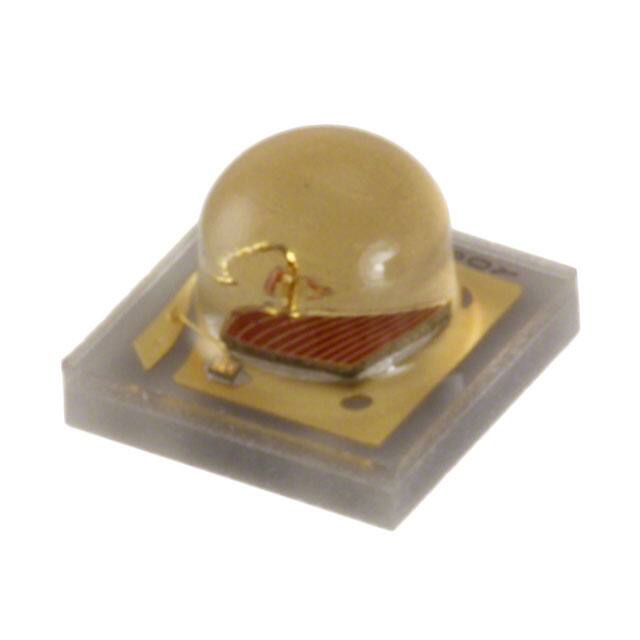

LA CP7P-JUKQ-W4-0-350-R18LED OSLON SSL80 AMBER 617NM SMD |
3,153 | 0.00 |
|
Datasheet |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Amber | 617nm (609nm ~ 624nm) | 350mA | 2.2V | 96 lm/W | 1A | 74lm (66lm ~ 82lm) | 25°C | 80° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
