Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z-15HQ55-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
1,372 | 0.00 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP62 | - | - | - | - | - | - | - | -15°C ~ 80°C |
|

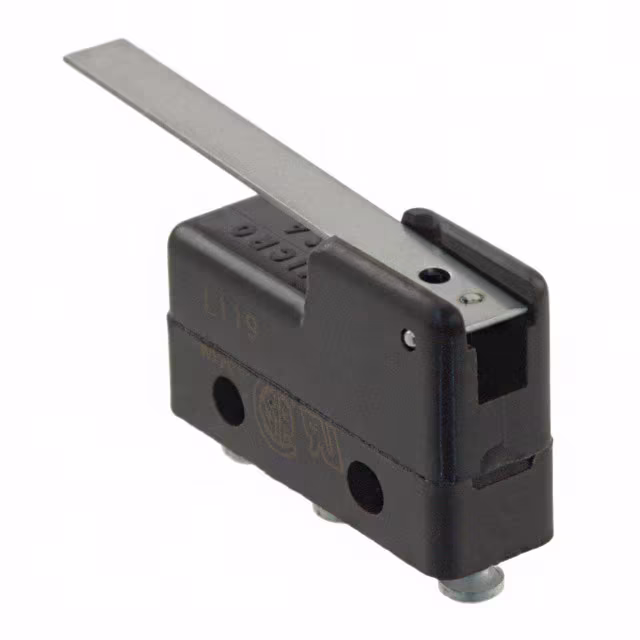

311SM702-TSWITCH SNAP ACTION SPDT 4A 250V |
1,465 | 8.87 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 4A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
4SX36-TSWITCH SNAP ACTION SPDT 7A 250V |
2,208 | 0.00 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -55°C ~ 204°C |
|

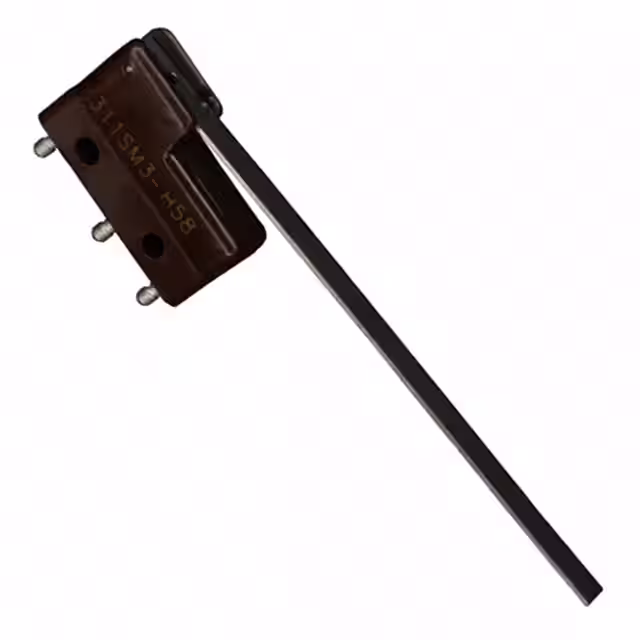

311SM3-H58SWITCH SNAP ACTION SPDT 5A 250V |
1,649 | 0.00 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 15gf | 2.039gfm | 0.280" (7.1mm) | 0.310" (7.9mm) | 0.110" (2.8mm) | 0.057" (1.45mm) | -55°C ~ 125°C |
|

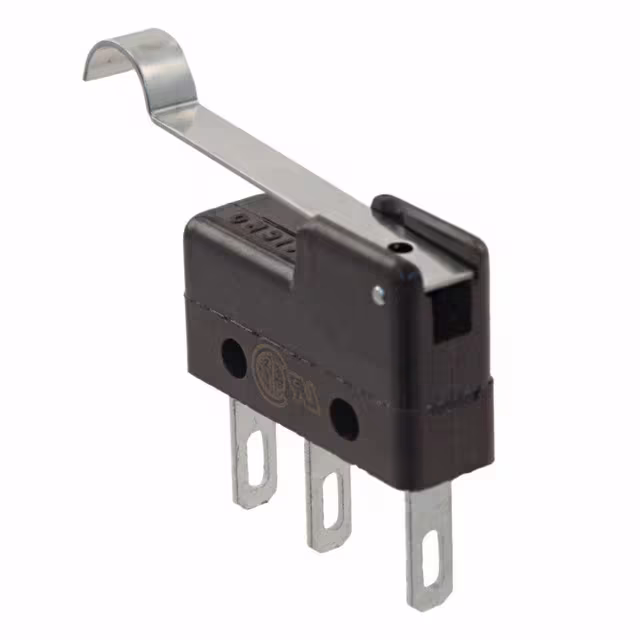

311SM605-H4SWITCH SNAP ACTION SPDT 5A 250V |
4,619 | 0.00 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 30gf | 5.099gf | 0.460" (11.7mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
WL01CA12-LDSWITCH SNAP ACT SPDT 0.1A 125V |
1,149 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WL01CA2SWITCH SNAP ACT SPDT 0.1A 125V |
2,890 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WL01CA2-2NLDSWITCH SNAP ACT SPDT 0.1A 125V |
2,004 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 900gf | 50gf | - | 25° | 16° | 60° | -10°C ~ 80°C |
|
|
WL01CA2-LDSWITCH SNAP ACT SPDT 0.1A 125V |
4,348 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WL01CA32-43LDSWITCH SNAP ACT SPDT 0.1A 125V |
2,731 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | - | - | 55° | - | 35° | -10°C ~ 80°C |
|
|
WL01CLSWITCH SNAP ACT SPDT 0.1A 125V |
3,609 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | 28gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
|
WL01D2-LDSWITCH SNAP ACT SPDT 0.1A 125V |
4,852 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 2720gf | 910gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
|
WL01D3SWITCH SNAP ACT SPDT 0.1A 125V |
4,433 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Ball Bearing Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.752" (44.5mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
WL01GCA2SWITCH SNAP ACT SPDT 0.1A 125V |
2,610 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 150gf | - | 5° | 3° | 40° | -10°C ~ 80°C |
|
|
WL01H2-LDSWITCH SNAP ACT SPDT 0.1A 125V |
2,754 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 100gf | - | 15° | 12° | 55° | -10°C ~ 80°C |
|
|
WL01HAL4-LDSWITCH SNAP ACT SPDT 0.1A 125V |
4,938 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 100gf | 15gf | - | 15° | 12° | 55° | -10°C ~ 80°C |
|
|
WL01NJSWITCH SNAP ACT SPDT 0.1A 125V |
3,430 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
|
WL01NJ-2SWITCH SNAP ACT SPDT 0.1A 125V |
1,337 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 1.575" (40.0mm) | - | - | -10°C ~ 80°C |
|
|
WL01NJ-30SWITCH SNAP ACT SPDT 0.1A 125V |
3,393 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
|
WL01SD3-LDSWITCH SNAP ACT SPDT 0.1A 125V |
3,956 | 0.00 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Side Ball Bearing Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
