Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7-1C17E9-002SWITCH SNAP ACTION SPDT 15A 125V |
4,837 | 4.46 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 17gf | 0.602" (15.3mm) | 0.060" (1.5mm) | 0.014" (0.35mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

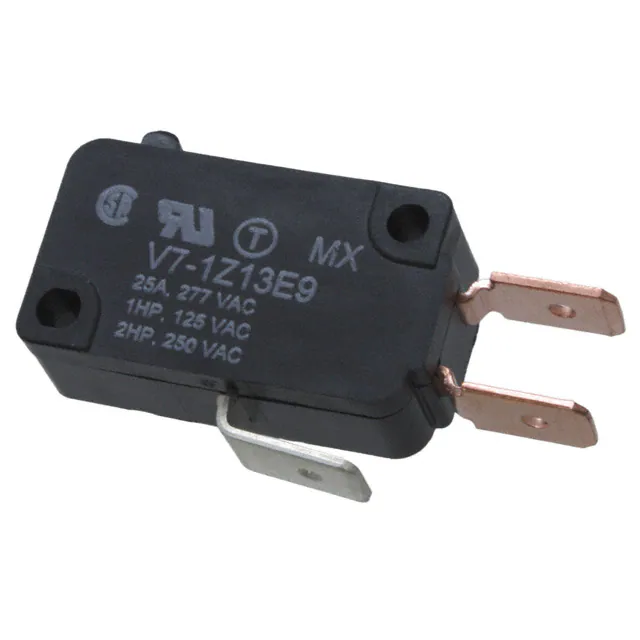

V7-1Z13E9SWITCH SNAP ACTION SPDT 25A 277V |
3,639 | 9.87 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 150°C |
|
|
V7-2A17E9SWITCH SNAP ACTION SPDT 5A 125V |
2,683 | 3.51 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 75gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V7-2B29D8SWITCH SNAP ACT SPST-NO 11A 125V |
1,499 | 1.53 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 10gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V7-2E17E9-420SWITCH SNAP ACTION SPDT 10A 125V |
2,446 | 0.00 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 76gf | 6.000gf | 0.602" (15.3mm) | 0.065" (1.65mm) | 0.015" (0.38mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
V7-5F27D8SWITCH SNAP ACT SPST-NO 3A 125V |
2,735 | 5.66 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 8.000gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

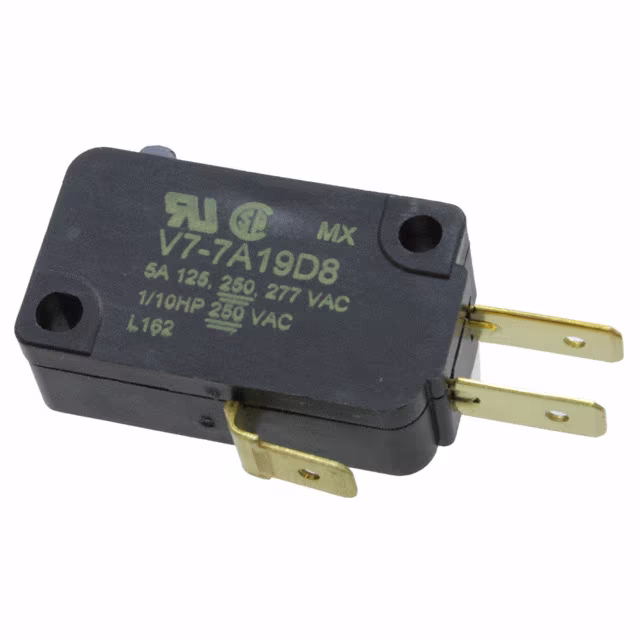

V7-7A19D8SWITCH SNAP ACTION SPDT 5A 125V |
1,337 | 3.80 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 227gf | 57gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.015" (0.38mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
WA-1RX123-A4SWITCH SNAP ACT SPST-NC 1A 125V |
1,482 | 0.00 |
|
Datasheet |
WA | Bulk | Active | SPST-NC | On-Off | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 113 ~ 454gf | - | 0.660" (16.76mm) | - | - | 0.010" (0.25mm) | -55°C ~ 85°C |
|

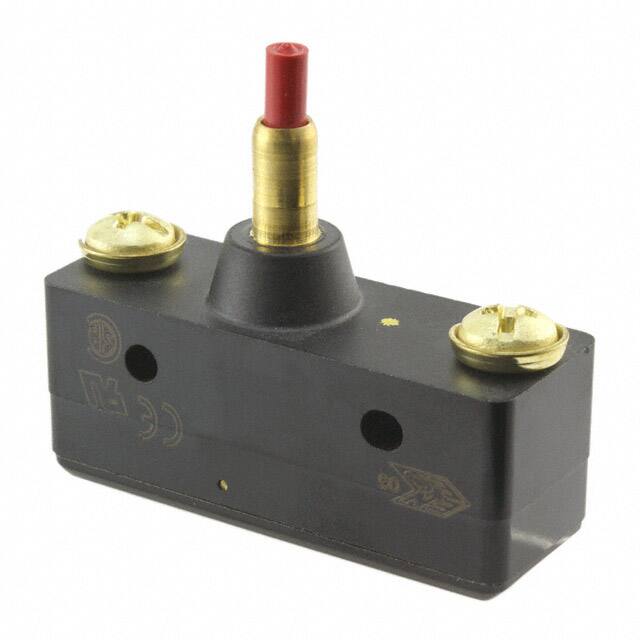

WA-1RX12-A4SWITCH SNAP ACT SPST-NC 20A 125V |
2,398 | 0.00 |
|
Datasheet |
WA | Bulk | Active | SPST-NC | On-Off | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 113 ~ 454gf | - | 0.660" (16.76mm) | - | - | 0.010" (0.25mm) | -55°C ~ 85°C |
|
WA-1RX-A41SWITCH SNAP ACT SPST-NC 20A 125V |
2,544 | 0.00 |
|
Datasheet |
WA | Bulk | Active | SPST-NC | On-Off | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 567gf | - | 0.640" (16.3mm) | - | 0.008" (0.2mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|

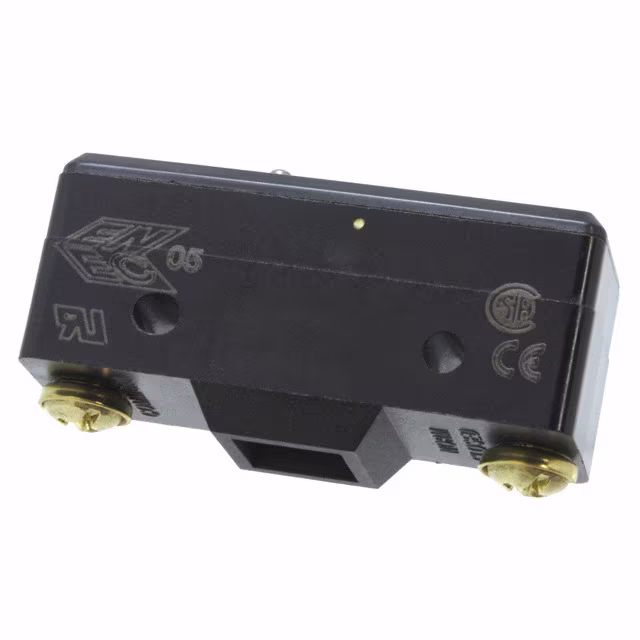

WA-2R-A2SWITCH SNAP ACT SPST-NC 20A 125V |
4,525 | 0.00 |
|
Datasheet |
WA | Bulk | Active | SPST-NC | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
YA-1R5435242-A2SWITCH SNAP ACT SPST-NO 15A 125V |
1,996 | 27.84 |
|
Datasheet |
YA | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255gf | 113gf | 0.693" (17.6mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -55°C ~ 121°C |
|

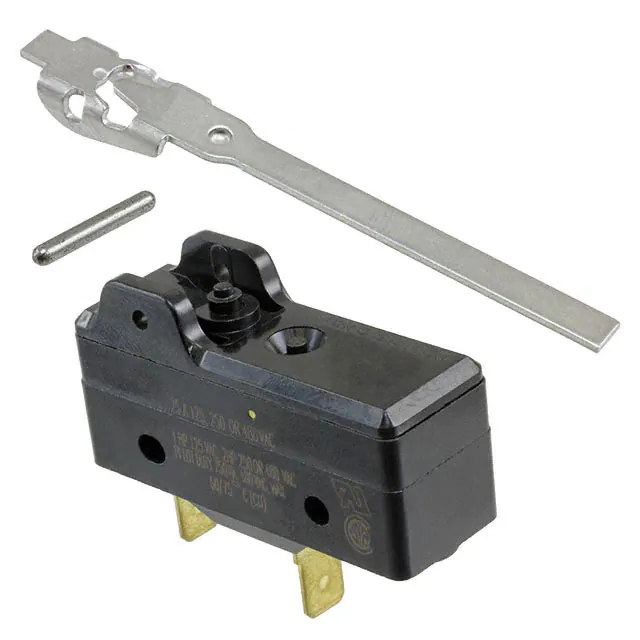

YE-2RV248-D6SWITCH SNAP ACT SPST-NO 25A 125V |
3,406 | 0.00 |
|
Datasheet |
YE | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425 ~ 595gf | 283 ~ 397gf | 0.710" (18.0mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.010" (0.25mm) | -55°C ~ 121°C |
|

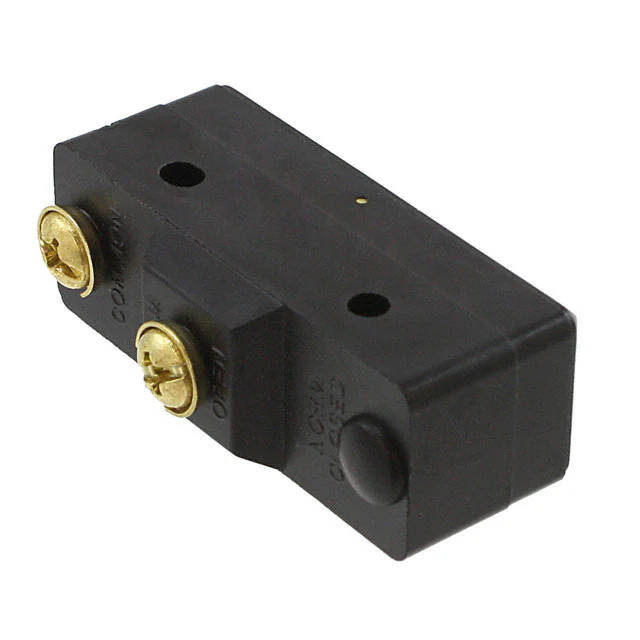

YZ-2R-A2SWITCH SNAP ACT SPST-NO 15A 125V |
2,041 | 0.00 |
|
Datasheet |
YZ | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
D2MV-01-1C1SWITCH SNAP ACT SPDT 0.1A 125V |
2,990 | 8.49 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 10gf | 0.510gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.051" (1.3mm) | -25°C ~ 80°C |
|
D2F-L20-A1SWITCH SNAP ACTION SPDT |
3,824 | 0.00 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | - | - | - | - | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | - | - | - | - | - | - | -40°C ~ 85°C |
|
D2HW-A231DLSWITCH SNAP ACT SPDT 0.1A 125V |
1,152 | 0.00 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.600" (15.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|

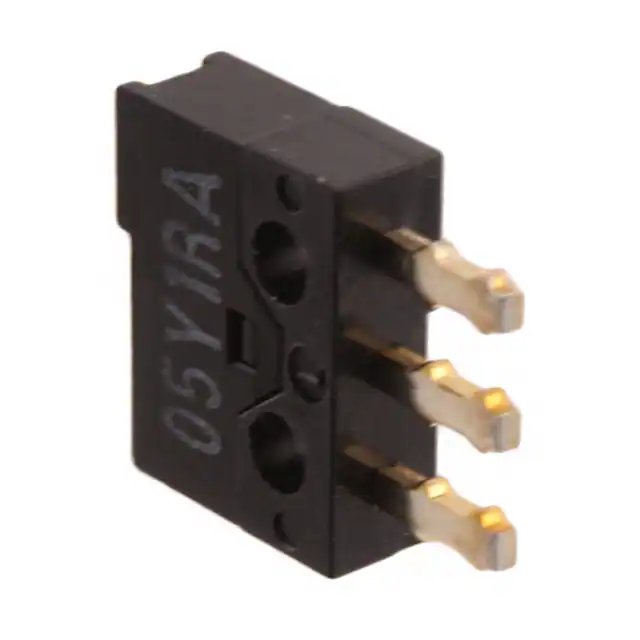

D2MQ-1-105-TRSWITCH SNAP ACT SPDT 0.05A 30V |
1,287 | 3.12 |
|
Datasheet |
D2MQ | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | - | 120gf | 21gf | 0.224" (5.7mm) | 0.015" (0.4mm) | 0.004" (0.1mm) | 0.004" (0.1mm) | -15°C ~ 70°C |
|
|
D2MV-01L13-1C3SWITCH SNAP ACT SPDT 0.1A 125V |
1,981 | 7.86 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | 2.039gf | 0.738" (18.7mm) | 0.131" (3.3mm) | 0.027" (0.7mm) | 0.075" (1.9mm) | -25°C ~ 80°C |
|
|
D2MV-1-1C1SWITCH SNAP ACTION SPDT 1A 125V |
1,045 | 7.91 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 10gf | 0.510gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.051" (1.3mm) | -25°C ~ 80°C |
