Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJ2-1328SWITCH SNAP ACTION SPDT 15A 250V |
4,000 | 20.66 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP40 | PTFE Roller | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.58mm) | -25°C ~ 80°C |
|
BZ-2RW80225-A2SWITCH SNAP ACTION SPDT 15A 125V |
1,301 | 12.57 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 127gf | 21gf | 0.750" (19.1mm) | - | 0.030" (0.76mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
BM-1R2450SWITCH SNAP ACTION SPDT 22A 125V |
4,311 | 3.51 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 312 ~ 624gf | 255gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.0008" (0.020mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|

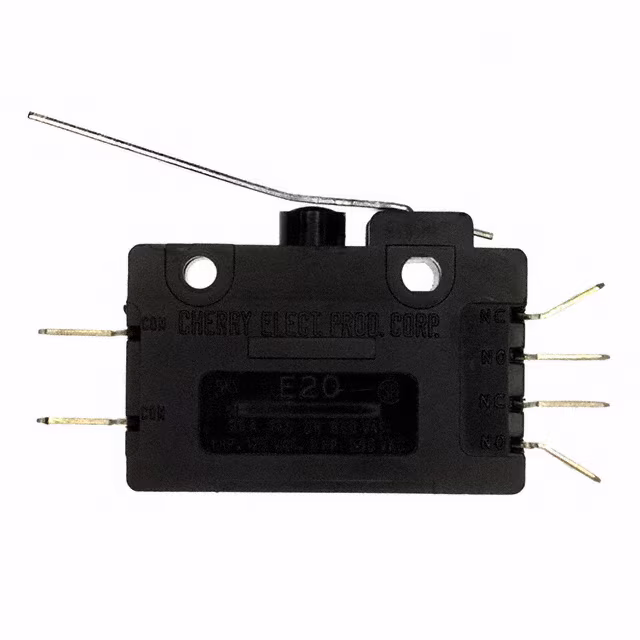

E20-00HSWITCH SNAP ACTION DPDT 20A 125V |
4,655 | 0.00 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.468" (11.9mm) | 0.330" (8.4mm) | 0.050" (1.3mm) | 0.156" (3.96mm) | -40°C ~ 105°C |
|
E78-40ASWITCH SNAP ACT DPDT 0.1A 125V |
1,340 | 12.74 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.300" (7.6mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.175" (4.5mm) | -40°C ~ 85°C |
|
YA-2RB-D504SWITCH SNAP ACT SPST-NO 20A 125V |
3,738 | 21.33 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

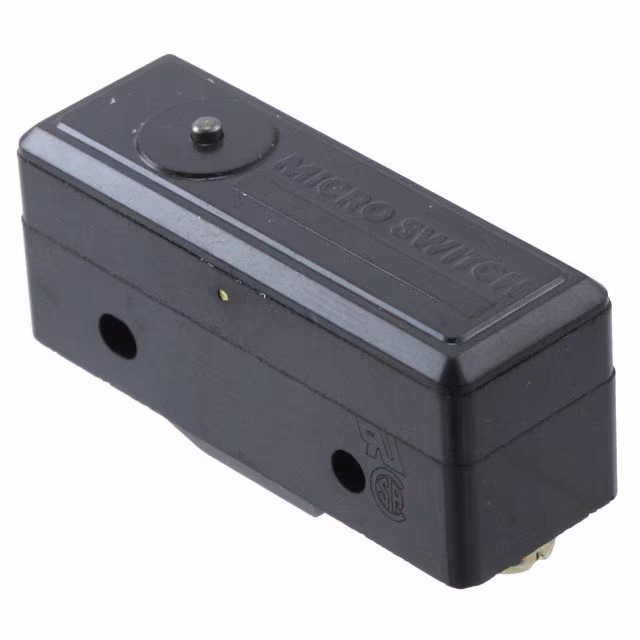

BZ-2RT04SWITCH SNAP ACTION SPDT 15A 125V |
1,669 | 0.00 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 170gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
KH-9015-HRSSWITCH SNAP ACTION SPDT 15A 125V |
2,000 | 0.00 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A | 125 V | 14 V | Lever, Roller | Chassis Mount | Screw Terminal | IP50 - Dust Protected | - | 160gf | 28gf | 1.188" (30.2mm) | 0.197" (5.0mm) | - | 0.079" (2.0mm) | -25°C ~ 80°C |
|
|
YA-1R2416-A42SWITCH SNAP ACT SPST-NO 20A 125V |
4,130 | 13.28 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 368 ~ 538gf | 283gf | 0.640" (16.3mm) | - | 0.006" (0.15mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
E20-00MSWITCH SNAP ACTION DPDT 20A 125V |
2,644 | 13.26 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1280gf | - | 0.776" (19.7mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
MJ2-1734 PH-20SWITCH SNAP ACTION SPDT 20A 250V |
4,000 | 21.18 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 200gf | 42gf | - | 0.138" (3.5mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
|
KH-9015-HRLSWITCH SNAP ACTION SPDT 15A 125V |
2,000 | 0.00 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A | 125 V | 14 V | Lever, Roller | Chassis Mount | Screw Terminal | IP50 - Dust Protected | - | 100gf | 14gf | 1.188" (30.2mm) | 0.315" (8.0mm) | - | 0.141" (3.6mm) | -25°C ~ 80°C |
|
|
E20-00KSWITCH SNAP ACTION DPDT 20A 125V |
3,832 | 13.59 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.860" (21.84mm) | 0.347" (8.8mm) | 0.045" (1.1mm) | 0.156" (3.96mm) | -40°C ~ 105°C |
|
|
41SM25-H2SWITCH SNAP ACTION SPDT 11A 250V |
2,228 | 11.60 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 113gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

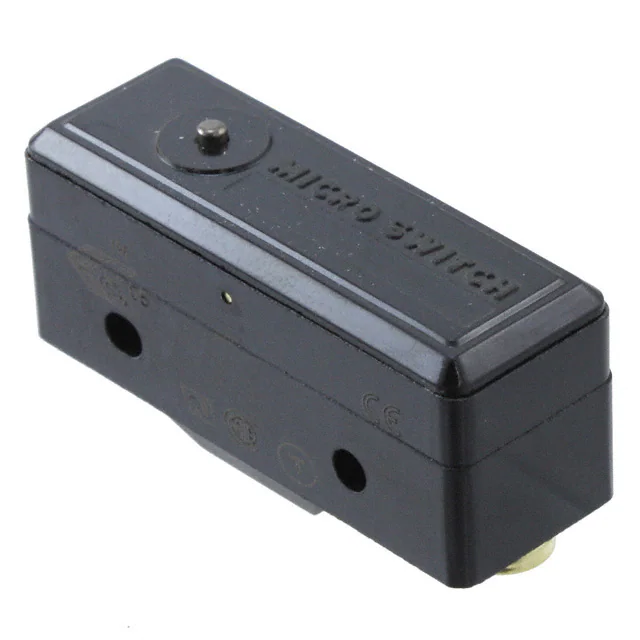

BZ-2R24-A2SWITCH SNAP ACTION SPDT 15A 125V |
2,645 | 12.18 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 121°C |
|
|
V7-2A27D8-000-5SWITCH SNAP ACT SPST-NO 5A 125V |
1,543 | 14.63 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
BA-1R357SWITCH SNAP ACTION SPDT 15A 125V |
2,780 | 7.07 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 113gf | - | 0.680" (17.3mm) | 0.040" (1.0mm) | 0.001" (0.025mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
311SM778-TSWITCH SNAP ACTION SPDT 1A 125V |
4,269 | 10.83 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.455" (11.6mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
BE-R205SWITCH SNAP ACTION SPDT 25A 125V |
4,008 | 15.07 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 567gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.001" (0.025mm) | 0.023" (0.58mm) | -55°C ~ 85°C |
|
|
BZ-2R296SWITCH SNAP ACTION SPDT 15A 125V |
2,233 | 7.30 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
