Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2F-5LSWITCH SNAP ACTION SPDT 5A 250V |
3,447 | 3.16 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
V15T16-CZ100A06-KSWITCH SNAP ACTION SPDT 16A 250V |
2,028 | 5.28 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|

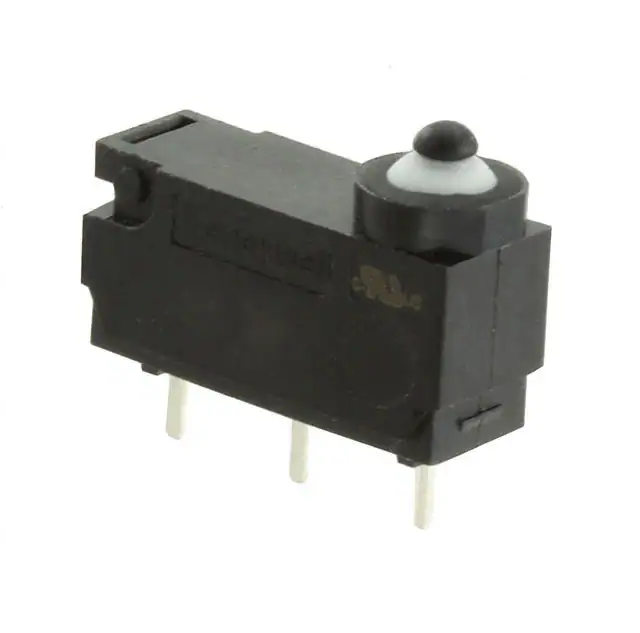

ZD30S20A01SWITCH SNAP ACTION SPDT 3A 125V |
147 | 10.09 |
|
Datasheet |
ZD | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP00 | - | 130gf | 13gf | 0.120" (3.05mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|
V15T22-E1C200SWITCH SNAP ACT SPST-NC 22A 250V |
2,951 | 4.66 |
|
Datasheet |
V15 | Bulk | Active | SPST-NC | On-Mom | 22A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
V15T16-CP200SWITCH SNAP ACT SPST-NO 16A 250V |
2,238 | 4.35 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
HDS001LSWITCH DETECTOR SPST-NO 1MA 5V |
3,849 | 2.04 |
|
Datasheet |
HDS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.059" (1.5mm) | 0.007" (0.17mm) | - | 0.020" (0.5mm) | -40°C ~ 80°C |
|
D3SH-A1R1SWITCH DETECT SPST-NO 0.001A 5V |
28,963 | 1.98 |
|
Datasheet |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Right Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
DB1C-A1LBSWITCH SNAP ACTION SPDT 5A 125V |
18,767 | 2.00 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | - | 0.420" (10.7mm) | 0.157" (4.0mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|

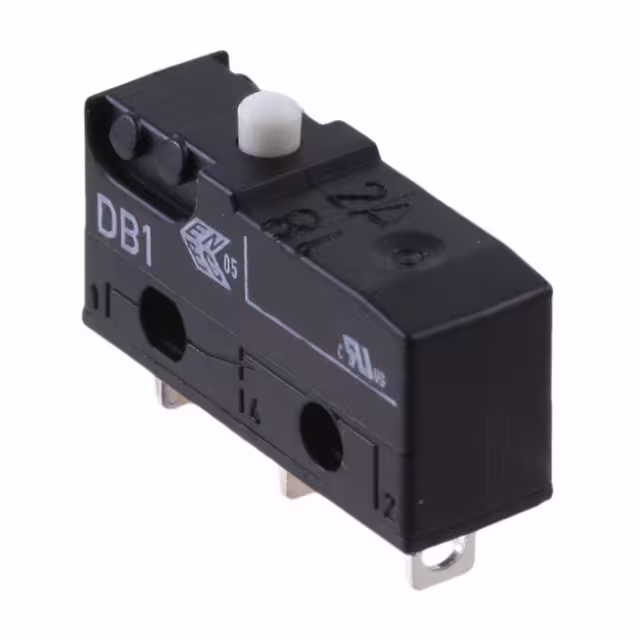

DB1C-A1AASWITCH SNAP ACTION SPDT 5A 125V |
11,237 | 2.92 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
D3V-01-1C23SWITCH SNAP ACT SPDT 0.1A 125V |
6,246 | 2.52 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
.jpg)
|
D3V-21G-1C4ASWITCH SNAP ACT SPDT 21A 250V |
736 | 2.92 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 21A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|

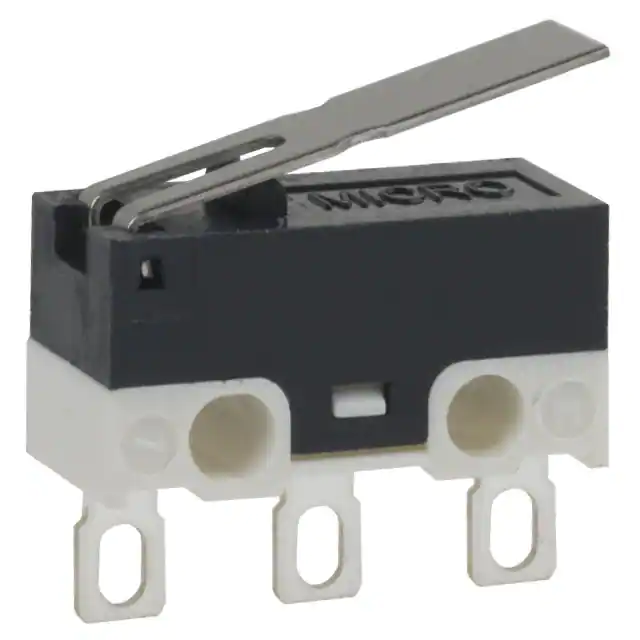

ZX10E10C01SWITCH SNAP ACTION SPDT 0.1A 48V |
481 | 2.86 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 48gf | 8.000gf | 0.330" (8.4mm) | 0.134" (3.4mm) | 0.050" (1.3mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

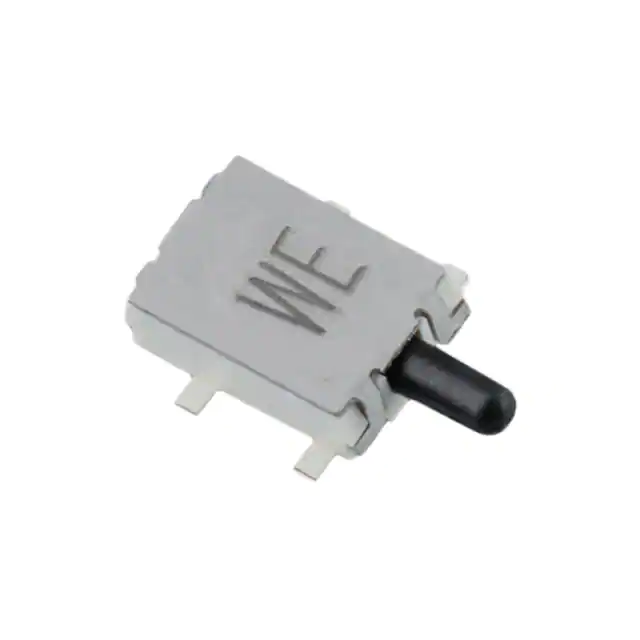

461011442105SWITCH DETECTOR SPST-NO 0.1A 12V |
1,616 | 2.26 |
|
Datasheet |
WS-DESU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 100gf | - | 0.136" (3.45mm) | 0.018" (0.45mm) | - | - | -40°C ~ 85°C |
|
D2FC-F-7N(100M)RELIABLE AND LONG LIFE MOUSE SWI |
545 | 0.00 |
|
Datasheet |
D2FC | Bag | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 60gf | 24gf | 0.272" (6.9mm) | - | 0.005" (0.13mm) | 0.008" (0.2mm) | -25°C ~ 65°C |
|
SS-5-FSWITCH SNAP ACTION SPDT 5A 125V |
10,750 | 2.56 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|

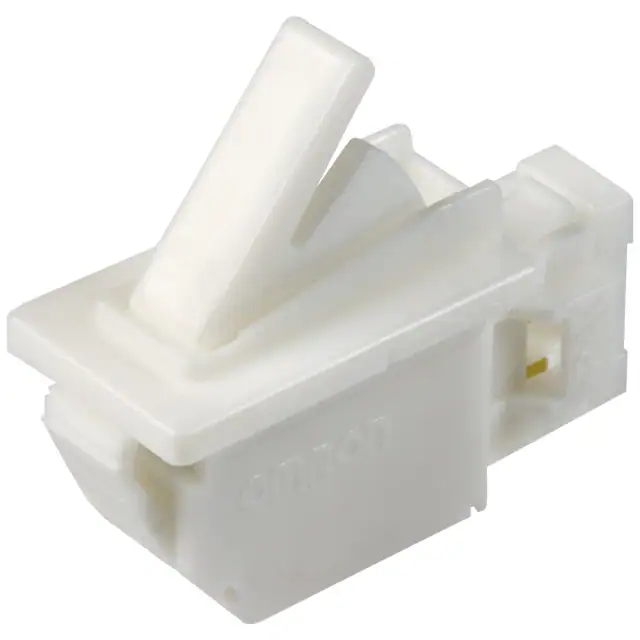

D3D-231SWITCH DETECTOR SPST-NO 1A 125V |
6,757 | 2.73 |
|
Datasheet |
D3D | Tray | Active | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Connector | IP00 | White Actuator | 204gf | - | 0.453" (11.5mm) | - | - | - | -30°C ~ 60°C |
|

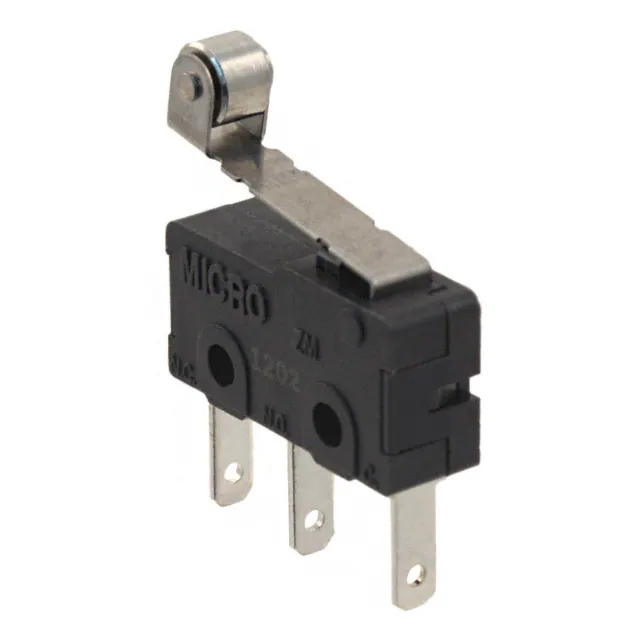

ZM50E70F01SWITCH SNAP ACTION SPDT 5A 125V |
16,463 | 2.86 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 35gf | 8.000gf | 0.689" (17.5mm) | 0.150" (3.8mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -40°C ~ 120°C |
|

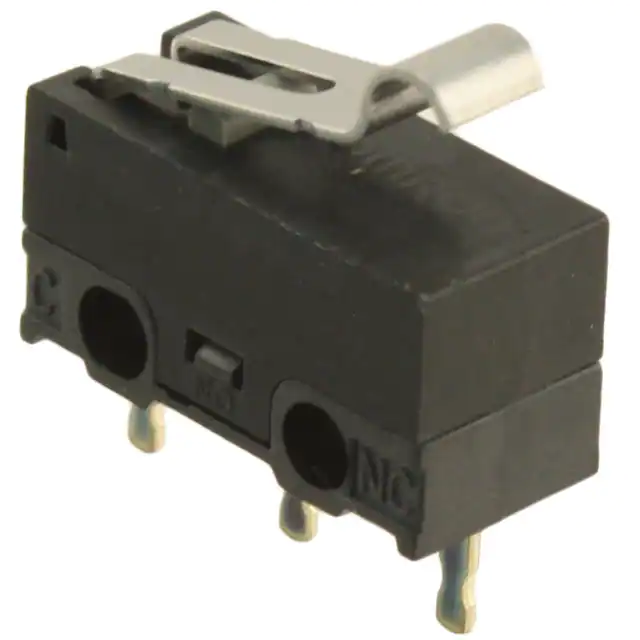

D2FL30D3SWITCH SNAP ACTION SPDT 3A 125V |
459 | 2.03 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 150gf | 4.079gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
D2GW-A03HSEALED SWITCH PCB PIN PLUNGER |
428 | 0.00 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

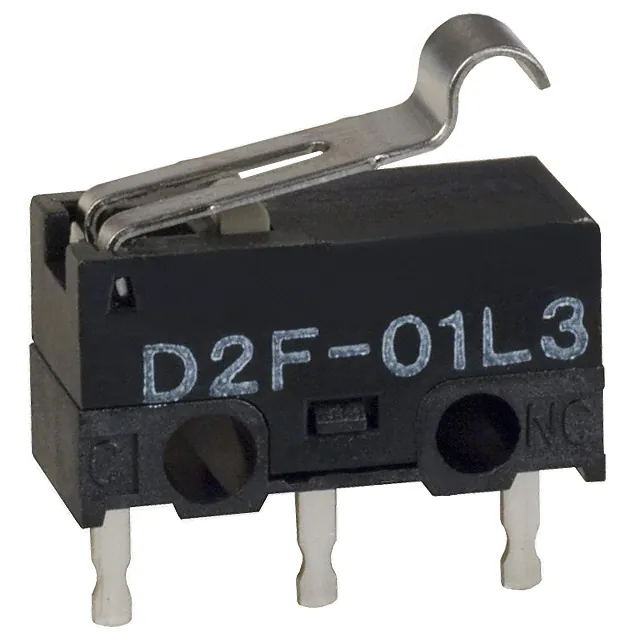

D2F-01L3SWITCH SNAP ACTION SPDT 0.1A 30V |
33,949 | 2.59 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
