Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A-20GQ-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
2,280 | 37.28 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP00 | - | 400 ~ 625gf | 285gf | 0.859" (21.8mm) | 0.051" (1.3mm) | 0.008" (0.2mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
X-10GW2-BSWITCH SNAP ACTION SPDT 10A 30V |
4,476 | 34.37 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 145gf | 21gf | 1.266" (32.2mm) | - | 0.118" (3.0mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|

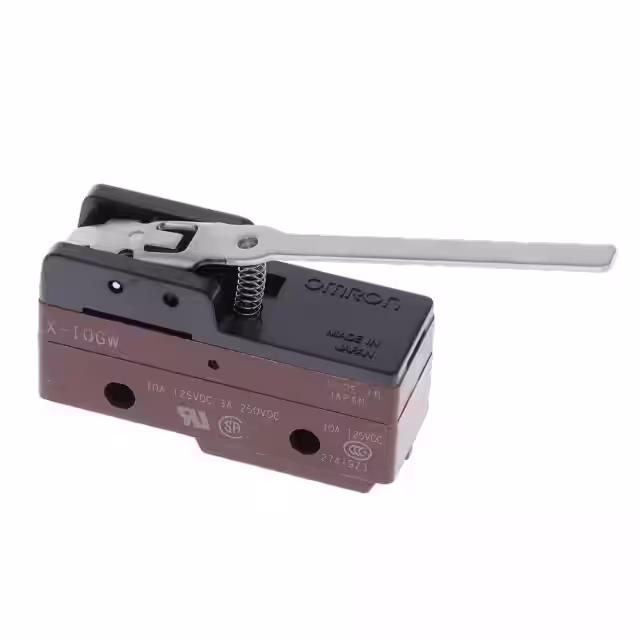

X-10GWSWITCH SNAP ACTION SPDT 10A 30V |
2,876 | 34.37 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 110gf | 14gf | 0.831" (21.1mm) | - | 0.154" (3.9mm) | 0.190" (4.8mm) | -25°C ~ 80°C |
|

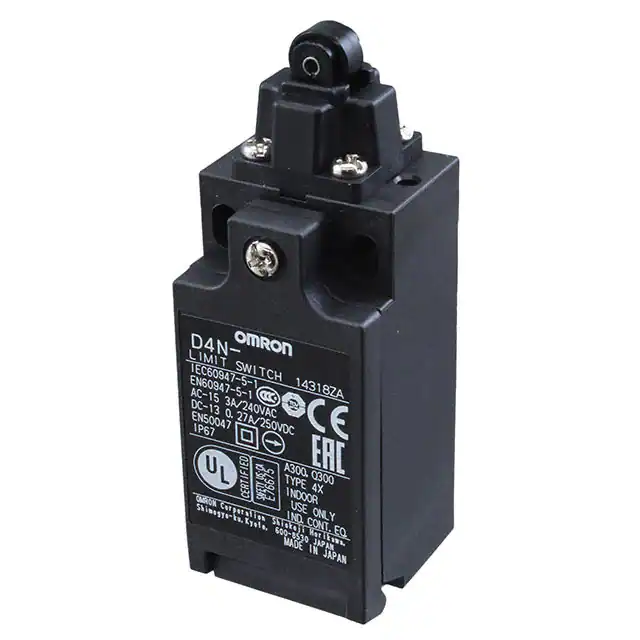

D4N-2132SWITCH SNAP ACTION DPST 3A 240V |
2,096 | 33.11 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|

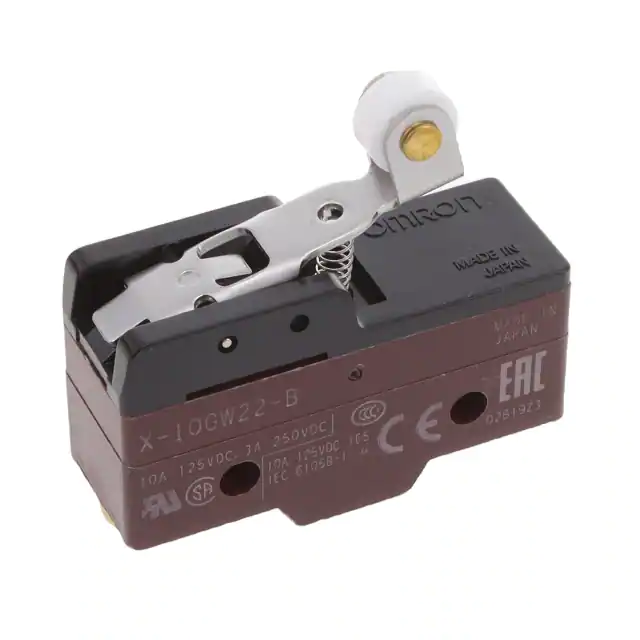

X-10GW22-BSWITCH SNAP ACTION SPDT 10A 30V |
1,024 | 35.54 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 220gf | 35gf | 1.266" (32.2mm) | - | 0.065" (1.7mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|

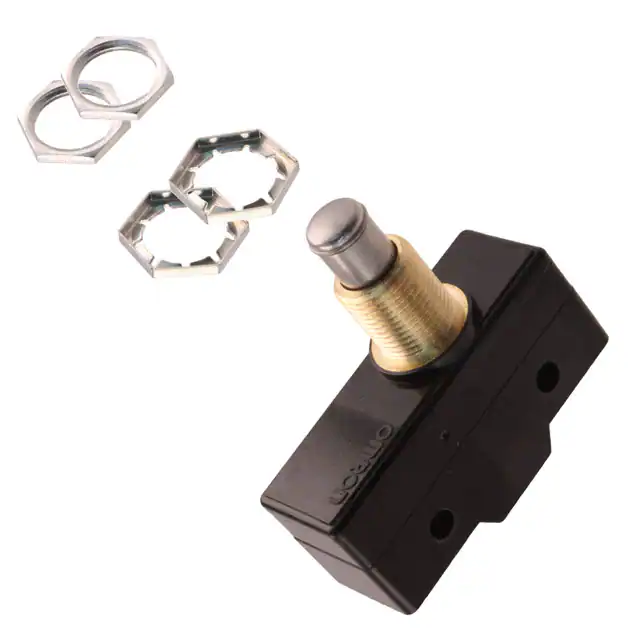

A-20GQ-BSWITCH SNAP ACTION SPDT 20A 125V |
1,841 | 40.15 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP00 | - | 400 ~ 625gf | 285gf | 0.859" (21.8mm) | 0.051" (1.3mm) | 0.008" (0.2mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|

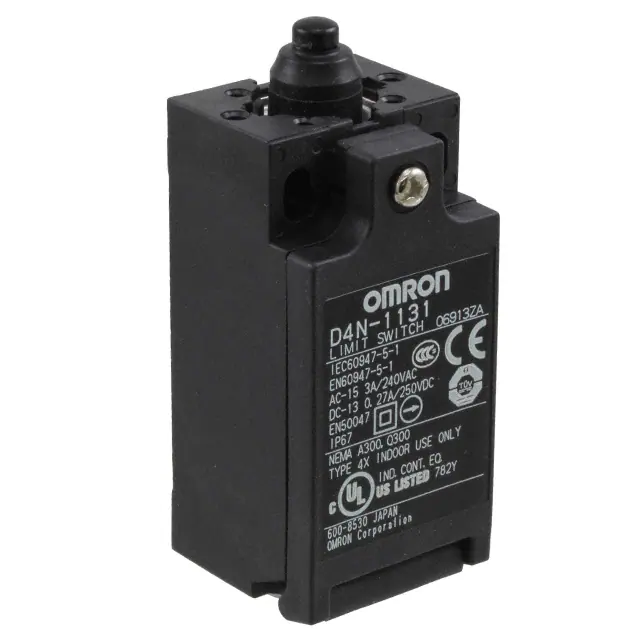

D4N-1131SWITCH SNAP ACTION DPST 3A 240V |
2,740 | 35.31 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
NGCPB10AX01A1ASWITCH SNAP ACTION DPST 6A 120V |
2,524 | 33.02 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
BZ-2RDS-A2-SSWITCH SNAP ACTION SPDT 15A 125V |
2,483 | 39.22 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 368 ~ 538gf | 113gf | 1.110" (28.2mm) | - | 0.002" (0.05mm) | 0.062" (1.6mm) | -55°C ~ 85°C |
|

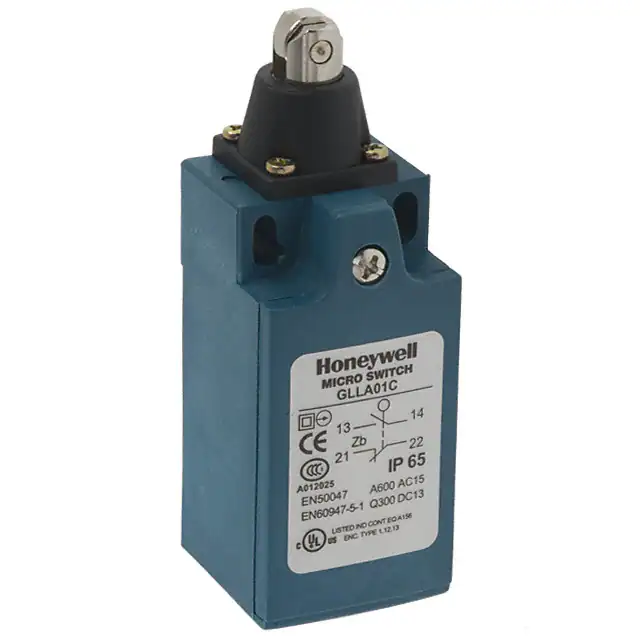

GLLA01CSWITCH SNAP ACTION SPDT 10A 300V |
3,550 | 32.05 |
|
Datasheet |
GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1000gf | 153gf | 1.130" (28.7mm) | 0.110" (2.8mm) | 0.060" (1.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

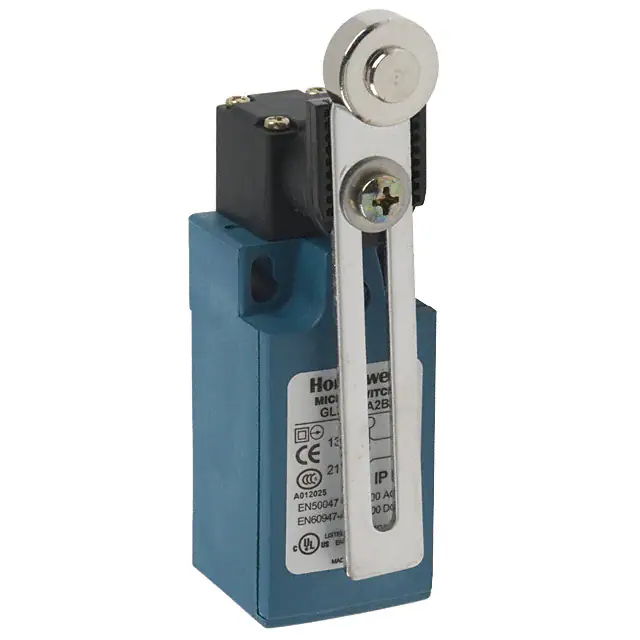

GLLA01A2BSWITCH SNAP ACTION SPDT 10A 300V |
4,526 | 34.53 |
|
Datasheet |
GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Metal Roller | 12gfm | 2.039gfm | 30° | 30° | 18° | 40° | -10°C ~ 80°C |
|

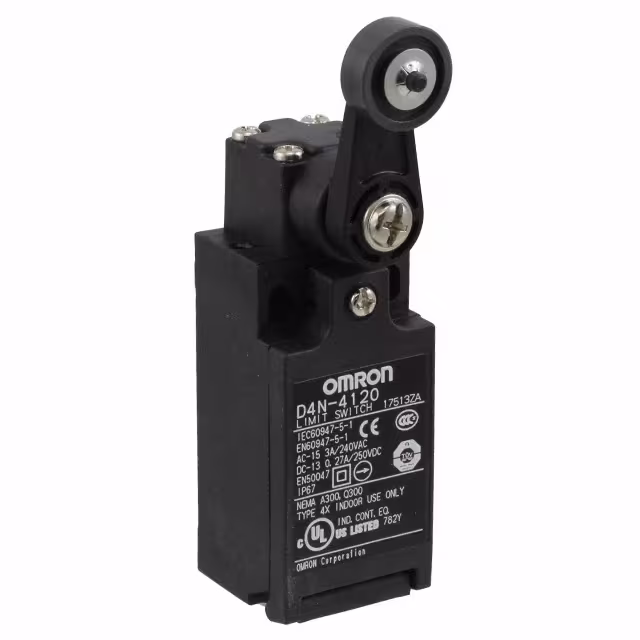

D4N-4120SWITCH SNAP ACTION DPST 3A 240V |
3,134 | 48.06 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|

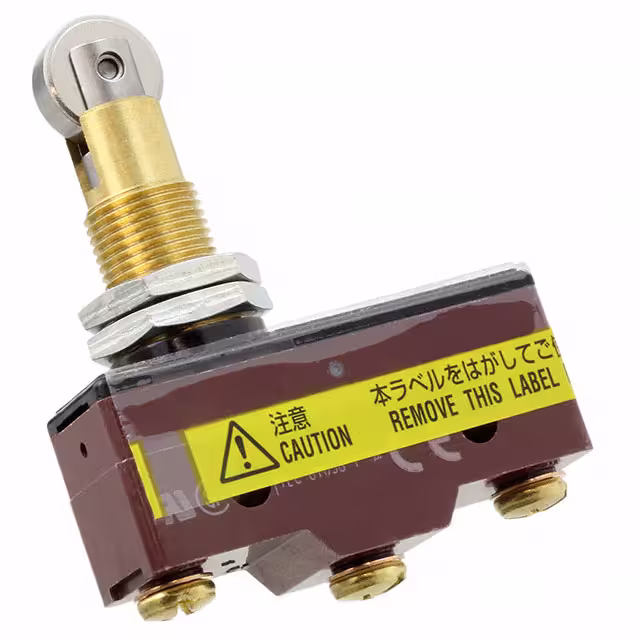

X-10GQ22-BSWITCH SNAP ACTION SPDT 10A 30V |
1,242 | 48.75 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 510gf | 114gf | 1.313" (33.4mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

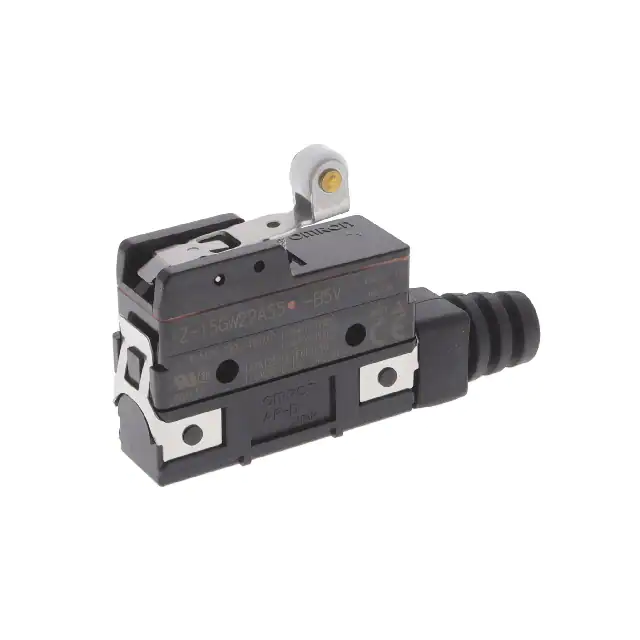

Z-15GW22A55-B5VSWITCH SNAP ACTION SPDT 15A 125V |
2,891 | 50.18 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 200gf | 42gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -15°C ~ 80°C |
|

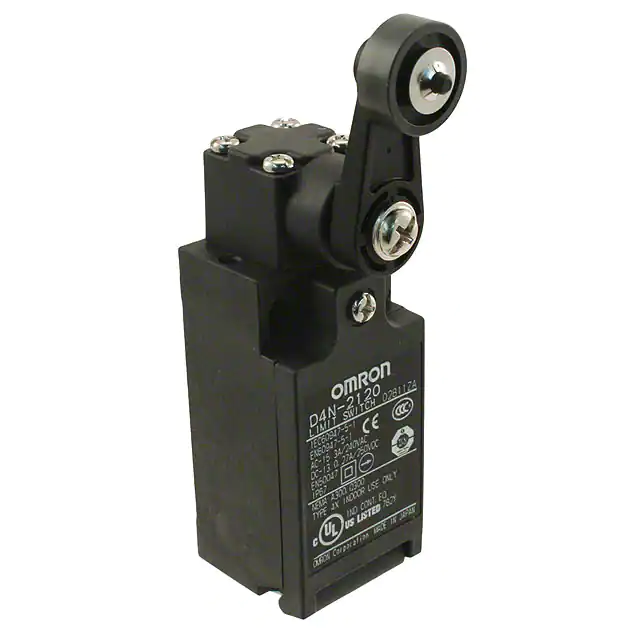

D4N-2120SWITCH SNAP ACTION DPST 3A 240V |
3,574 | 43.05 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|

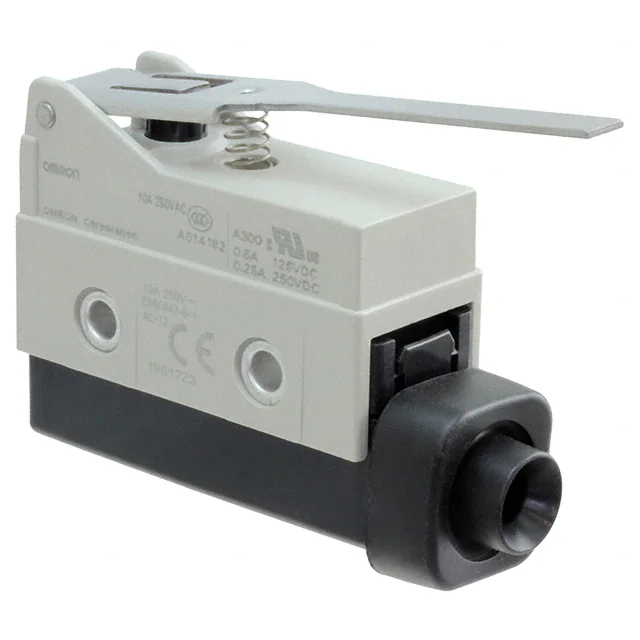

D4MC-1000SWITCH SNAP ACTION SPDT 10A 125V |
1,244 | 41.53 |
|
Datasheet |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 170gf | 25gf | 0.984" (25.0mm) | - | 0.118" (3.0mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
Z-15GQ2255-BSWITCH SNAP ACTION SPDT 15A 125V |
1,095 | 41.82 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 1.313" (33.4mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -15°C ~ 80°C |
|

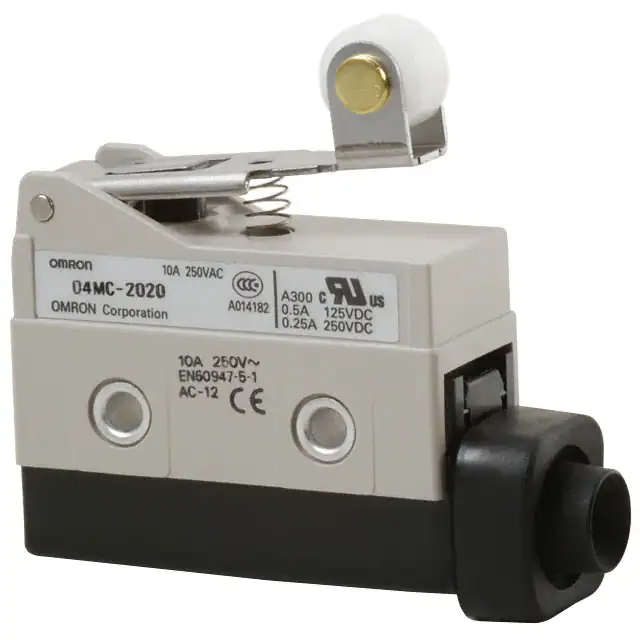

D4MC-2020SWITCH SNAP ACTION SPDT 10A 125V |
3,948 | 46.72 |
|
Datasheet |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 300gf | 40gf | 1.575" (40.0mm) | - | 0.060" (1.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|

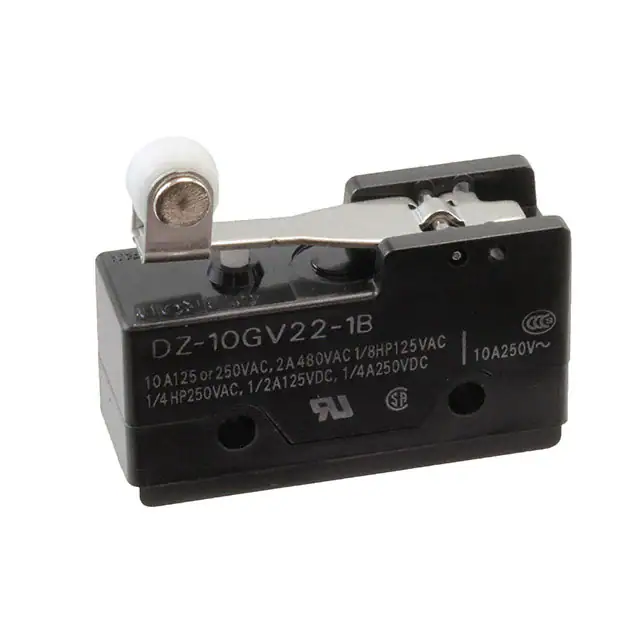

DZ-10GV22-1BSWITCH SNAP ACTION DPDT 10A 125V |
2,626 | 45.40 |
|
Datasheet |
DZ | Tray | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 430gf | 42gf | 1.156" (29.4mm) | 0.120" (3.0mm) | 0.025" (0.6mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
D4N-2C20SWITCH SNAP ACTION 3PST 3A 240V |
3,071 | 47.83 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
