Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V-156-1C26SWITCH SNAP ACTION SPDT 15A 250V |
2,142 | 5.38 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 25gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D3V-163-3C5SWITCH SNAP ACT SPST-NO 16A 250V |
1,732 | 3.33 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
D3V-21G2-1C4A-KSWITCH SNAP ACT SPDT 21A 250V |
3,803 | 4.90 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 80gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|

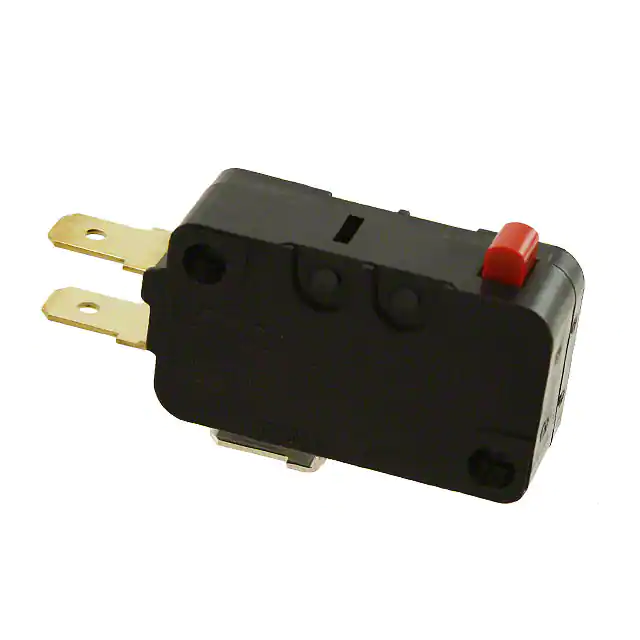

D3V-16-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
1,877 | 3.71 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
V-15-2A5SWITCH SNAP ACT SPST-NC 15A 250V |
4,633 | 5.17 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
.jpg)
|
D3V-01-1C24-KSWITCH SNAP ACT SPDT 0.1A 125V |
100 | 3.37 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

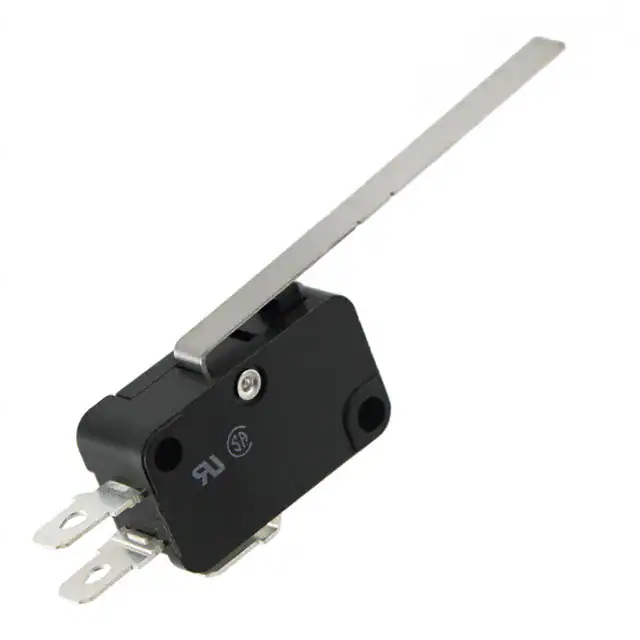

V-153-1A5SWITCH SNAP ACTION SPDT 15A 250V |
4,615 | 4.90 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
|
D3V-163-1A4SWITCH SNAP ACTION SPDT 16A 250V |
2,321 | 3.85 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 105°C |
|

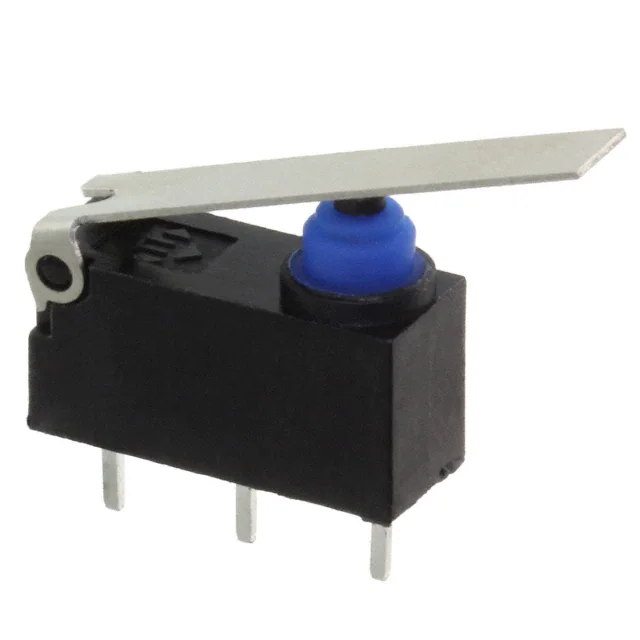

WS0850101F050PASWITCH SNAP ACTION SPDT 1A 24V |
4,935 | 3.48 |
|
Datasheet |
WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | - | 0.528" (13.4mm) | - | - | - | -25°C ~ 85°C |
|

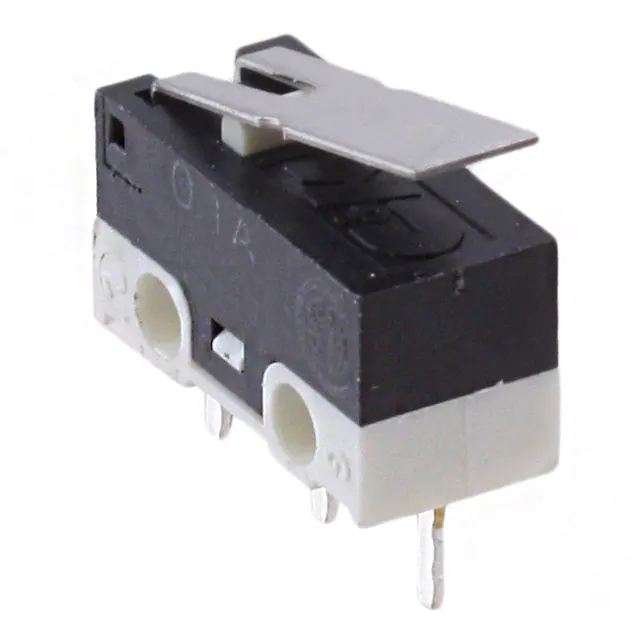

ZMCHM9L3TSWITCH SNAP ACT SPDT 200MA 60V |
3,483 | 3.34 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole | PC Pin | - | - | 30gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|

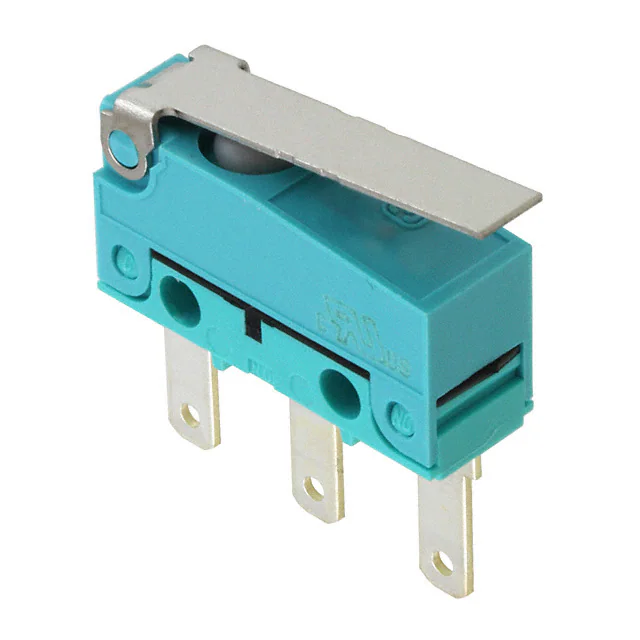

ABS1112419SWITCH SNAP ACT SPDT 0.1A 125V |
2,150 | 3.71 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
D3V-16G4M-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
4,910 | 3.87 |
|
Datasheet |
D3V | Tray | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

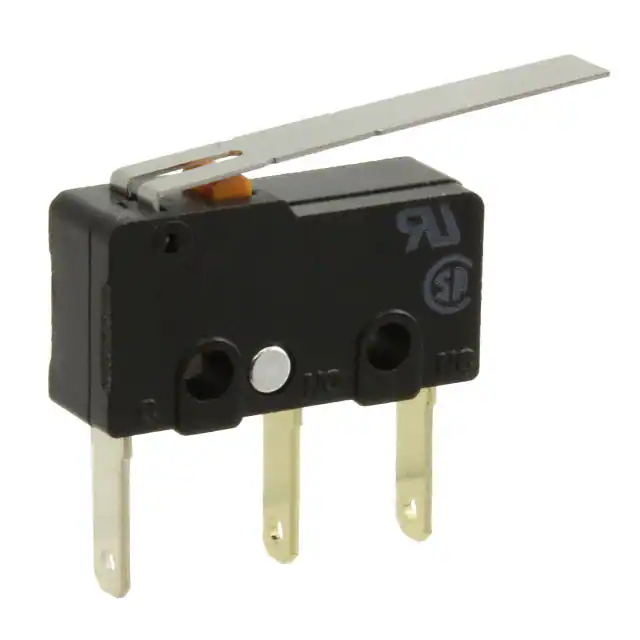

SS-5GL111TSWITCH SNAP ACTION SPDT 5A 125V |
2,412 | 3.57 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 40gf | 3.059gf | 0.345" (8.8mm) | - | 0.047" (1.2mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-016-3C23SWITCH SNP ACT SPST-NO 0.1A 125V |
4,682 | 3.55 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|

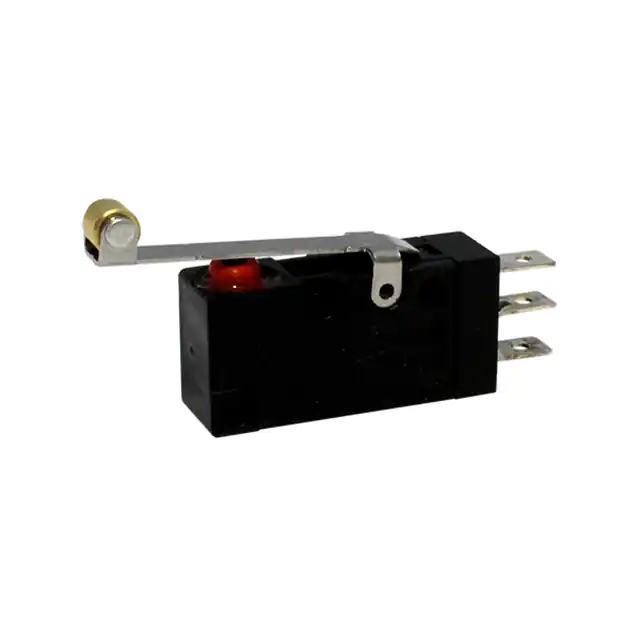

VM3SCQF1802L01SWITCH LIMIT SPDT 10A 125V |
1,782 | 5.10 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 140gf | 50gf | 0.807" (20.50mm) | 0.100" (2.5mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

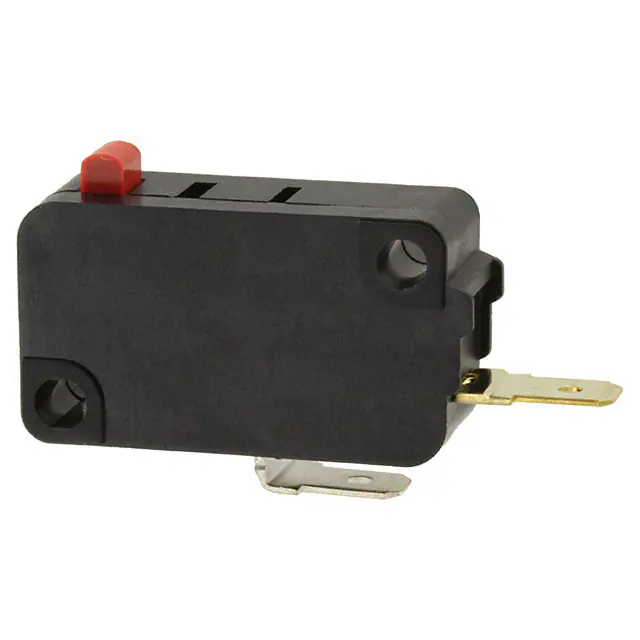

VX-5-3C22SWITCH SNAP ACT SPST-NO 5A 125V |
2,802 | 4.02 |
|
Datasheet |
VX | Bulk | Active | SPST-NO | Off-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

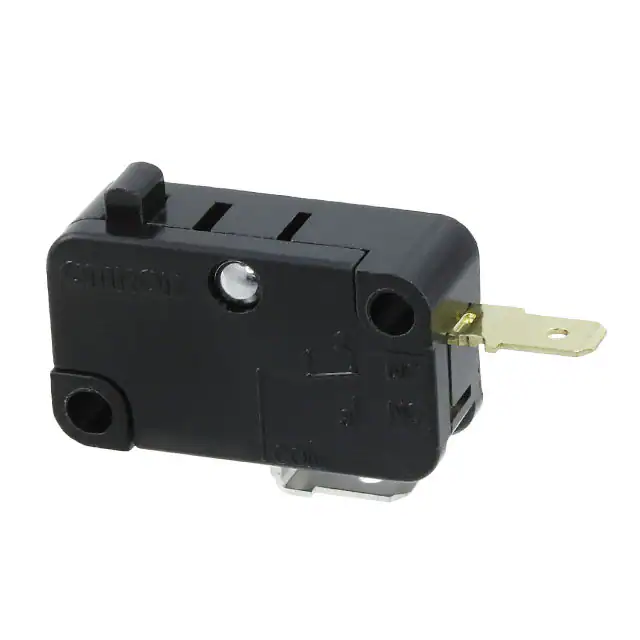

V-15-2C25SWITCH SNAP ACT SPST-NC 15A 250V |
1,788 | 3.73 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
D3V-164-1C5SWITCH SNAP ACTION SPDT 16A 250V |
4,044 | 3.74 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

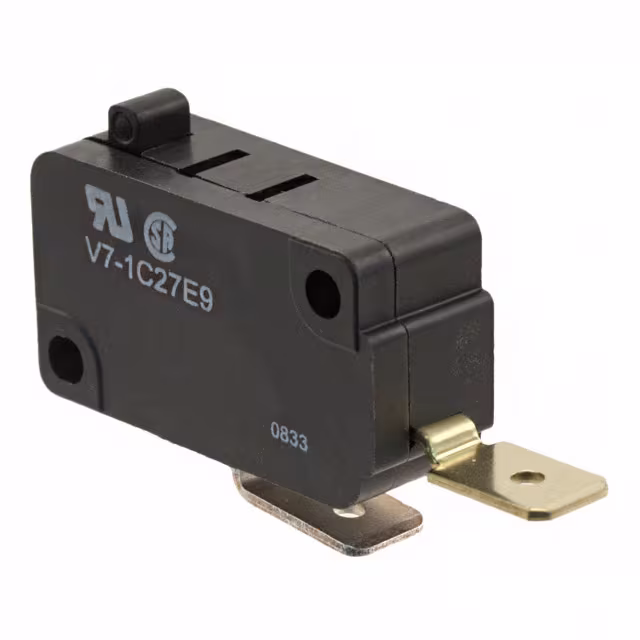

V7-1C27E9SWITCH SNAP ACT SPST-NO 15A 125V |
3,057 | 4.35 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
VX-54-1A3SWITCH SNAP ACTION SPDT 5A 125V |
4,780 | 5.22 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | 2.039gfm | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
