Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

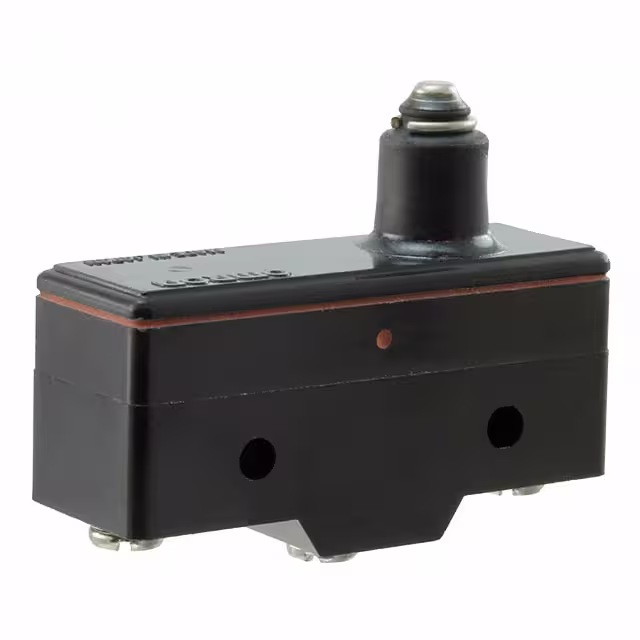

Z-15GS55-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
3,786 | 43.01 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | 250 ~ 350gf | 114gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|

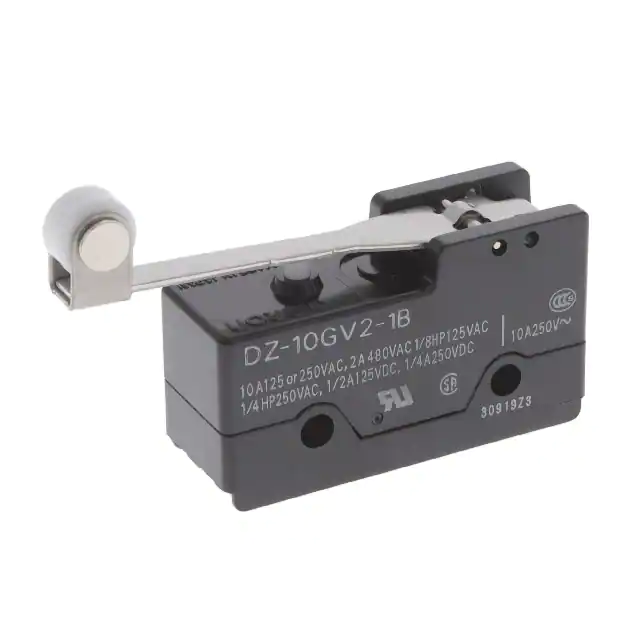

DZ-10GV2-1BSWITCH SNAP ACTION DPDT 10A 125V |
2,196 | 52.57 |
|
Datasheet |
DZ | Tray | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 270gf | 34gf | 1.156" (29.4mm) | 0.157" (4.0mm) | 0.045" (1.1mm) | 0.010" (0.25mm) | -25°C ~ 80°C |
|

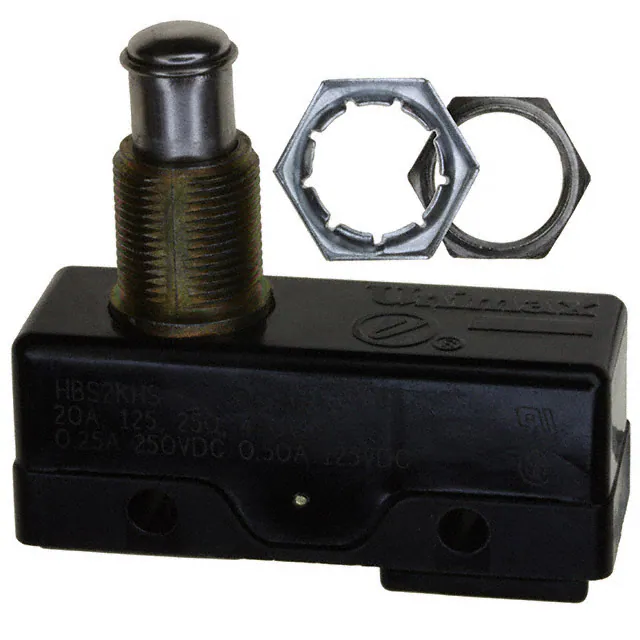

HBS2KHB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V |
2,350 | 43.22 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 567gf | 113gf | 0.860" (21.84mm) | 0.025" (0.65mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|
Z-01HW2255-BSWITCH SNAP ACT SPDT 0.1A 125V |
4,421 | 45.40 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 200gf | 28gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -15°C ~ 80°C |
|

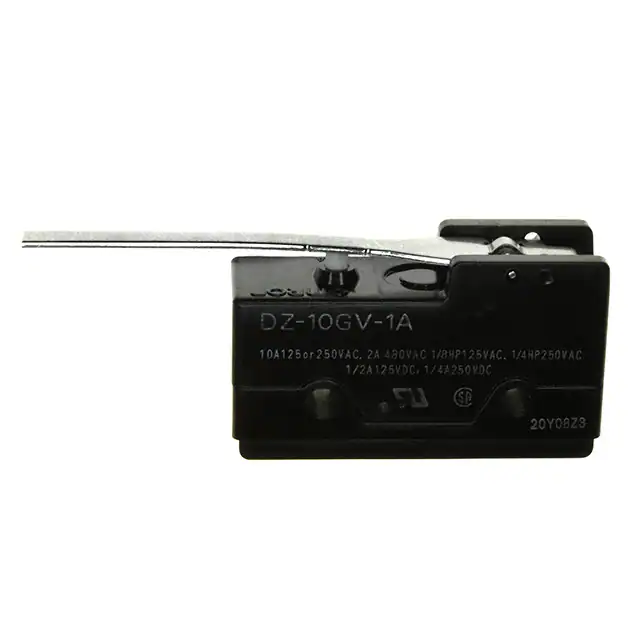

DZ-10GV-1ASWITCH SNAP ACTION DPDT 10A 125V |
2,292 | 43.01 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 200gf | 13gf | 0.720" (18.3mm) | 0.236" (6.0mm) | 0.065" (1.7mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
DZ-10GV2-1ASWITCH SNAP ACTION DPDT 10A 125V |
1,996 | 43.01 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 270gf | 34gf | 1.156" (29.4mm) | 0.157" (4.0mm) | 0.045" (1.1mm) | 0.010" (0.25mm) | -25°C ~ 80°C |
|
D4N-2C32SWITCH SNAP ACTION 3PST 3A 240V |
3,892 | 47.83 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
Z-01HQ22SWITCH SNAP ACT SPDT 0.1A 125V |
4,845 | 45.40 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Solder Lug | IP00 | - | 200 ~ 285gf | 114gf | 1.313" (33.4mm) | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

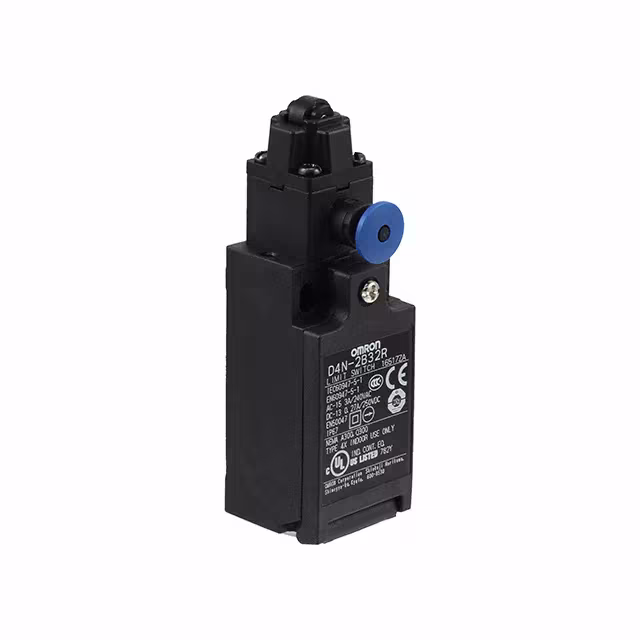

D4N-2B32RSWITCH SNAP ACT DPST-NC 10A 120V |
2,349 | 51.02 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
D4N-1C32SWITCH SNAP ACTION 3PST 3A 240V |
1,782 | 51.02 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|

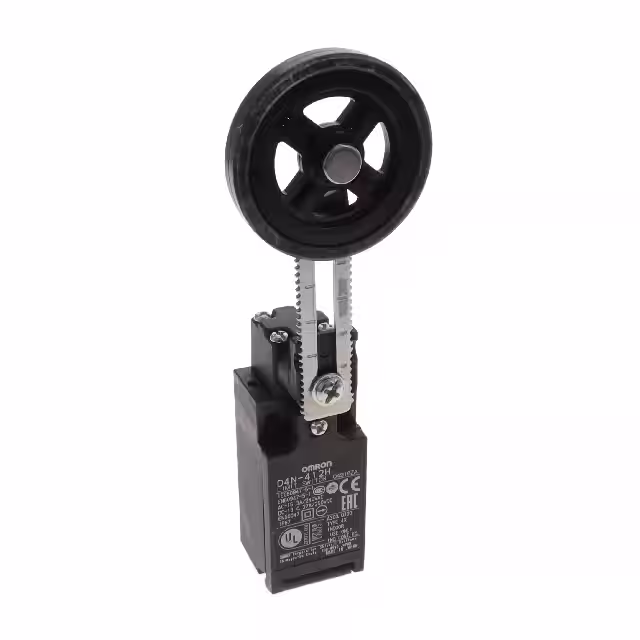

D4N-412HSWITCH SNAP ACTION DPST 3A 240V |
1,442 | 53.21 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Rubber Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-1C72SWITCH SNAP ACTION 3PST 3A 240V |
1,444 | 54.21 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|

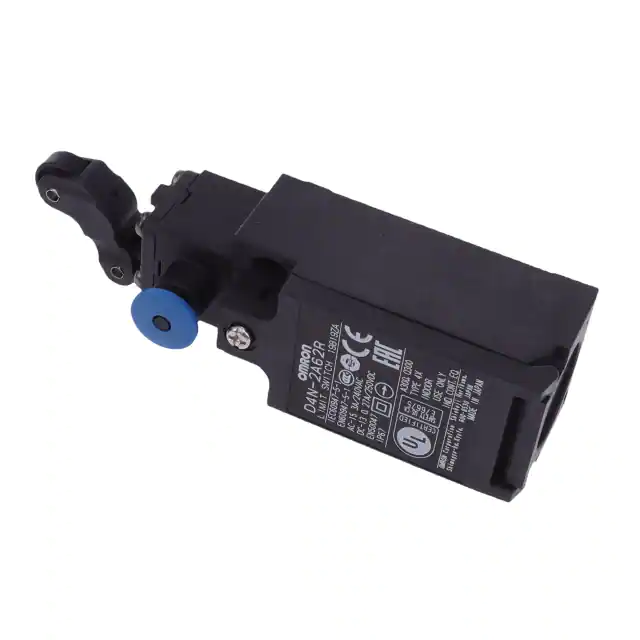

D4N-2A62RSWITCH SNAP ACTION DPST 10A 120V |
1,804 | 51.02 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 10A (AC), 2.5A (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 765gf | - | 2.087" (53.0mm) | 0.157" (4.0mm) | - | - | -30°C ~ 70°C |
|

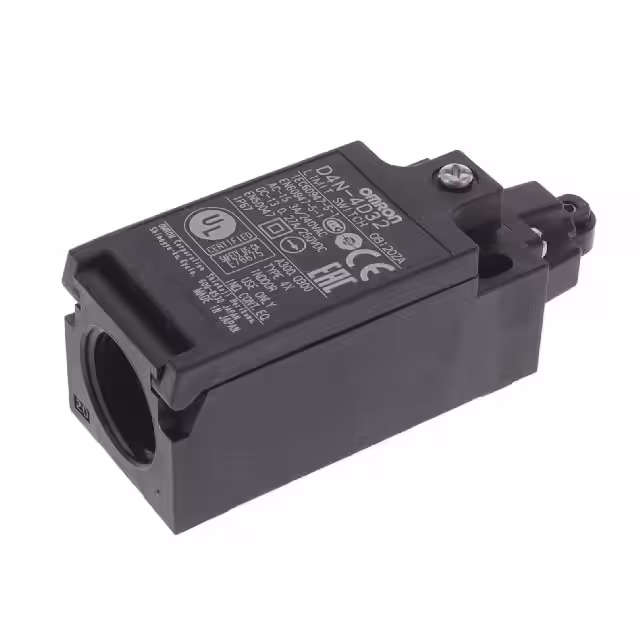

D4N-4D32SWITCH SNAP ACT 3PST-NC 3A 240V |
1,846 | 51.02 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
DZ-10GW2-1ASWITCH SNAP ACTION DPDT 10A 125V |
3,687 | 48.99 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 213gf | 42gf | 1.250" (31.8mm) | - | 0.135" (3.4mm) | 0.047" (1.2mm) | -25°C ~ 80°C |
|
D4N-2B20SWITCH SNAP ACT DPST-NC 3A 240V |
3,168 | 54.21 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|

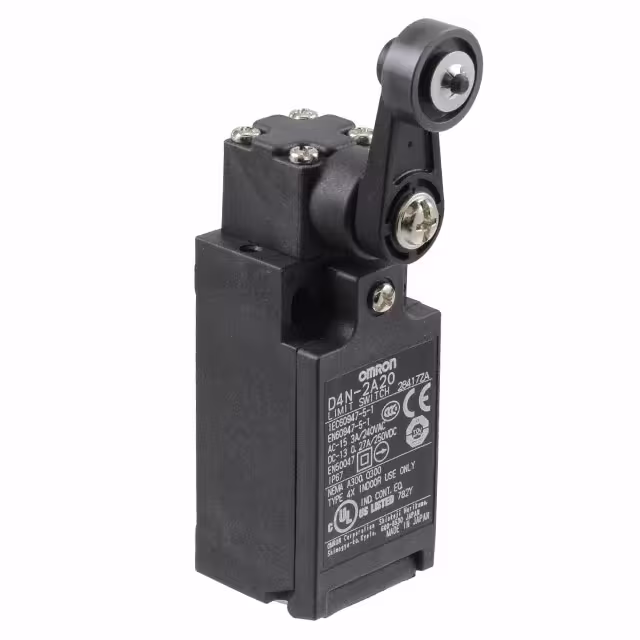

D4N-2A20SWITCH SNAP ACTION DPST 3A 240V |
1,916 | 54.21 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|

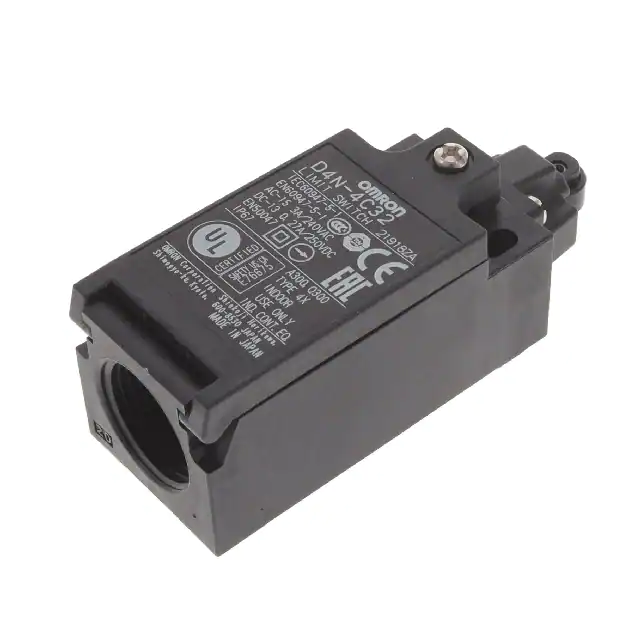

D4N-4C32SWITCH SNAP ACTION 3PST 3A 240V |
1,103 | 51.02 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|

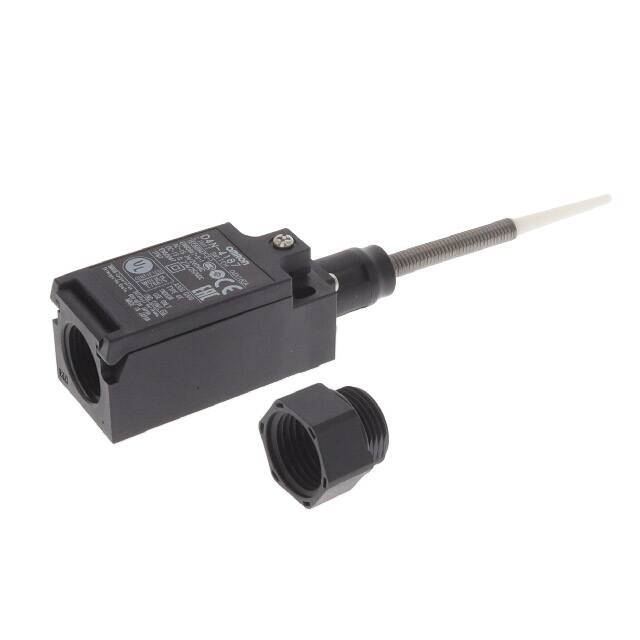

D4N-4187-NPTSWITCH SNAP ACTION DPST 3A 240V |
2,884 | 75.64 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 153gf | - | - | 15° | - | - | -30°C ~ 70°C |
|
D4N-4C32-NPTSWITCH SNAP ACTION 3PST 3A 240V |
1,452 | 66.74 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
