Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW3M0SWITCH SNAP ACTION SPDT 3A 125V |
4,255 | 18.11 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

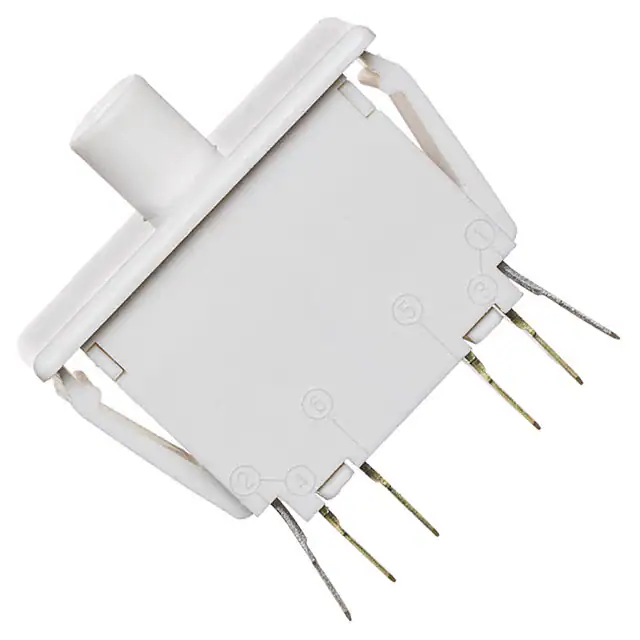

DS2F5AQ3SWITCH SNAP ACT DPDT 100MA 125V |
1,942 | 18.71 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
D2MC-5H1SWITCH SNAP ACTION SPDT 5A 125V |
1,082 | 20.71 |
|
Datasheet |
D2MC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Without | Chassis Mount | Quick Connect - 0.205" (5.2mm) | IP40 | - | 0.102gfm | 0.013gfm | - | 21° | 3° | 17° | -25°C ~ 80°C |
|
X0231341SWITCH SNAP ACTION SPDT 5A 125V |
1,648 | 14.74 |
|
Datasheet |
83132 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 82gf | 17gf | 0.610" (15.5mm) | 0.081" (2.05mm) | 0.037" (0.94mm) | - | -20°C ~ 125°C |
|
X-10GSSWITCH SNAP ACTION SPDT 10A 30V |
2,519 | 36.55 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | 510gf | 114gf | 1.110" (28.2mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
|
D2RV-L11ESWITCH SNAP SPST-NO 0.25A 100V |
4,256 | 31.30 |
|
Datasheet |
D2RV | Bulk | Active | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | - | 0.591" (15.0mm) | 0.071" (1.8mm) | 0.040" (1.0mm) | 0.015" (0.4mm) | -10°C ~ 60°C |
|

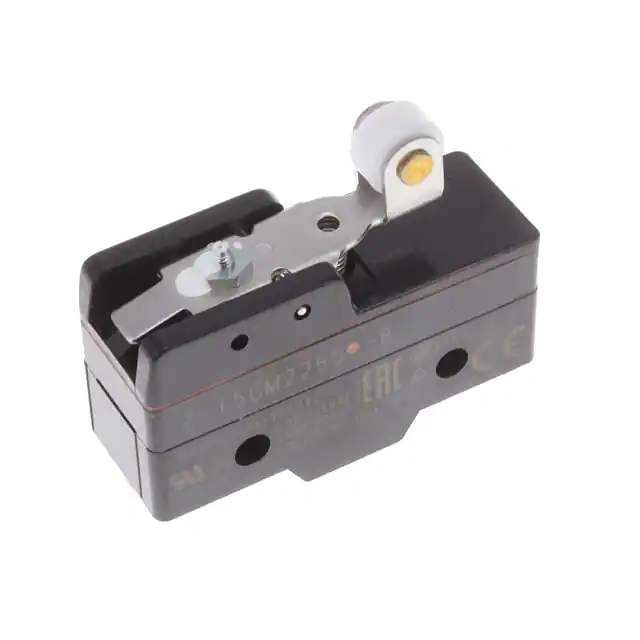

Z-15GM2255-BSWITCH SNAP ACTION SPDT 15A 125V |
1,834 | 30.93 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 538gf | 170gf | 1.156" (29.4mm) | - | 0.011" (0.28mm) | 0.079" (2.0mm) | -15°C ~ 80°C |
|
Z-15HDSWITCH SNAP ACTION SPDT 15A 125V |
1,210 | 24.73 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | 200 ~ 285gf | 114gf | 0.846" (21.5mm) | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|

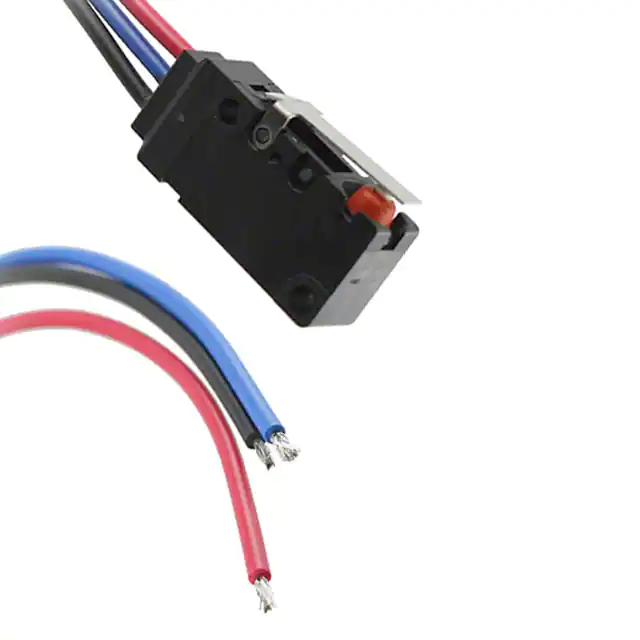

D2VW-5L1A-1MSSWITCH SNAP ACTION SPDT 5A 125V |
3,408 | 20.73 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 20gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

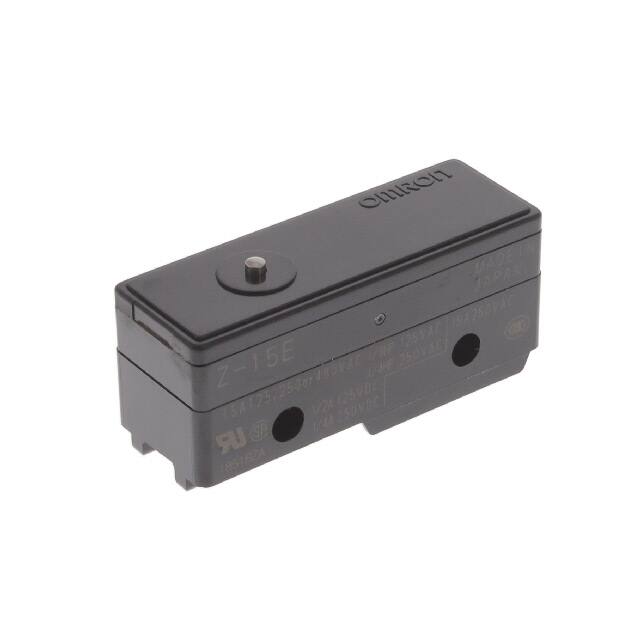

Z-15ESWITCH SNAP ACTION SPDT 15A 125V |
4,411 | 22.50 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | 625 ~ 800gf | 114gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
MMGGD1L0CSWITCH SNAP ACTION SPDT 7A 250V |
2,763 | 25.92 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
-1MS SERIES.jpg)
|
D2VW-5-1M-0SWITCH SNAP ACTION SPDT 5A 125V |
4,185 | 25.40 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
GLLA06A2BSWITCH SNAP ACT DPST-NC 10A 300V |
1,897 | 36.72 |
|
Datasheet |
GLL | Bulk | Active | DPST-NC | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Metal Roller | 8.157gfm | 2.039gfm | 15° | 20° | - | 40° | -10°C ~ 80°C |
|

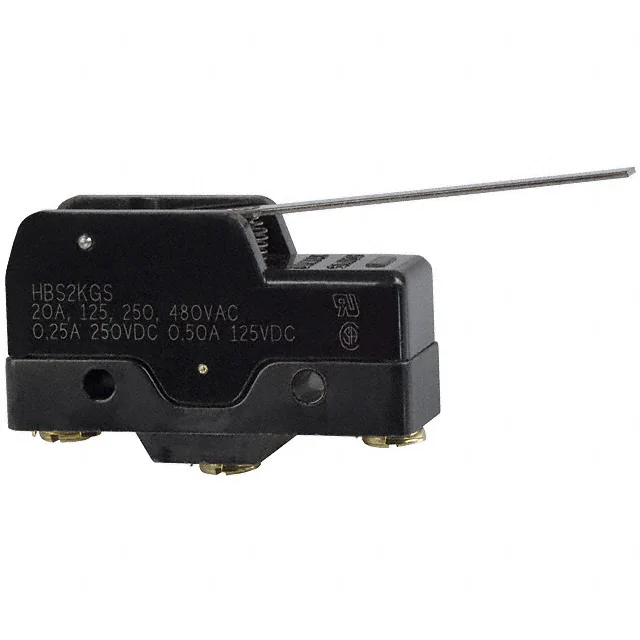

HBS2KGB4ST055CSWITCH SNAP ACTION SPDT 20A 125V |
3,651 | 26.43 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.720" (18.3mm) | 0.380" (9.65mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -55°C ~ 150°C |
|
|
D2VW-5L02A-2MSSWITCH SNAP ACT SPST-NC 5A 125V |
2,708 | 25.24 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
D2MC-01FLSWITCH SNAP ACT SPDT 0.5A 125V |
1,756 | 0.00 |
|
Datasheet |
D2MC | Bulk | Active | SPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Without | Chassis Mount | Quick Connect - 0.205" (5.2mm) | IP40 | - | 0.076gfm | 0.009gfm | - | 21° | 3° | 17° | -25°C ~ 80°C |
|
Z-15GW2255-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
3,603 | 30.93 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 200gf | 42gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -15°C ~ 80°C |
|
D4N-2A31SWITCH SNAP ACTION DPST 3A 240V |
1,499 | 44.12 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
|
D2VW-01-3MSWITCH SNP ACT SPST-NO 0.1A 125V |
2,556 | 31.90 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|

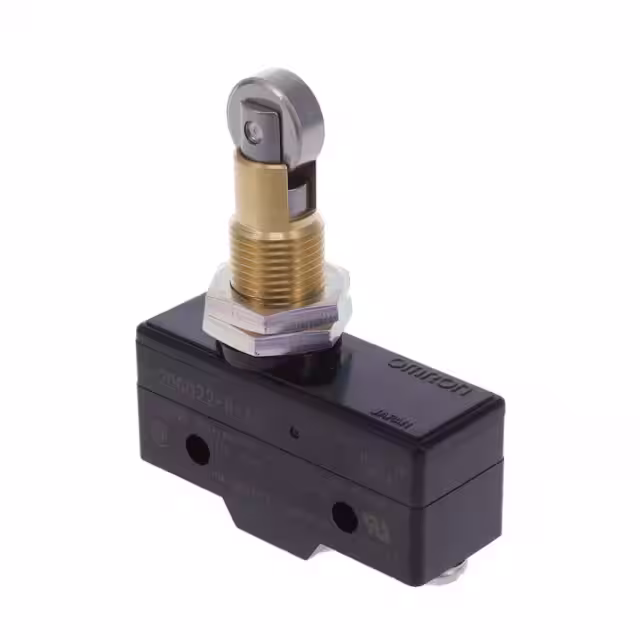

A-20GQ22-B-ASSWITCH SNAP ACTION SPDT 20A 125V |
4,067 | 56.16 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 630gf | 280gf | 1.313" (33.4mm) | 0.051" (1.3mm) | 0.014" (0.35mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
