Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V-166M-1C5SWITCH SNAP ACTION SPDT 16A 250V |
1,898 | 5.17 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
AEQ11510SWITCH SNAP ACTION SPDT 0.1A 30V |
2,773 | 5.86 |
|
Datasheet |
AEQ | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 122gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -25°C ~ 85°C |
|

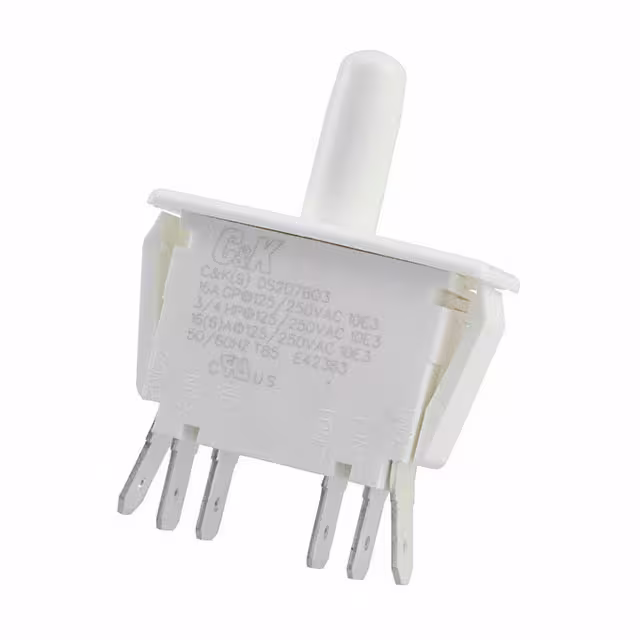

DS2D7BQ3SWITCH SNAP ACTION DPDT 16A 125V |
1,678 | 14.67 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
V7-1Z13E9-357SWITCH SNAP ACTION SPDT 25A 277V |
2,715 | 5.36 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 277 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | - | - | - | - | - | -40°C ~ 85°C |
|
83186057SWITCH SNAP ACTION SPDT 6A 250V |
2,530 | 4.58 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.512" (13.0mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
V-15G6K-1C25-KSWITCH SNAP ACTION SPDT 15A 250V |
1,369 | 5.66 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 80gf | 2.039gfm | 0.815" (20.7mm) | 0.236" (6.0mm) | 0.047" (1.2mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
V-15519-7A5SWITCH SNAP ACTION 15A 250V |
3,504 | 7.56 |
|
Datasheet |
V | Bulk | Obsolete | - | - | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
V7-9W1AE9-357SWITCH SNAP ACTION SPDT 15A 125V |
4,931 | 5.58 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 110gf | 6.000gf | 0.846" (21.5mm) | 0.172" (4.4mm) | 0.040" (1.0mm) | 0.094" (2.4mm) | -40°C ~ 177°C |
|
|
J-7YSWITCH SNAP ACTION SPDT 7A 250V |
1,144 | 0.00 |
|
Datasheet |
J | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | IP40 | - | 140gf | 28gf | 0.319" (8.1mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.004" (0.1mm) | -10°C ~ 80°C |
|

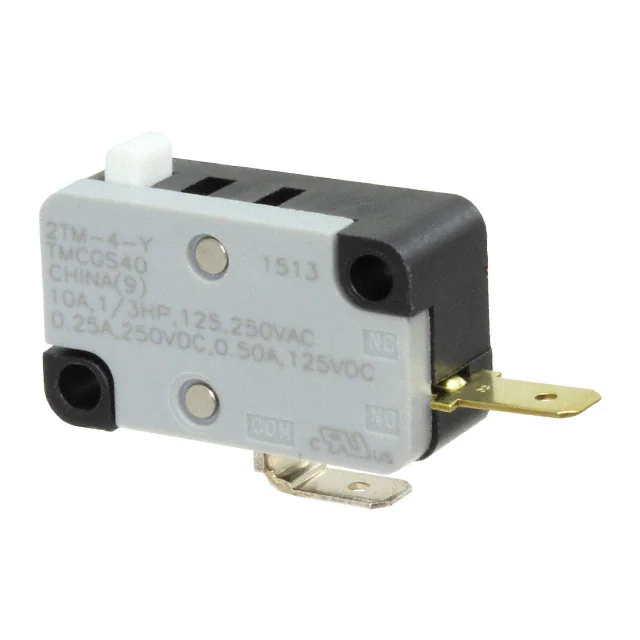

TMCGD6SP0040YSWITCH SNAP ACT SPST-NO 10A 125V |
4,925 | 7.42 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
V-10-1B5SWITCH SNAP ACTION SPDT 10A 250V |
4,451 | 4.90 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

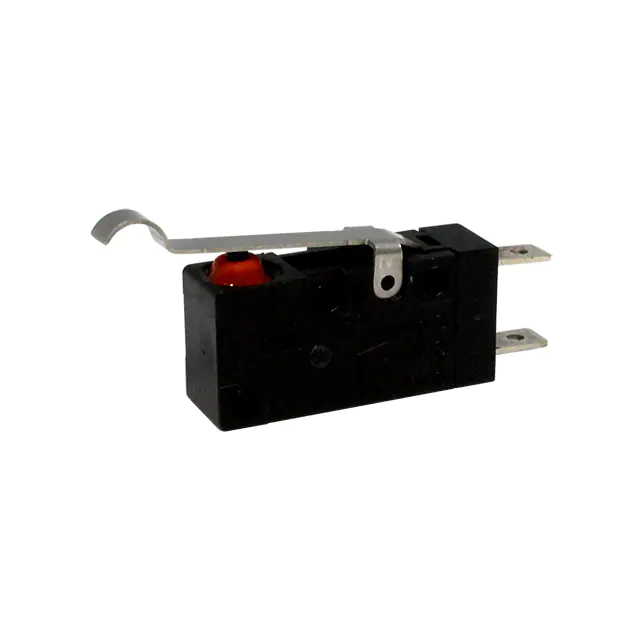

VM3SBQF1802L02SWITCH LIMIT SPST-NC 10A 125V |
1,233 | 6.19 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
X0229210SWITCH SNAP ACTION SPDT 6A 250V |
1,929 | 5.04 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
LCGGM1T20EYESWITCH SNAP ACT SPST-NO 10A 125V |
1,759 | 6.23 |
|
Datasheet |
LC | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | Epoxy Sealed Terminals | 26gf | 3.000gf | 0.340" (8.6mm) | 0.275" (7.0mm) | 0.065" (1.7mm) | 0.053" (1.35mm) | -25°C ~ 85°C |
|
TMCGD6SA1010CSWITCH SNAP ACTION SPDT 10A 125V |
1,055 | 5.89 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|

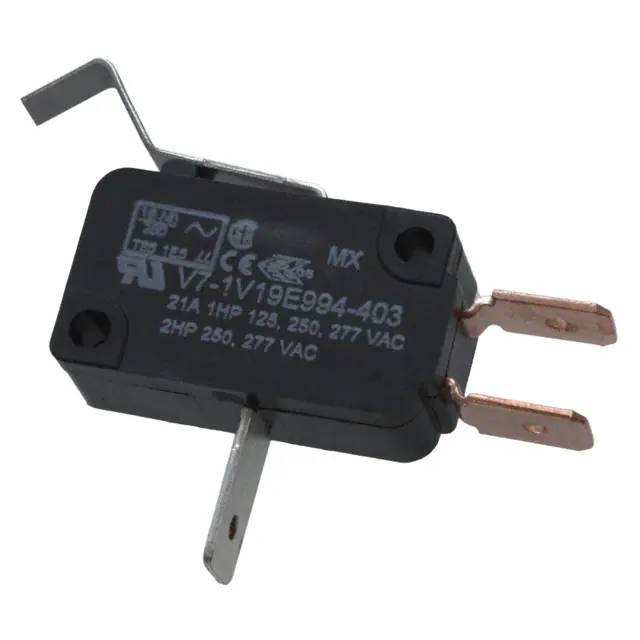

V7-1V19E994-403SWITCH SNAP ACTION SPDT 21A 125V |
2,675 | 8.73 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 21A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 118gf | 8.000gf | 0.850" (21.6mm) | 0.100" (2.5mm) | 0.022" (0.56mm) | 0.057" (1.45mm) | -40°C ~ 85°C |
|
TFS10ST2040CSWITCH SNAP ACTION SPDT 10A 125V |
3,494 | 7.22 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 90gf | 10gf | 0.591" (15.0mm) | 0.200" (5.1mm) | 0.045" (1.1mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
LCGGF5T25ECSWITCH SNAP ACTION SPDT 1A 125V |
1,214 | 7.12 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 19gf | 2.000gf | 0.340" (8.6mm) | 0.372" (9.45mm) | 0.090" (2.3mm) | 0.072" (1.83mm) | -25°C ~ 85°C |
|
VM3SAGF1802L00SWITCH LIMIT SPST-NO 10A 125V |
4,014 | 6.87 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 180gf | 100gf | 0.581" (14.75mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|

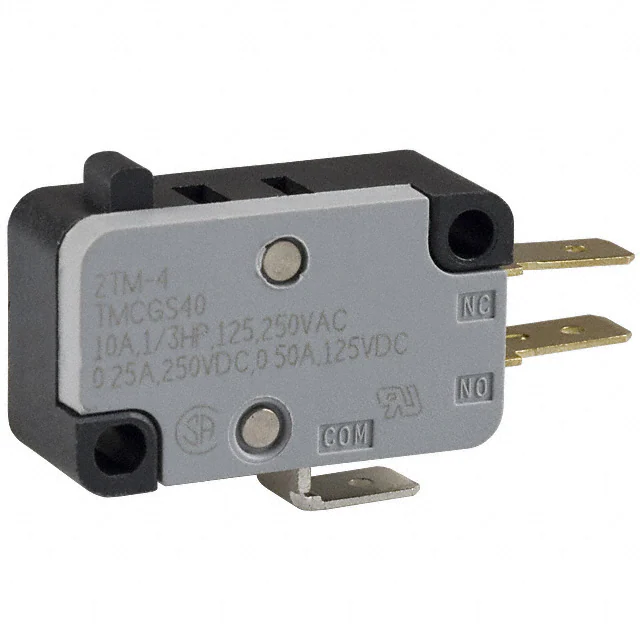

TMCGD6SP0040CSWITCH SNAP ACTION SPDT 10A 125V |
3,138 | 7.27 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
