Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4SX87-TSWITCH SNAP ACTION SPDT 7A 250V |
3,161 | 0.00 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 204°C |
|
|
21SM289-TSWITCH PLUNGER SPDT 5A SOLDER |
2,522 | 0.00 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

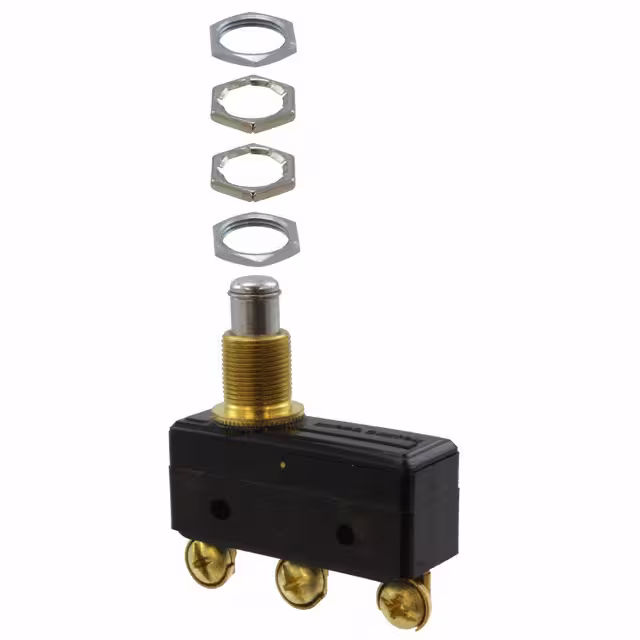

BZ-2RQ1-P4SWITCH SNAP ACTION SPDT 15A 125V |
3,288 | 26.95 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
311SM68-TSWITCH SNAP ACTION SPDT 1A 125V |
1,187 | 18.57 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|
|
BZ-2RW8225551TSWITCH SNAP ACTION SPDT 15A 125V |
1,955 | 24.39 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

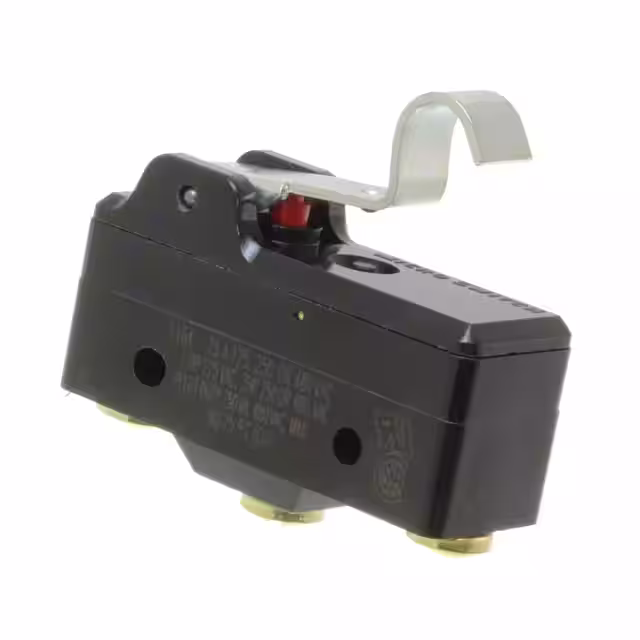

BE-2RV5-A2SWITCH SNAP ACTION SPDT 25A 125V |
2,912 | 30.90 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.172" (29.8mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.030" (0.76mm) | -55°C ~ 85°C |
|

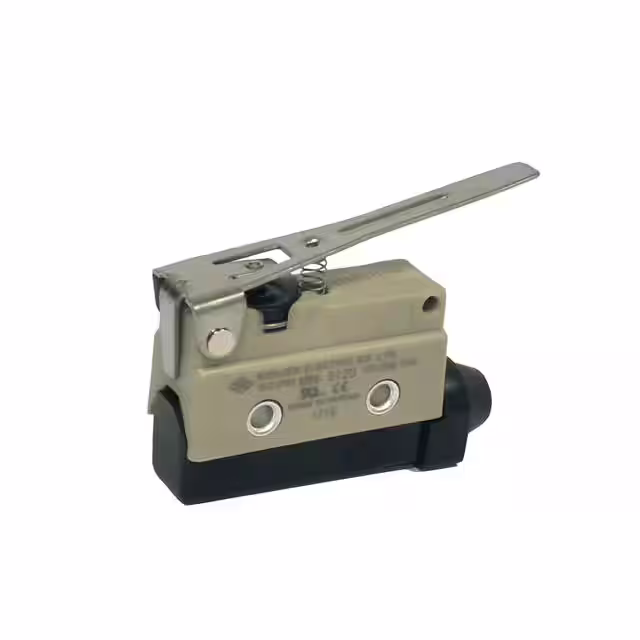

MN-5120SWITCH SNAP ACTION SPDT 10A 250V |
1,212 | 23.49 |
|
Datasheet |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 150gf | 40gf | - | 0.531" (13.5mm) | 0.125" (3.2mm) | 0.157" (4.0mm) | -10°C ~ 80°C |
|
|
91MCE16-P5BSWITCH SNAP ACTION DPST 6A 120V |
3,696 | 87.88 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|

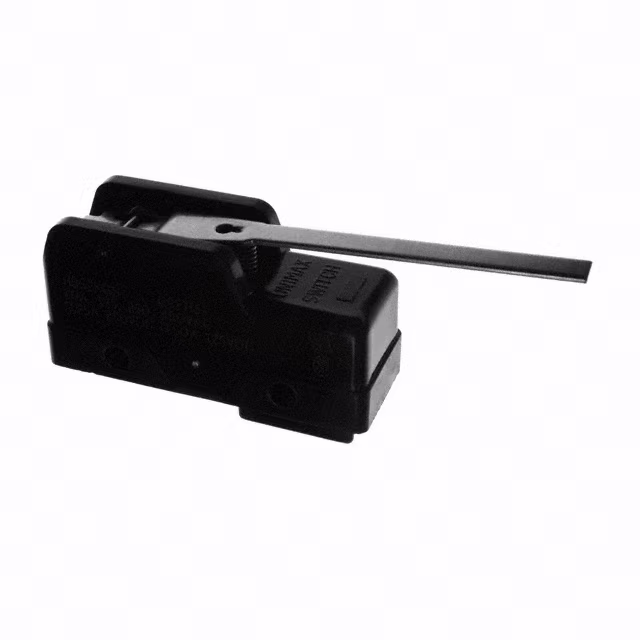

HBS2KGB4STS11CSWITCH SNAP ACTION SPDT 20A 125V |
3,468 | 30.45 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.720" (18.3mm) | 0.380" (9.65mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -55°C ~ 150°C |
|

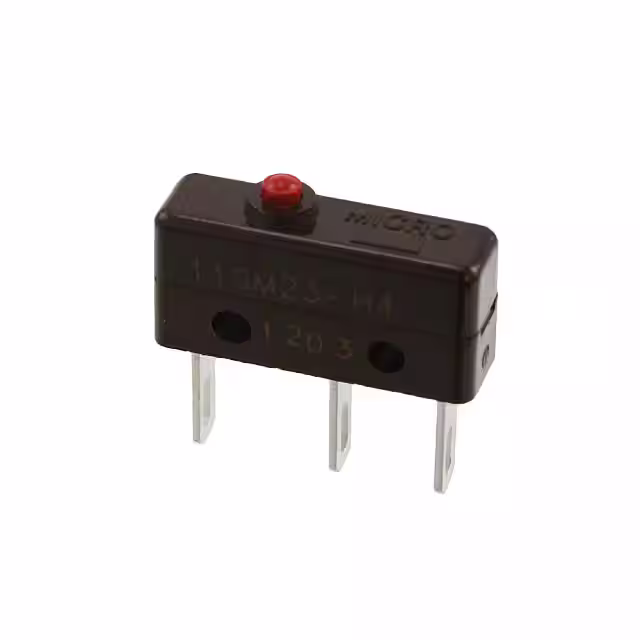

11SM23-H4SWITCH SNAP ACTION SPDT 1A 125V |
4,745 | 18.70 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BM-1RW842255511-A2SWITCH SNAP ACTION SPDT 22A 125V |
3,636 | 25.23 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | Splash Proof | - | 56gf | 7.087gf | 1.188" (30.2mm) | 0.110" (2.8mm) | 0.013" (0.33mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

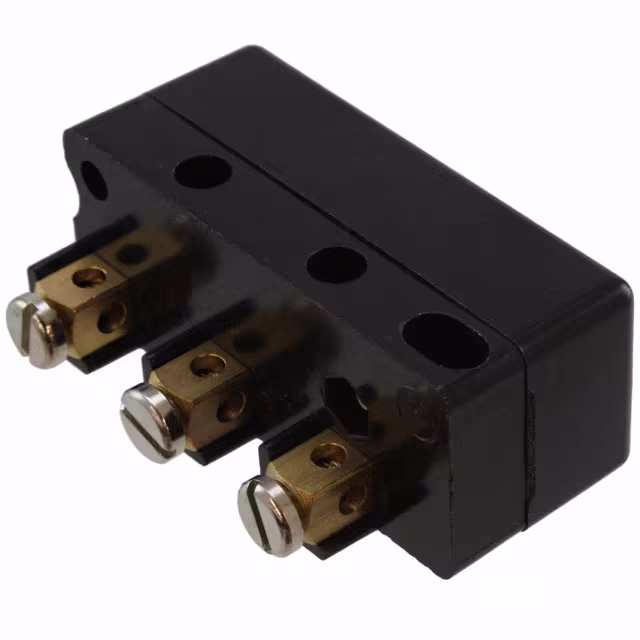

831180C1.0SWITCH SNAP ACTION 10A SCRW NONE |
4,749 | 22.54 |
|
Datasheet |
83118 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

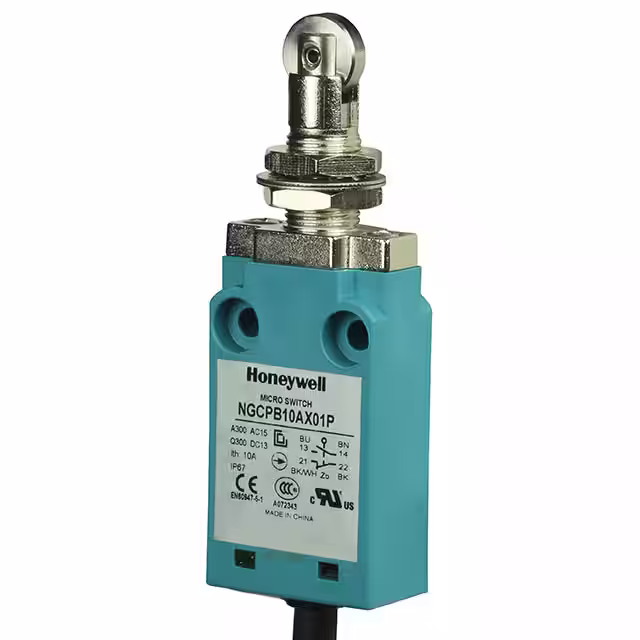

NGCPB10AX01PSWITCH SNAP ACTION DPST 6A 120V |
1,543 | 43.81 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
BZ-3RQ115TSWITCH SNAP ACTION SPDT 10A 125V |
1,892 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 397 ~ 567gf | 113gf | 0.859" (21.8mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2RQ128TSWITCH SNAP ACTION SPDT 15A 125V |
2,945 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BA-2RV301-PC2SWITCH SNAP ACTION SPDT 20A 125V |
2,818 | 29.43 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 42gf | 7.087gf | 0.750" (19.1mm) | - | 0.177" (4.5mm) | 0.224" (5.7mm) | -55°C ~ 85°C |
|
MN-5310SWITCH SNAP ACTION SPDT 10A 250V |
4,280 | 25.06 |
|
Datasheet |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 600gf | 100gf | - | 0.079" (2.00mm) | 0.031" (0.8mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
|
BZ-RQX66SWITCH SNAP ACTION SPDT 15A 125V |
4,258 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Reset Plunger on Bottom | 170 ~ 269gf | - | 1.500" (38.1mm) | 0.012" (0.3mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
BZ-2RS72-A2SWITCH SNAP ACTION SPDT 1A 125V |
3,834 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-RX122-A29SWITCH SNAP ACTION SPDT 15A 125V |
1,396 | 0.00 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 198 ~ 283gf | - | 0.625" (15.9mm) | 0.015" (0.4mm) | - | 0.005" (0.13mm) | -55°C ~ 85°C |
